This chapter describes the function of the operator panel on your printer. It is useful to
describe the Configuration Tool at this point as it provides the B411d, B411dn, the
equivalent of the menu control panel on the B431d, B431dn (See “Printer drivers” on
page 38 for installation of the Configuration Tool.)
B411
D
, B411
DN
O
PERATOR
PANEL

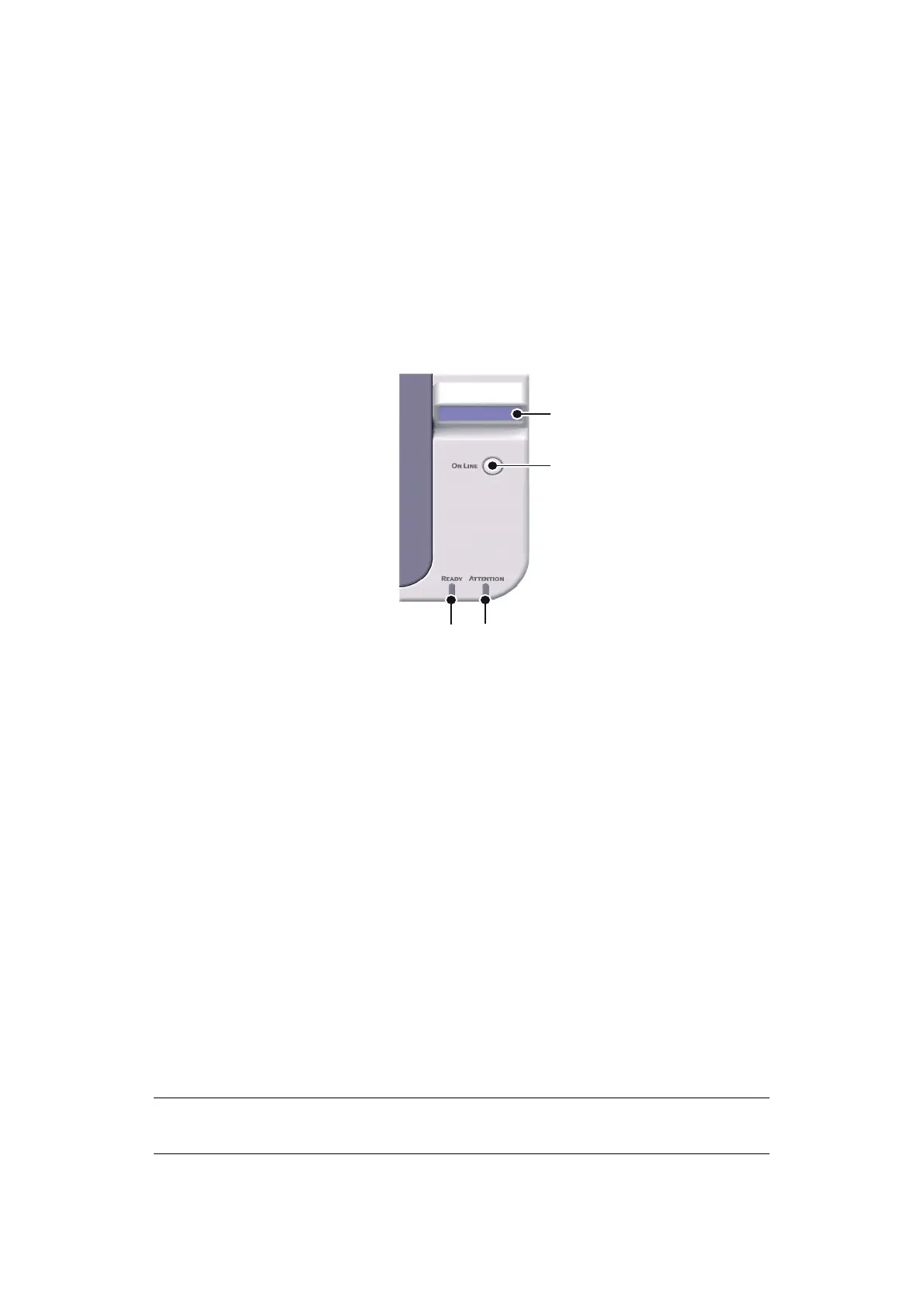

The B411d, B411dn operator panel consists of 2 indicating LEDs, an LCD (3) and an Online
(4) button. The LEDs indicate Ready (1) and Attention (2).
LED
INDICATORS
The LED indicators show the status of the printer and have three operating conditions as
follows:
> Indicator off
> Indicator on
> Flash
Both LED indicators come on momentarily when power is switched on using the main power
switch.
Ready LED (green)
> Indicator on - the printer is on-line and ready to receive data.
> Indicator off - the printer is off-line and cannot receive data.
Attention LED (red)
> Indicator on - this indicates a warning, (e.g. low toner).
> Indicator off - this indicates normal condition.
The meaning of the indicator LEDs when they flash (x) is summarised as follows:
NOTE
The table below is also applicable for the B431d, B431dn models.
3
4
1
2
