Olympus BX51WI User Manual

35
BX51WI
100XW* 1.00 1.50 0.34 1000X 0.83 0.22
60XW* 1.10 1.50 0.31 600X 0.7 0.37
OPTICAL CHARACTERISTICS
NOTE
Refer to the latest catalogue or consult your local Olympus
representative for the updated information on the eyepieces
and objectives that can be combined with this microscope.
Optical
character
Power
N.A.
W.D.
(mm)
Resolution
(μm)
Eyepiece
Remark
Objective
WHN10X (FN22)
Total
Power
Focal
Depth
(μm)
Actual
Field
MPLN
Plan Achromat
(FN 22)
5X 0.1 20.0 3.36 50X 98 4.4
Water immersion
impossible
UMPlanFLN-W
Water Immersion
Universal Plan Semi-
Apochromat
(FN 26.5)
10XW 0.30 3.50 1.10 100X 20 2.2
20XW 0.50 3.50 0.67 200X 6.1 1.1
LUMPlanFLN-W
Long-WD Water
Immersion Universal
Plan Semi-
Apochromat
(FN 26.5)
40XW* 0.80 3.30 0.42 400X 2.0 0.55
60XW* 1.00 2.00 0.34 600X 1.3 0.37
XLFluor
Low-Power
Fluorescence
(FN 22)
2X/340 0.14 20.0 2.40 20X 132 11
4X/340 0.28 28.4 1..20 40X 33.0 5.5
Water immersion
impossible
Water immersion
impossible
After using a water immersed objective, be sure to clean the extremity using neutral detergent. If the extremity is
left without cleaning, contamination remains and the objective performance will deteriorate.
UIS2
series
the performance data engraved on the objectives.
UIS
series
LUMFLN-W
Long-WD Water
Immersion Universal
Semi-Apochromat
(FN 26.5)
LUMPlanFl-W
Long-WD Water
Immersion Universal
Plan Semi-
Apochromat
(FN 26.5)
*Usable with IR
900 nm.
Correction
collar
NOTE
UIS series objectives not listed here can also be combined with this microscope.

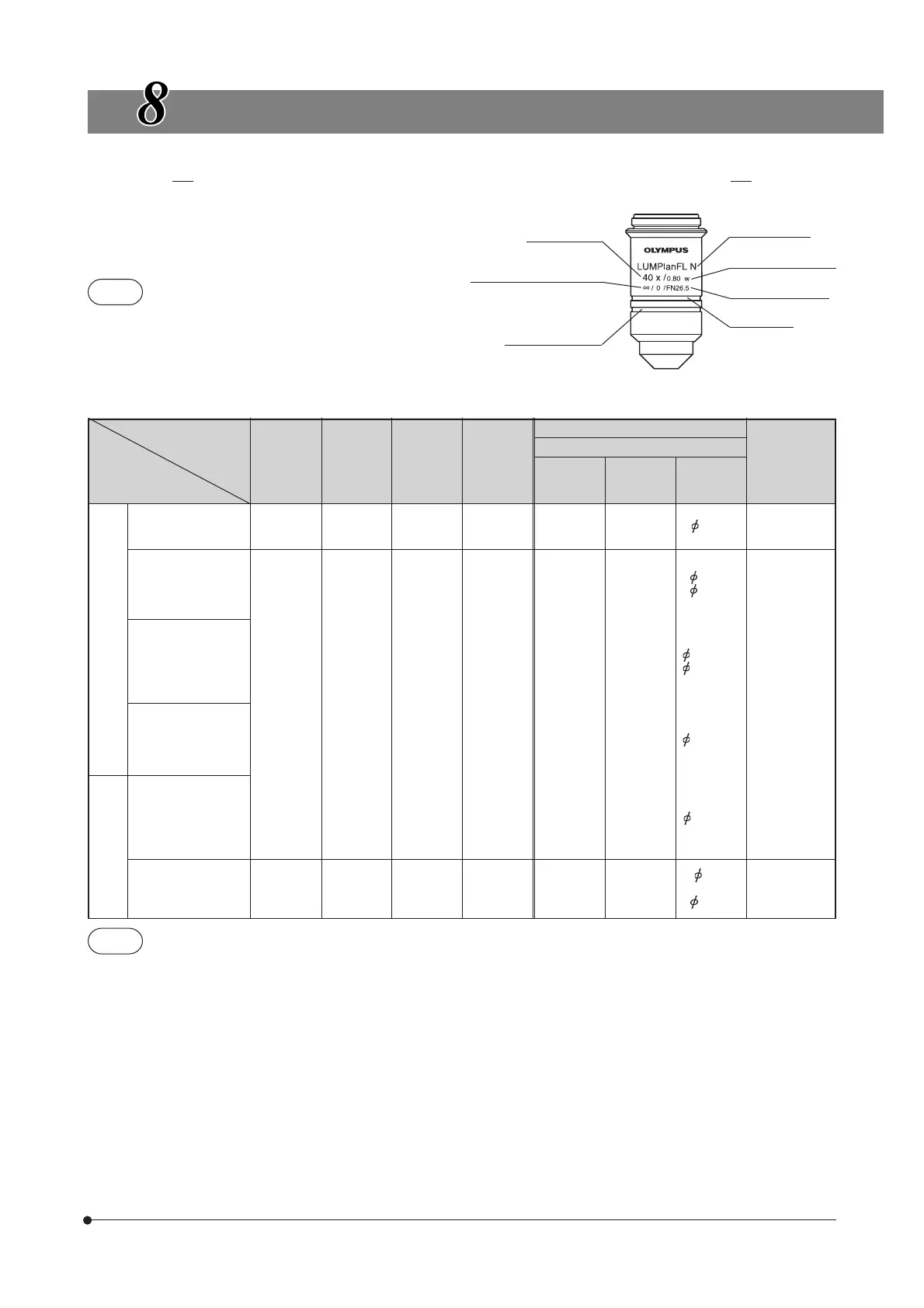

The following table shows the optical characteristics of combinations of eyepieces and objectives. The figure on the right shows
Magnification
Mechanical tube length
Water immersion
indicator (white)
Objective type
Number of aperture
Color band
FN (Field number)
