CH10/CH20 C. DISASSEMBLY AND ASSEMBLY PROCEDURES
C-12

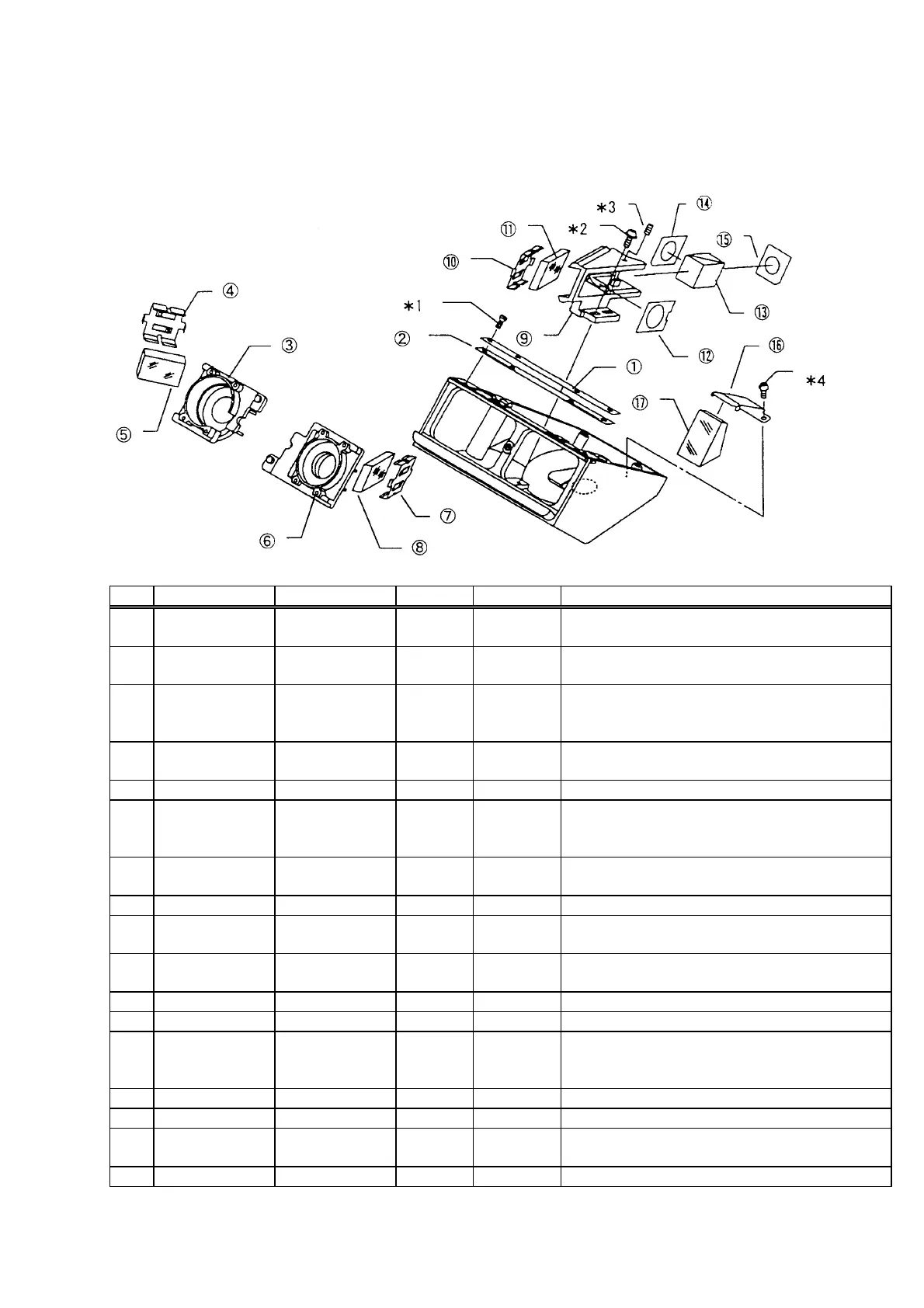

4-2 Prism ass’y and mirror ass’y
No.
Parts name
Screw
Grease
Adhesive
Remarks
•
DOVETAIL
PLATE
CSK3X5SA
(*1) 4 pcs.
‚
DOVETAIL
SPRING
Assemble the bent side of the dovetail spring
inwards.
ƒ
MIRROR
FRAME
OT2008
Apply grease on the dovetail sliding surface.
Working force: 3.9 - 9.8N
{400 - 1000g}
„
MIRROR
SPRING
…
MIRROR
†
MIRROR
FRAME
OT2008
Apply grease on the dovetail sliding surface.
Working force: 3.9 - 9.8N
{400 - 1000g}
‡
MIRROR
SPRING
ˆ
MIRROR
‰
MIRROR
FRAME
CUKK3X6SA
(*2) 2 pcs.
Left/right optical axis adjustment (See Repair
procedure, D-4.)
±
10
MIRROR
SPRING
±
11
MIRROR
±
12
DIAPHRAGM
±
13
PRISM ASS’Y
AHU3X4SA
(*3)
OT1873
Fill the clearance of prism fitting part with
adhesive. Apply a small amount of adhesive on
the screw.
±
14
DIAPHRAGM
±
15
DIAPHRAGM
±
16
PRISM
SPRING
CUK3X4SA
(*4) 2 pcs.
±
17
PRISM
Assemble the prism evenly on both sides.
