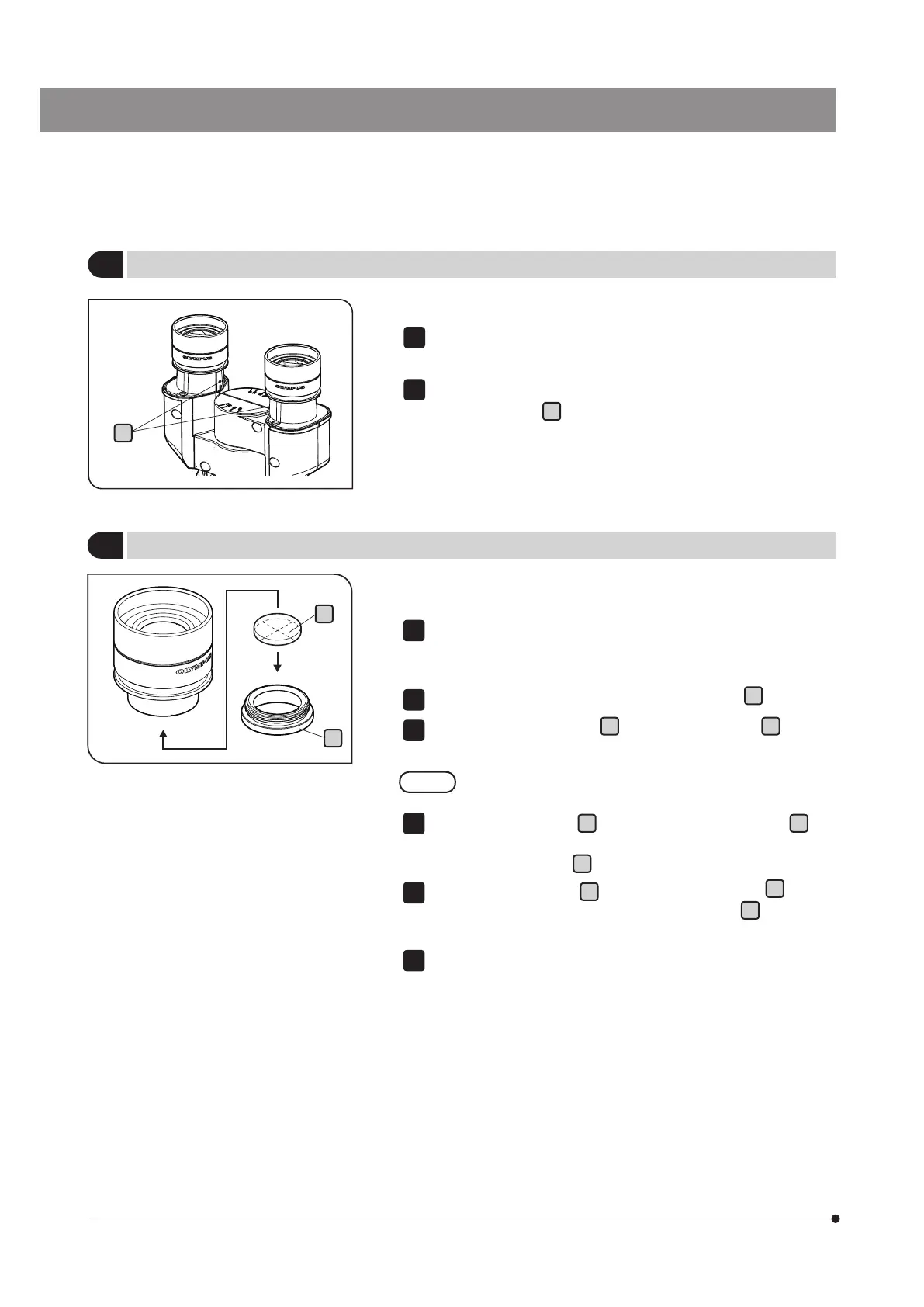

Eyepieces WHSZ15X-H
} The standard 10X eyepieces are clamped using screws.
Using a small flat-blade screwdriver, loosen the clamping screws a of
10X eyepieces and remove eyepieces.
Insert the WHSZ15 X-H into the eyepiece sleeves and tighten the
clamping screws
a
.
1
2
a
3
Mounting the eyepiece micrometer (optional)
} If
you are using 10 X eyepiece, please purchase the eyepiece
micrometer with diameter 24 mm diameter and 1.5 mm thickness.
Loosen the clamping screw of the eyepiece with the small-size flat-
blade screwdriver, and remove the right eyepiece to which the eyepiece
micrometer will be attached.
Hold the eyepiece frame and loosen the reticle holder
a
to remove it.
Place the micrometer disk
a
into the reticle holder
b
with the
indications facing down.
Be careful not to leave dirt on the micrometer disk, as it
will be noticeable during observation.
Screw the reticle holder
b
containing the micrometer disk
a
into
the bottom of an eyepiece. Be sure to screw in all the way by hooking
your nail into the notch
c
on the holder at the end.
Screw the reticle holder
a
containing the micrometer
b
into the
bottom of an eyepiece.
Screw in the reticle holder
a
completely
until it touches the end.
Attach the eyepieces to the observation tube, and tighten the clamping
screws.
1
2
3
3
4
5
a
b
To Next Page
