C. Incident Illuminator VM·LSG

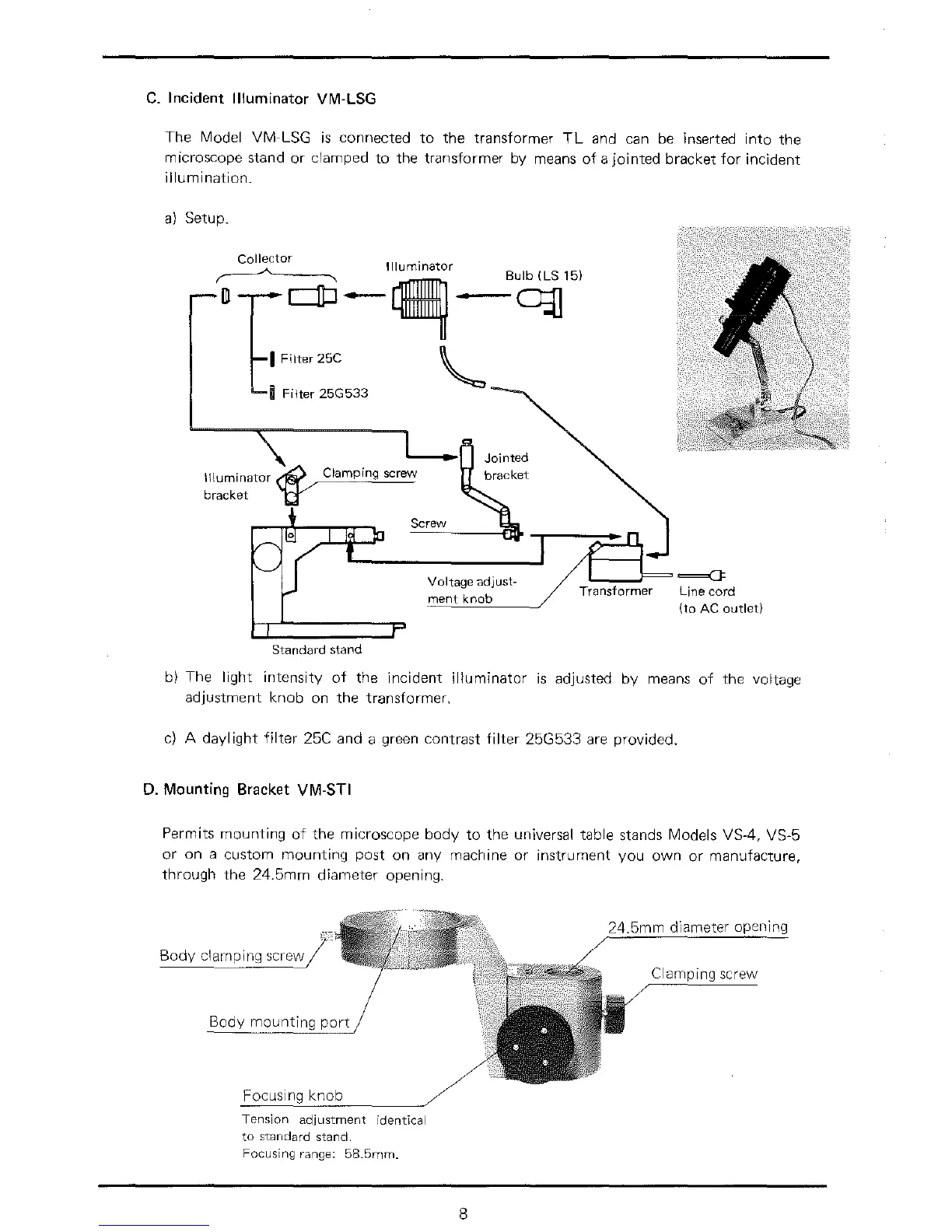

The Model VM-LSG is connected to the transformer TL and can be inserted into the
microscope stand or clamped to the transformer by means of a jointed bracket for incident
illumination.
a) Setup.
~ Illuminator
Bulb ILS 15)
CJ;l]
\ L
Illuminator~~
bracket ~
Jointed
bracket
Standard stand
Screw
Voltage adjust-
ment knob
Tr~a-n"'st'"o-rm..Je~r~ ~d
(to AC outlet}
b) The light intensity of the incident il!uminator is adjusted by means of the voltage
adjustment knob on the transformer.
c) A daylight filter 25C and a green contrast filter 25G533 are provided.
D.
Mounting Bracket VM-STI
Permits mounting of the microscope body to the universal table stands Models VS-4, VS-5
or on a custom mounting post on any machine or instrument you own or manufacture,
through the 24.5mm diameter opening.
Focusi knob
Tension adjustment identical
to standard stand.
Focusing range: 58.5mm.
m diameter
screw
8
