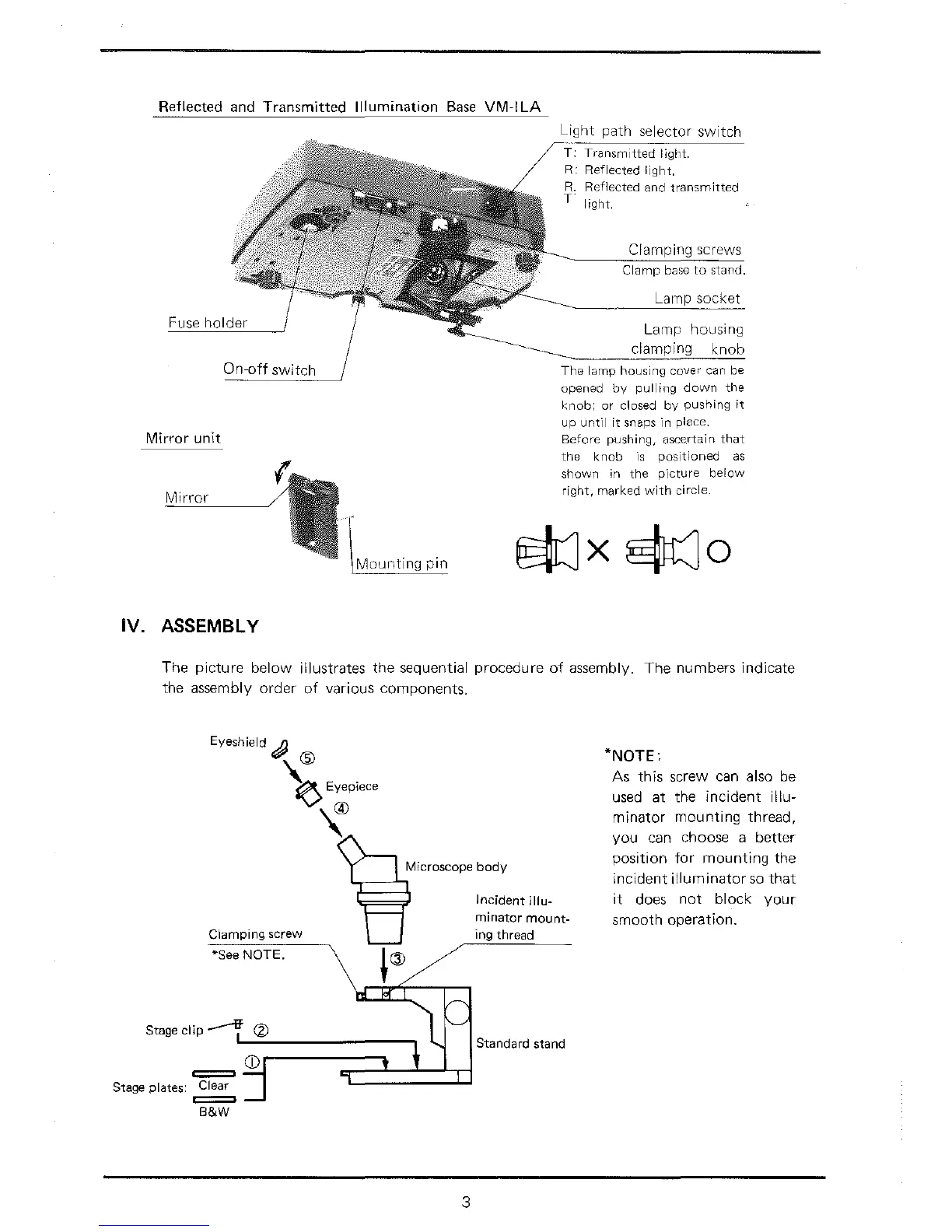

Reflected and Transmitted Illumination Base VM-ILA
Fuse holder
On-off switch
Mirror unit
Mounting pin
IV. ASSEMBLY
Light path selector switch
T: Transmitted light.
R: Reflected light.
R. Reflected and transmitted
T light.
Clamping screws
Clamp base to stand.
socket
Lamp housing
The lamp housing cover can be
opened by pulling down the
knob; or closed by pushing it
up until it
snaps in place.
Before pushing,
ascertain that
the knob is positioned as
shown in the picture below
right, marked with circle.
§jjx~o
The picture below illustrates the sequential procedure of assembly. The numbers indicate
the
assembly order of various components.
Eyeshield J)
'\®
~Eyepiece
~
Microscope body
Clamping screw
*See NOTE.
Stage clip _.-if Cl)
L.....:::-------,
=
Stage plates: Clear
=
B&W
3
Incident illu-
minator mount-
ing thread
Standard stand
*NOTE:
As this screw can also be
used at the incident illu-
minator mounting thread,
you can choose a better
position
for mounting the
incident
illuminator so that
it does not block your
smooth operation.
