Ill. IDENTIFICATION AND FUNCTION OF VARIOUS COMPONENTS

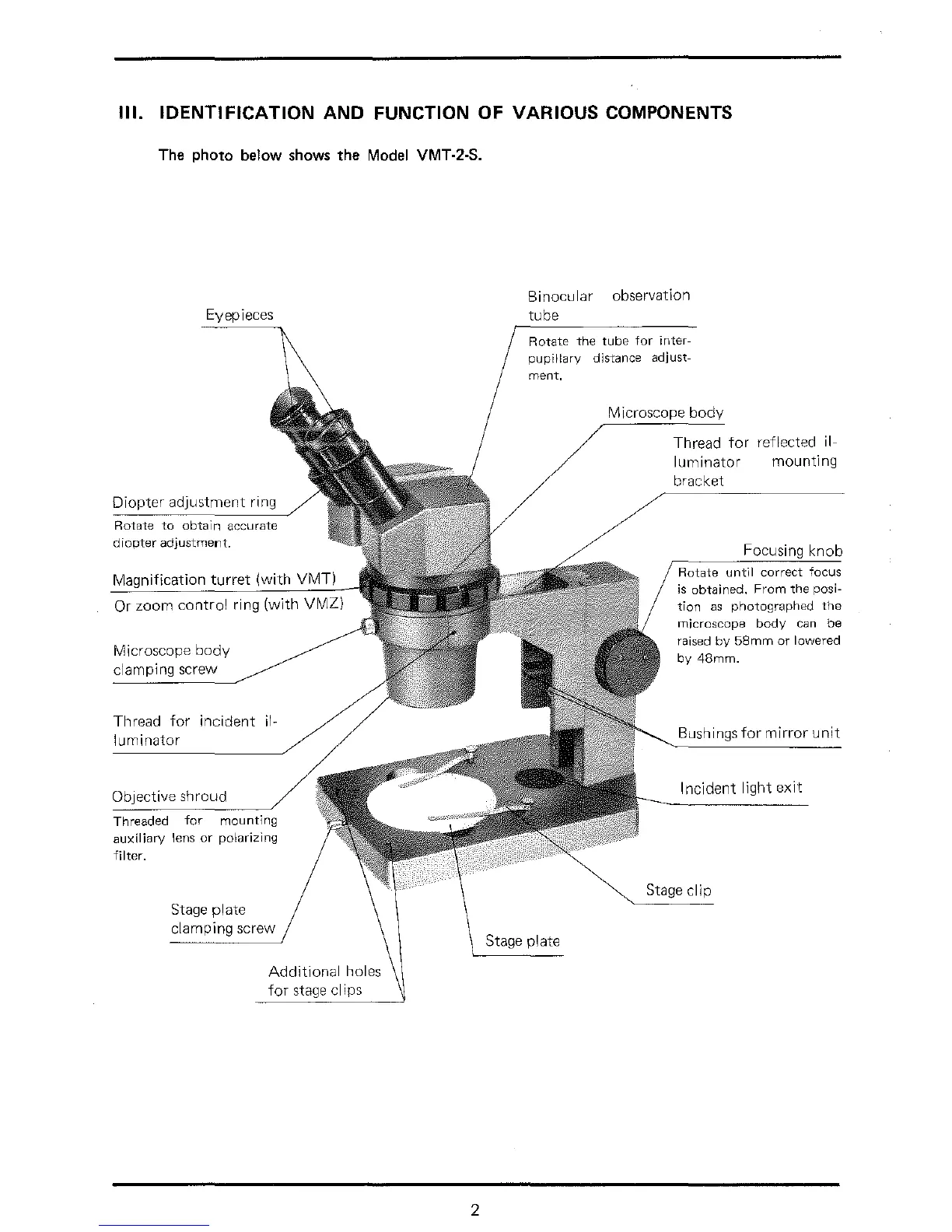

The photo below shows the Model VMT·2·S.
Eyepieces
Oiopter adjustment ring
Rotate to obtain accurate
diopter adjustment.
ification turret (with VMT)
Microscope body
clamping screw
Thread
for incident il-
luminator
Objective shroud
Threaded for mounting
auxiliary lens or polarizing
filter.
Stage plate
clamping screw
Additional holes
for stage clips
2
Binocular observation
tube
Rotate the tube for inter-
pupillary distance adjust-
ment.
Stage plate
Microscope
Thread for reflected il-
luminator
bracket
mounting
knob
Rotate until correct focus
is obtained. From the posi-
tion as photographed the
microscope body can be
raised by 58mm or lowered
by 48mm.
Bushings for mirror unit
Incident light exit
Stage clip
