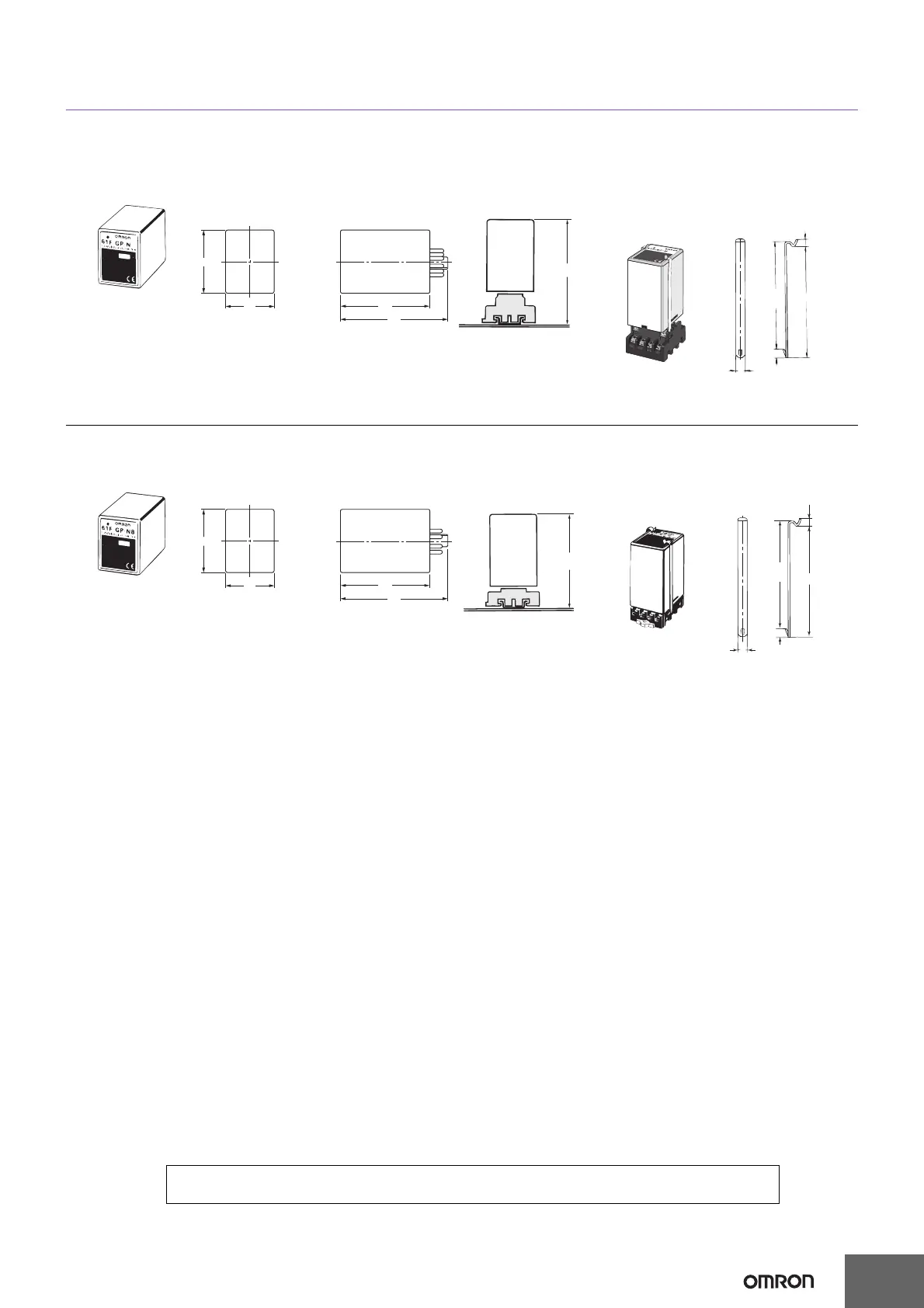

Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Safety Precautions
Refer to Safety Precautions for All Level Controllers.
49.4
38
70
84
61F-GP-N
PF113A
101
61F-GP-N, -NT, -NL, -NH, -ND, -NR, -N -TDL, -N14, -N15, -NH3
When mounting a Display Unit to a PF113A
Surface-mounting Socket, secure the PF113A with
the groove facing toward the bottom and then
connect the 61F-GP-N the PFC-N8 accessory.
PFC-N8
Note: PFC-N8 Mounting Bracket (provided with
the Level Controller)
t = 0.3
4.5
83
4
6
Approx.
80
6285& (9$&
32:(5
9$0D[
&2168037I21
)/2$7/(66/(9(/6:I7&+
FREQ.:50/60 Hz
SECONDARY
:8VAC
VOLTA*E
38
70
84
49.4
61F-GP-N8
PF083A
91
61F-GP-N8, -N8L, -N8H, -N8HY, -N8D, -N8R
Use a PFC-N8 Mounting Bracket to mount the
Level Controller to a PF083A Rail-mounted
Socket.
PFC-N8
Note: PFC-N8 Mounting Bracket (provided with
the Level Controller)
83
4
4.5
t=0.3
6
Approx.
80
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
