Omron C200HE-CPU42 Replacement Guide

4

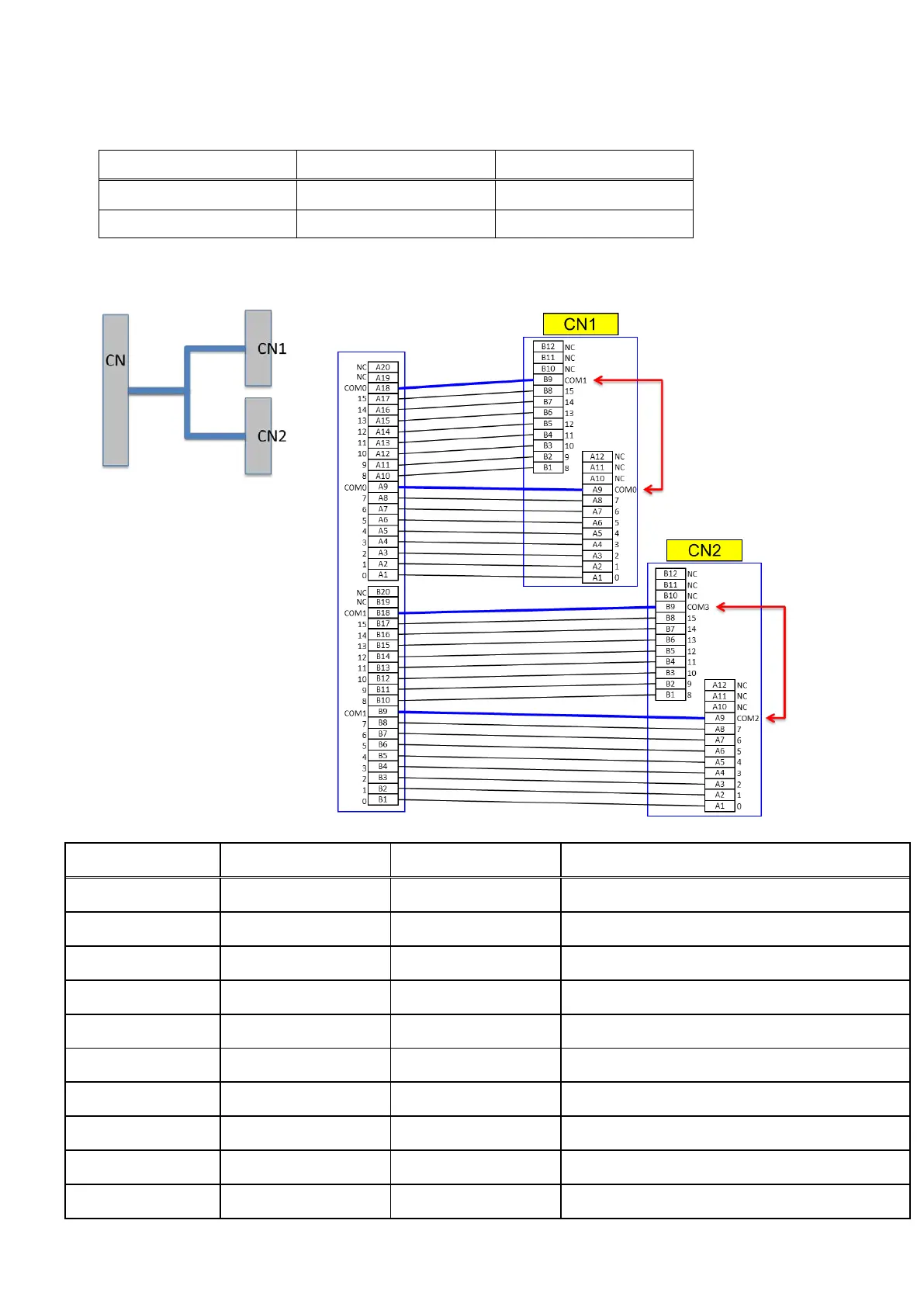

• Replacement of C200H-ID215 and C200H-OD215 using Conversion Cables
The same connecting cables that were connected to C200H-ID215 and C200H-OD215 can be used to replace
them with CJ1W-ID231 and CJ1W-OD231.
C200H-series Unit
CJ-series Unit
Conversion Cable
C200H-ID215
CJ1W-ID231
XW2Z-S010
C200H-OD215
CJ1W-OD231
XW2Z-S011
XW2Z-S010
CJ1W-ID231 C200H-ID215
Reused cable
C200H-ID215 CJ1W-ID231 Remarks
Rated input voltage 24 VDC 24 VDC
Operating input voltage 20.4 to 26.4 VDC 20.4 to 26.4 VDC
Input impedance 5.6 kΩ 5.6 kΩ
Make sure that the connected device operates
correctly.
Input current 4.1 mA typical (at 24 VDC) 4.1 mA typical (at 24 VDC)
Make sure that the connected device operates
correctly.
ON voltage 14.4 VDC min. 19 VDC min.
Make sure that the connected device operates
correctly.
OFF voltage 5 VDC max. 5 VDC max.
ON response time
2.5 ms max./15 ms max.
(switchable)
8 ms max. (switchable) Can be set to between 0 and 32 ms in the PLC Setup.
OFF response time
2.5 ms max./15 ms max.
(switchable)
8 ms max. (switchable) Can be set to between 0 and 32 ms in the PLC Setup.
No. of circuits
8 points/common x
4 circuits (32 inputs)
16 points/common x
2 circuits (32 inputs)
The number of circuits decreased from 4 to 2.
Rewire if separate power supplies are used.
High-speed inputs
8 points (when pin 2 of the
DIP switch is ON)
Not supported Use CJ1W-IDP01 for high-speed inputs.
* CN1 COM0 and COM1 and
CN2 COM2 and COM3 are
internally connected in the
CJ-series Unit. When separate
power supplies were used,
rewire to use one common
power supply.
