6. Writing data to CJ2
Transfer the converted and modified program, PLC settings, and Data Memory to CJ2.
Required items
Support Software
(PC)
CX-One
CXONE-AL□□C-V□/ AL□□D-V□
(CX-Programmer)
Connecting cable
Commercially available USB cable
USB 2.0 (or 1.1) cable
(A connector – B connector) 5.0 m max.

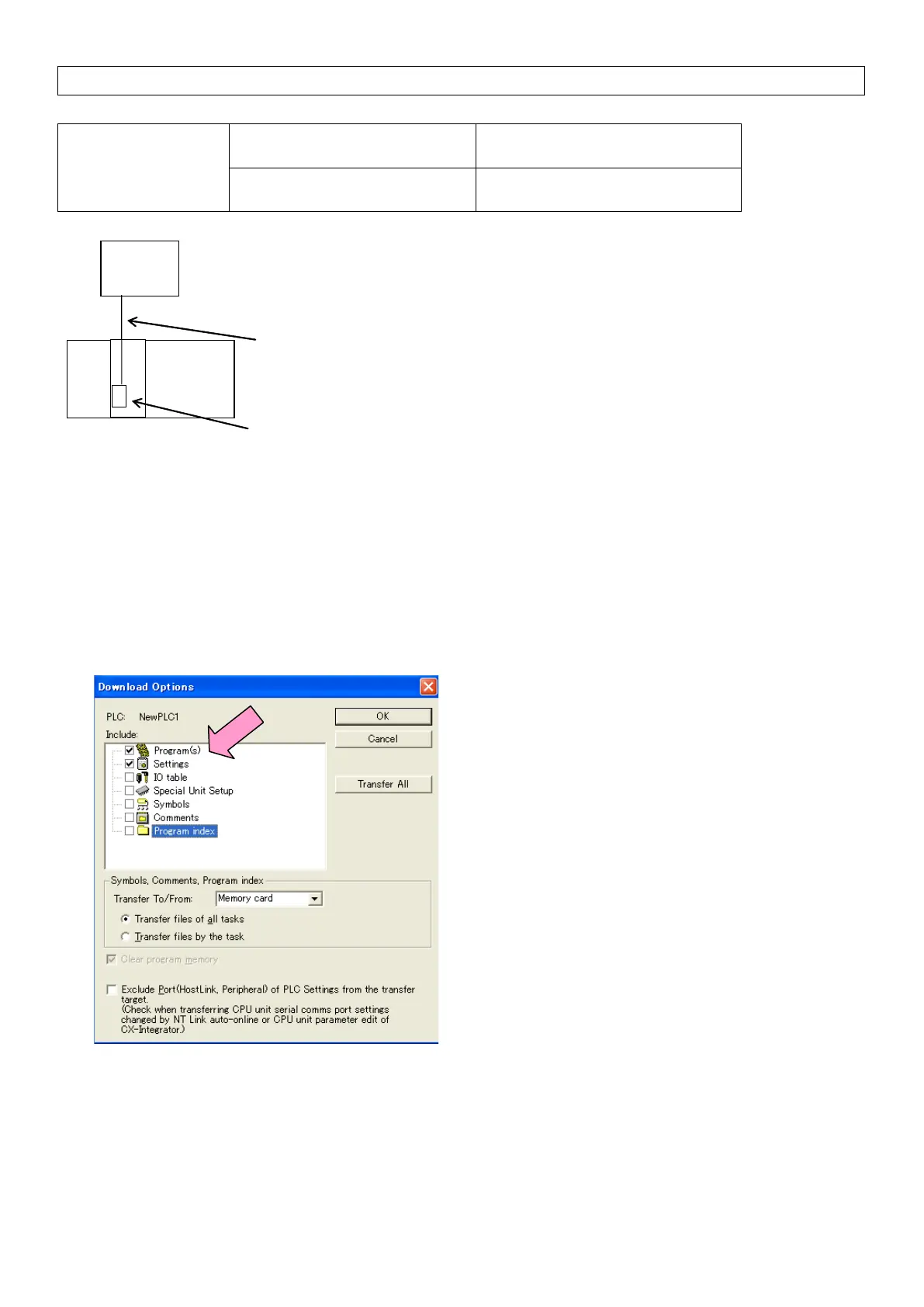

(1) Connect CJ2 with a PC.
(2) Start the CX-Programmer and open the converted program file for CJ2.
(3) Go online with CJ2.
(4) Transfer the ladder program and PLC settings to CJ2. (Select Transfer - To PLC from the PLC Menu.)
Select the Program(s) and Settings Check Boxes. Click the OK Button to start transfer.
CJ2
PC
CX
-
Programmer
Connecting cable
Commercially available USB cable
Per
ipheral (USB) port on
CPU Unit
