Omron C200HE-CPU42 Replacement Guide

11
4. Reading data from C200HX/HG/HE
Load the ladder program, PLC settings, and Data Memory from C200HX/HG/HE using the CX-Programmer.
Required items
Support software
(PC)
CX-One
(CXONE-AL□□C-V□□, CXONE-AL□□D-V□)
or
CX-Programmer (WS02-CXPC□-V□)
Connecting Cable
CQM1-CIF02
C200HX/HG/HE
PC
CX-Programmer
Connoting Cable
CQM1-CIF02
Peripheral port

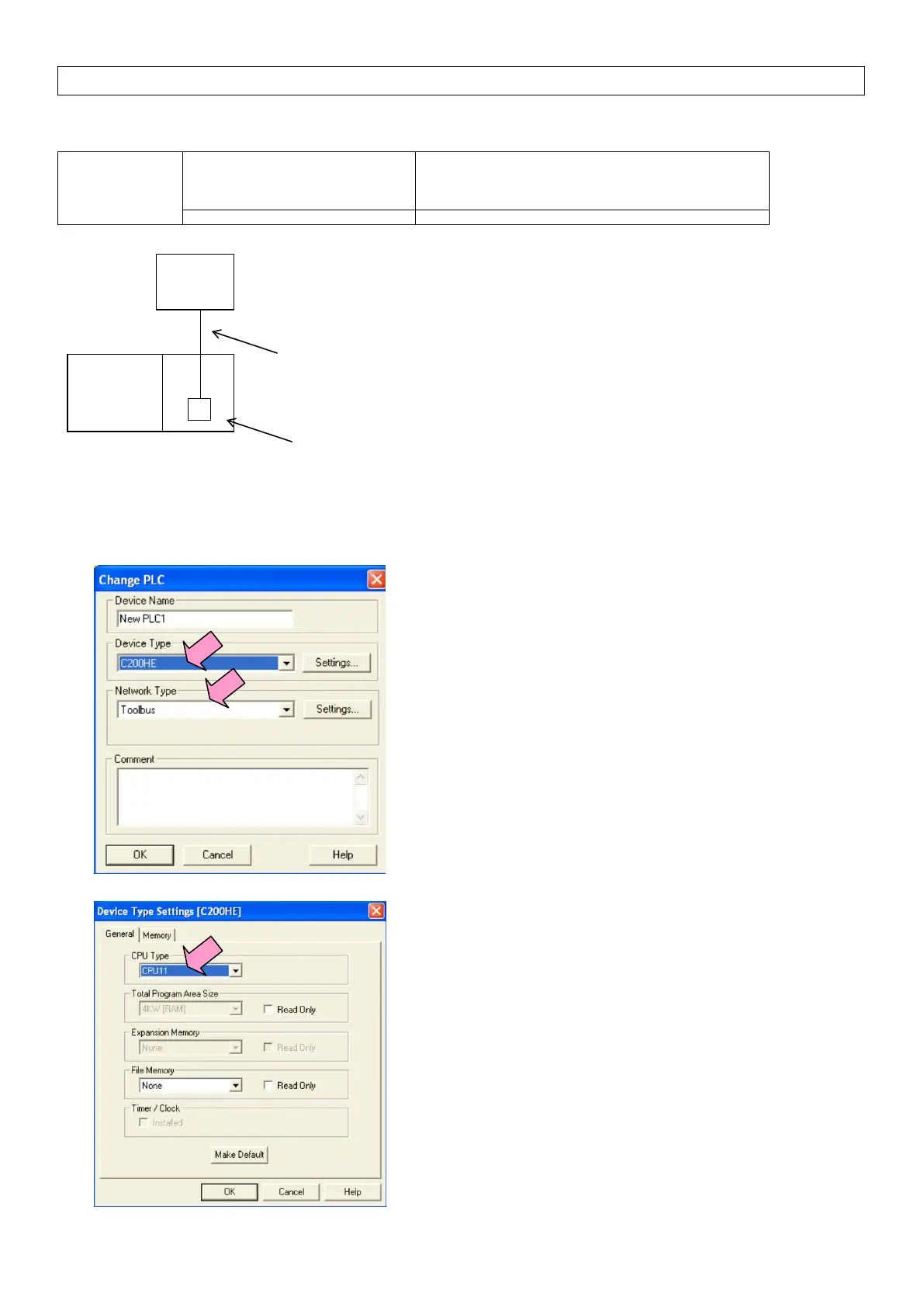

(1) Connect C200HX/HG/HE and a PC using a connecting cable.
(2) Start up the CX-Programmer. (Select All Program - OMRON - CX-One - CX-Programmer - CX-Programmer
from the Windows Start Menu.)
(3) Select C200HX/HG/HE for the Device Type. (Select File – New.)
