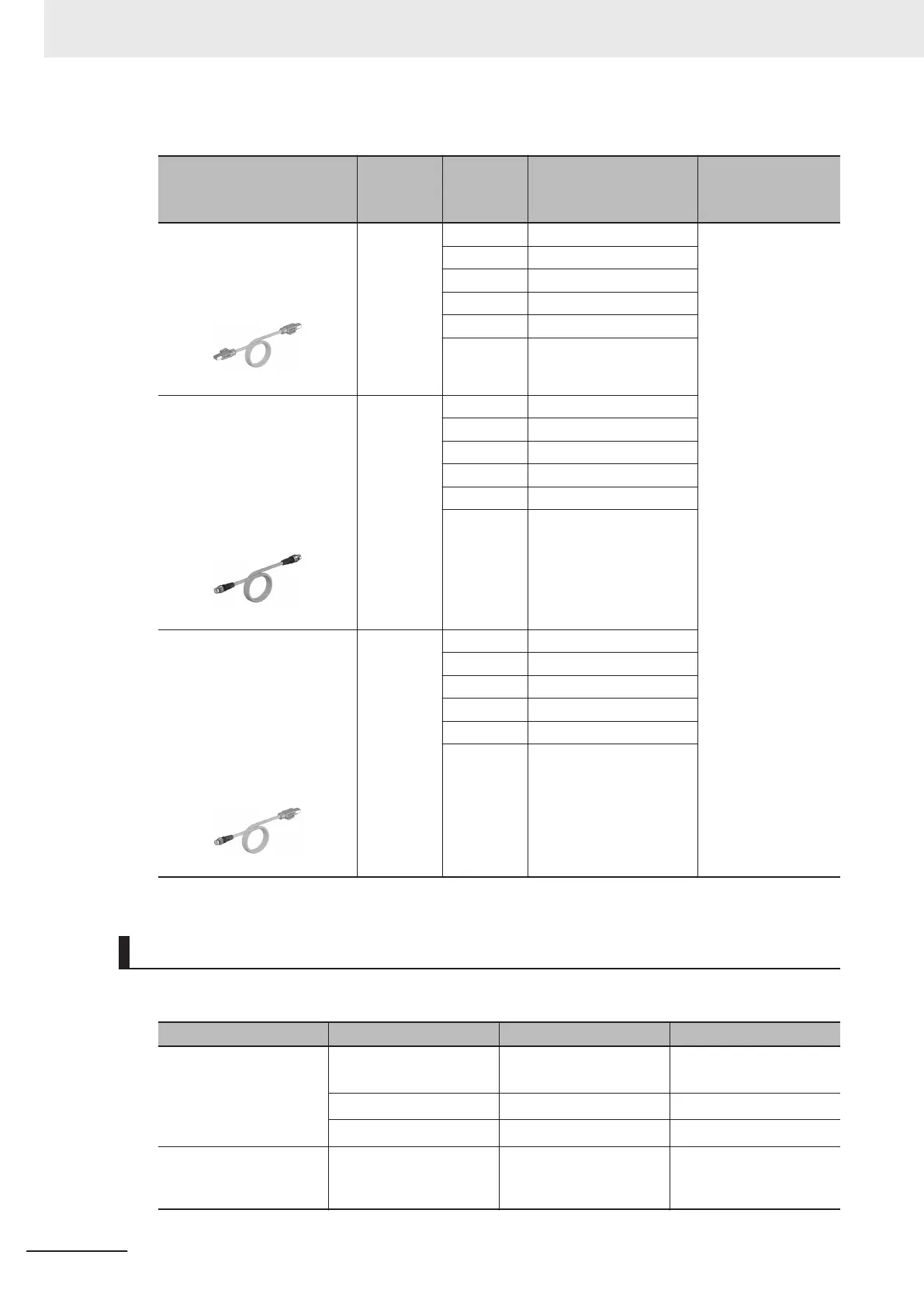

Sizes and Conductor Pairs: AWG 22 × 2 Pairs
Product name
Manufac-
turer
Cable
length (m)
*1
Model
Contact informa-
tion
Cable with Connectors on
Both Ends
(RJ45/RJ45)
Rugged RJ45 connector type
OMRON
Corpora-
tion
0.3 XS5W-T421-AMD-K OMRON Customer
Service Center
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
Cable with Plugs on Both
Ends
(M12/M12)
Shield Strengthening Con-
nector cable
M12/Smartclick connector
type
OMRON
Corpora-
tion
0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Plugs on Both
Ends
(M12/RJ45)
Shield Strengthening Con-
nector cable
M12/Smartclick connector
type
Rugged RJ45 connector type
OMRON
Corpora-
tion
0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS
*1. For the latest list of the Cables, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
Cables and Connectors

Sizes and Conductor Pairs: AWG 24 × 4 Pairs
Product name Manufacturer Model Contact information
Cables Hitachi Metals, Ltd. NETSTAR-C5E SAB
0.5 × 4P
*1
Planning Department,
Kanetsu Co., Ltd.
Kuramo Electric Co., Ltd.
KETH-SB
*1
Kuramo Electric Co., Ltd.
JMACS Japan Co., Ltd.
IETP-SB
*1
JMACS Japan Co., Ltd.
RJ45 Connectors Panduit Corporation
MPS588
*1
Panduit Corporation US
Headquarters
Osaka Branch Of
fice
*1. We recommend that you use combinations of the above cables and connectors.
4 Mounting and Wiring
4-14
CK3E-series Programmable Multi-Axis Controller User’s Manual Hardware (I610)
