E5@C-800
54
Operation

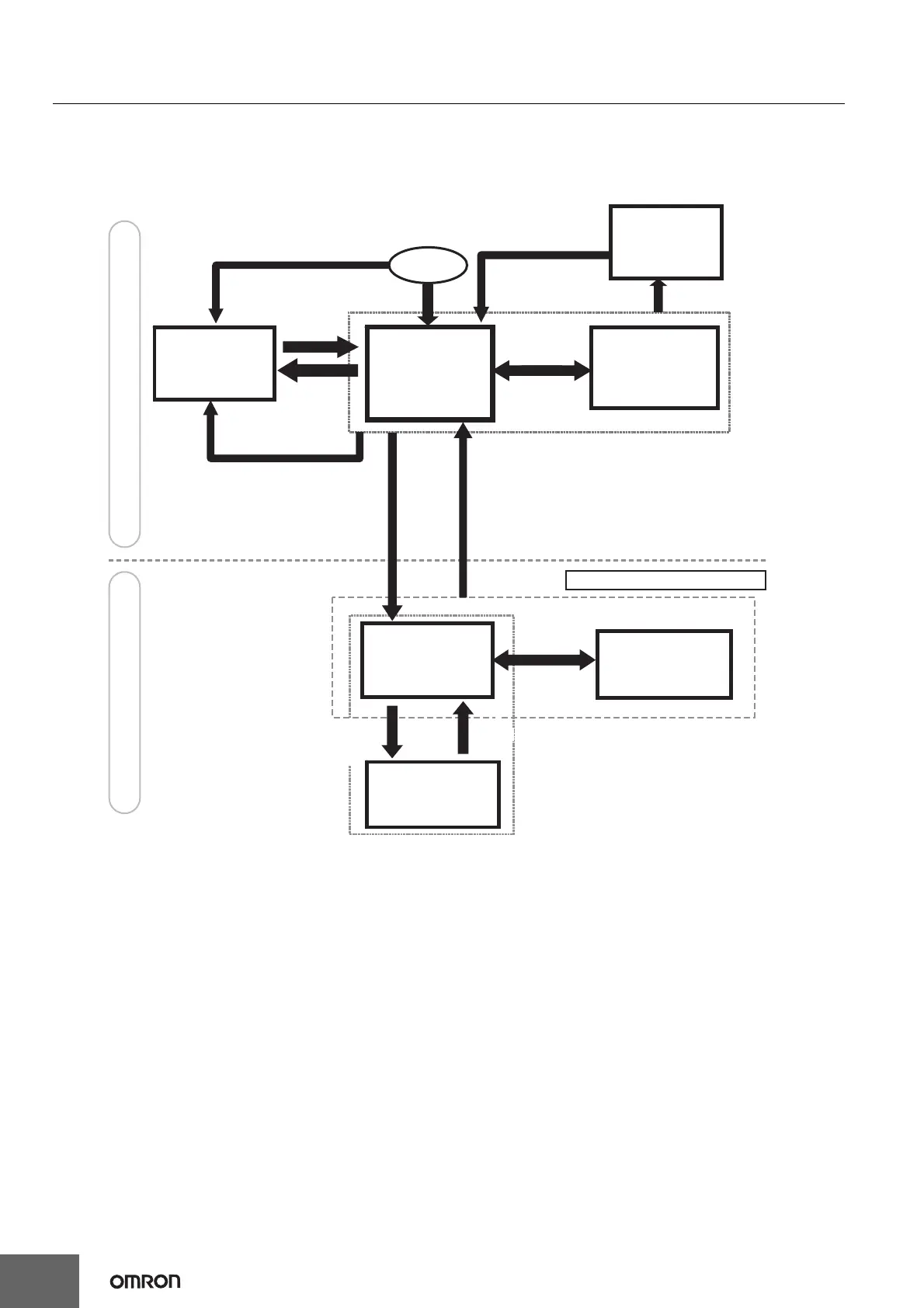

Setting Levels Diagram
This diagram shows all of the setting levels. To move to the advanced function setting level and calibration level, you must enter passwords. Some
parameters are not displayed depending on the protect level setting and the conditions of use.
Control stops when you move from the operation level to the initial setting level.
*1. Set the PF Setting parameter to a-m (Auto/Manual).
*2. The No. 1 display will flash when the keys are pressed for 1 s or longer.
Press O Key once
(models with
communications only).
Communications
Setting Level
Advanced Function
Setting Level
Power ON
Initial Setting Level
Operation Level
Used to set the input type
and other basic settings.
Used to set communications.
Used for SP, alarm values,
and other basic settings
and monitoring.
Used to change adjustment
parameters (PID constants,
adjustment sensitivity, etc.).
Used to set protection
for operations.
Press the
O Key
for at least 1 s.
Press the O and M
Keys for at least 1 s.
Press the
O and M Keys
for at least 3 s.*2
Press the
O Key
for at least 3 s.*2
S Key for at least 1 s.*1
Press the
O
Key for at
least 1 s or the
S
Key
for at least 1 s. *1
Only when Manual Mode was
used just before power OFF
Level changes
automatically.
Protect Level
Manual Control
Level
Used to set the
MV manually.
Press the O Key for at least 1 s.
Adjustment Level
Stopped.Operating
O Key for at
least 3 s while
a-m is
displayed.*2
Press the
O
Key once.
Control and auxiliary outputs stop.
Release protection and then
enter the password (−169)
for the amoV (Move to Advanced
Setting Level) parameter.
