E5@C-800
64

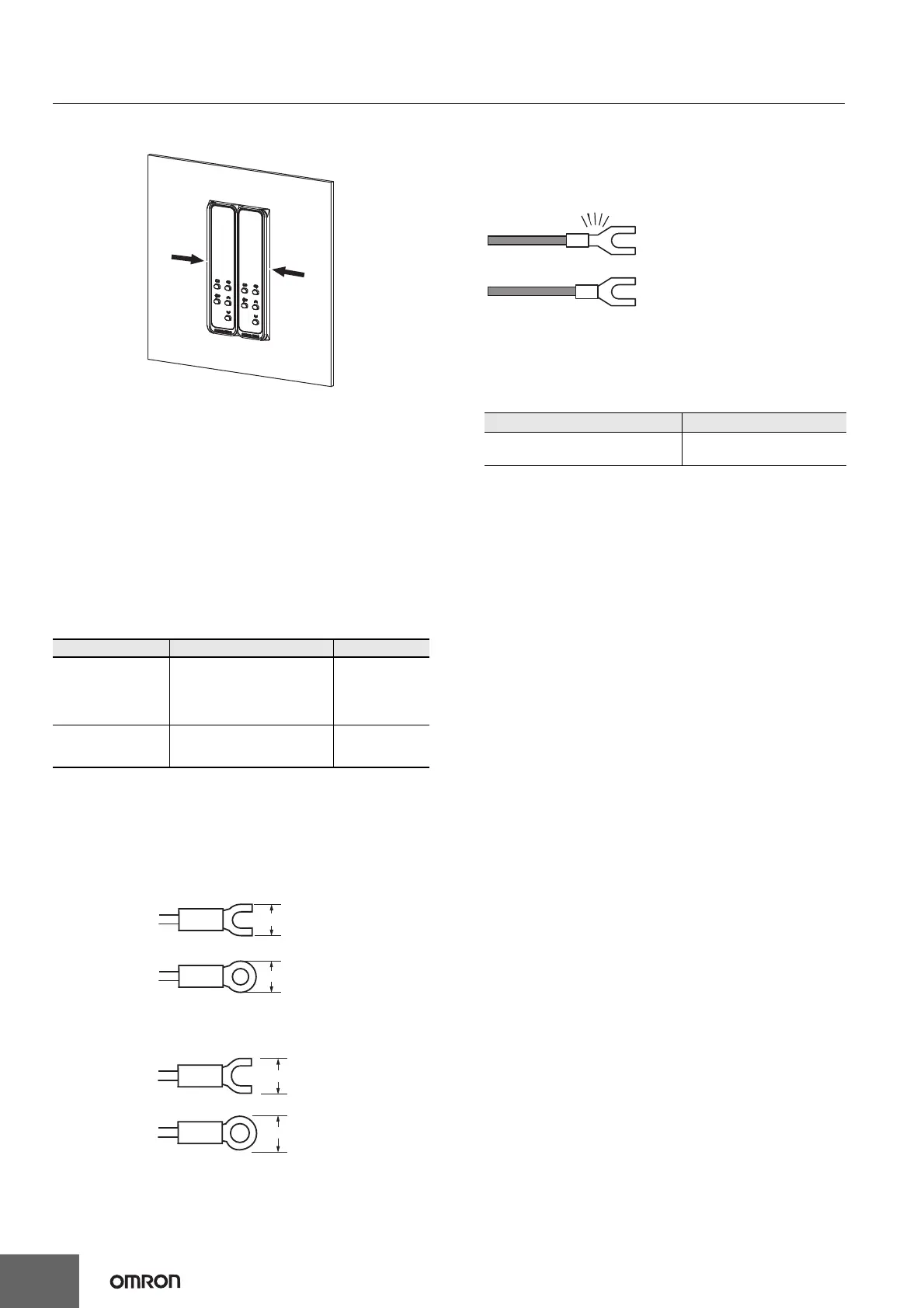

4. Secure the End Cover so that the double-sided tape is firmly
attached.
● Precautions when Wiring
• Separate input leads and power lines in order to prevent external
noise.
• Use crimp terminals when wiring the screw terminal blocks.
• Use the suitable wiring material and crimp tools for crimp terminals.
• Tighten the terminal screws to a torque of 0.43 to 0.58 N·m.
The specified torque is 0.5 N·m for the E5CC-U-800.
E5CC/E5EC/E5AC/E5DC-800
(Controllers with Screw Terminal Blocks) and
E5CC-U-800 (Plug-in model)
Wire Size
Use the wire sizes and stripping lengths given in the following table.
• If you use crimp terminals, use the stripping length that is
recommended by the manufacturer of the crimp terminals.
• To reduce the affects of noise, use shielded twisted-pair cable for
the signal lines.
Crimp Terminal
For the E5CC/E5EC/E5AC/E5DC-800 (Controllers with Screw
Terminal Blocks), use the following of crimp terminals for M3 screws.
For the E5CC-U-800, use the following types of crimp terminals for
M3.5 screws.
• If you use crimp terminals for the E5DC-800, use crimp terminals
with insulation sleeves. If you use a bare crimp terminal with no
insulation, the terminal may short with the terminal above or below
it. If you use bare crimp terminals, cover the crimped sections with
insulating marking tubes. Secure the marking tubes so that they do
not move.
Although you can connect two crimp terminals with insulation
sleeves to one terminal, you cannot do so if the diameter of the
insulation sleeves is too large.
Recommended Crimp Terminals with Insulation Sleeves for the
E5DC
-800
Model Wire Size Stripping length
E5CC/E5EC/E5AC/
E5DC-800
(Controllers with
Screw Terminal
Blocks)
AWG24 to AWG18
(0.21 to 0.82 mm
2
)
6 to 8 mm
(without crimp
terminals)
E5CC-U-800
AWG24 to AWG14
(0.21 to 2.08 mm
2
)
5 to 6 mm
(without crimp
terminals)
7.2 mm max.
7.2 mm max.
Manufacturer Model number
J.S.T. Mfg. Co.
V1.25-B3A
V0.5-3A
To Next Page
