I/O Configuration and Main Functions Section 1-2

1-2 I/O Configuration and Main Functions

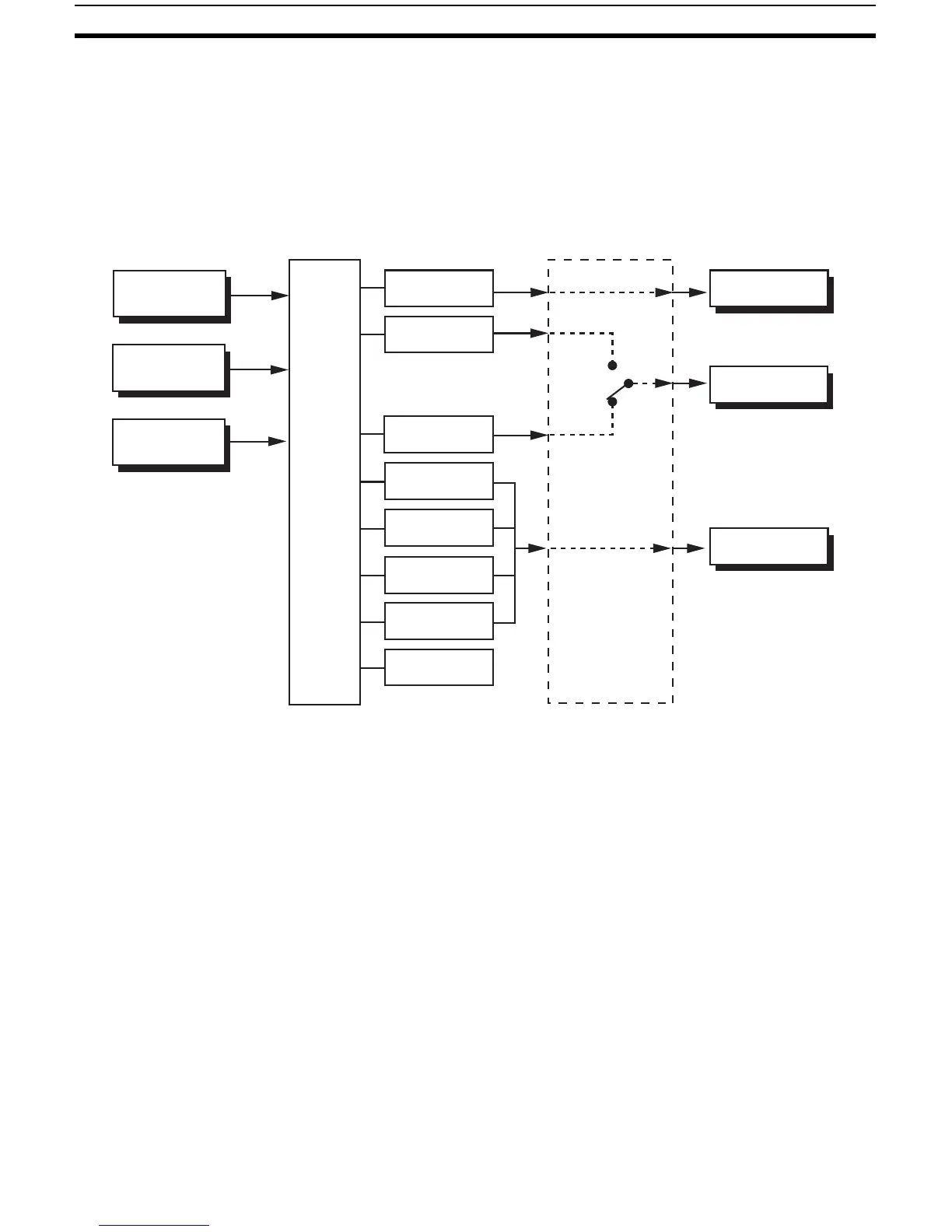

1-2-1 I/O Configuration

E5CZ

Note Functions can be assigned individually for each output by changing the set

values for the control output 1 assignment, the alarm output 1 assignment,

and the alarm output 2 assignment in the advanced function setting level.

Temperature input

or analog input

CT1 input

Event inputs

2 channels

Control

section

Control output 1

Alarm output 1

Control output 1

HB alarm

HS alarm

Input error

Communications

function

Alarm output 1

Set point input functions

from external digital

switches:

RUN/STOP

Auto/Manual

Control output 2

Alarm output 2

Heating/

cooling

Alarm output 2

Standard
