4 24-hour/Weekly Time Switch H2F

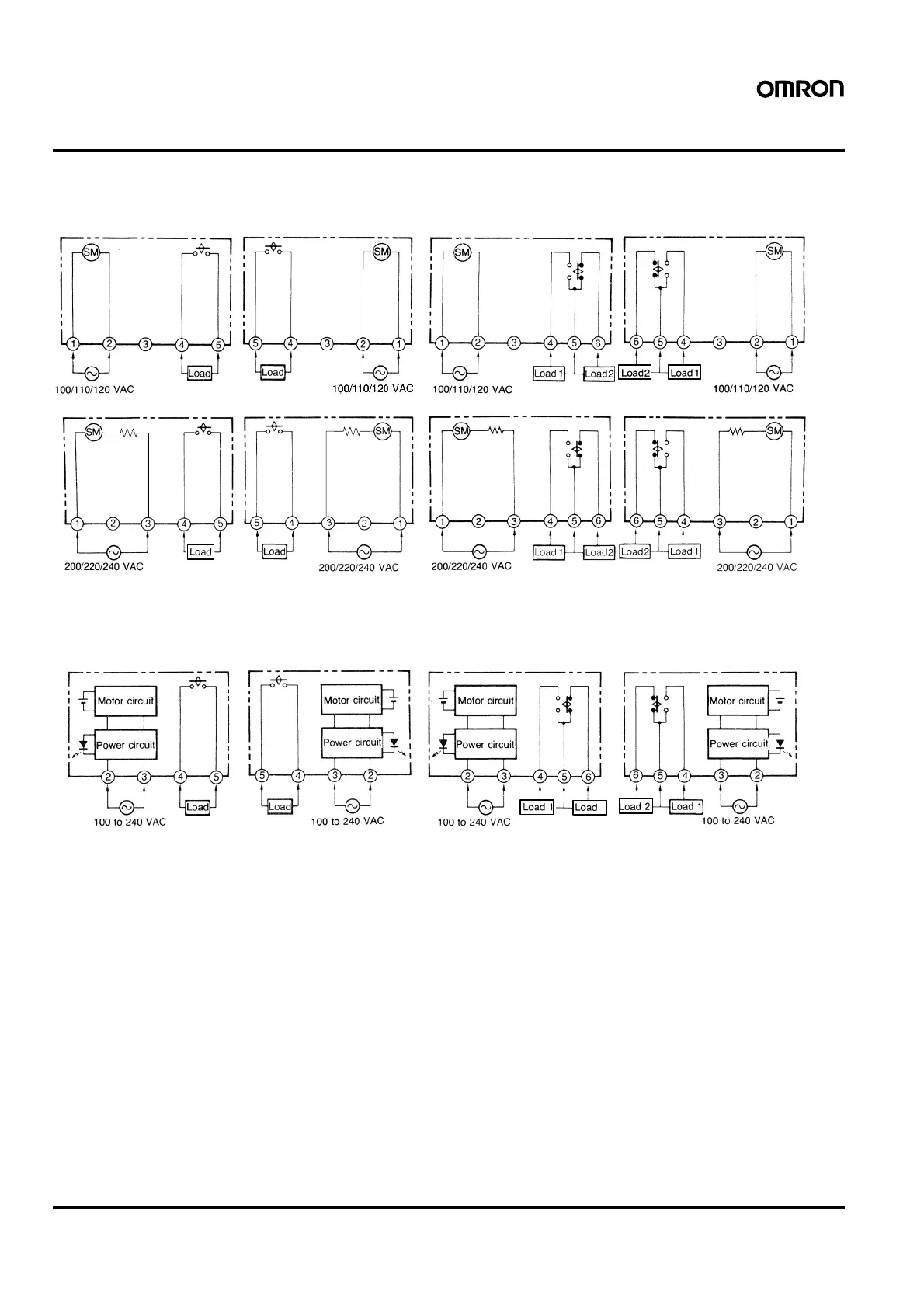

Connections
Synchronous Motor Model
(SPST-NO Output)
H2F-D
(SPDT Output)
H2F-DCH2F-DF H2F-DFC
Quartz Motor Model
(SPST-NO Output)
H2F-DM/H2F-WM
(SPDT Output)
H2F-DMC/WMCH2F-DMF/H2F-WMF H2F-DMFC/WMFC
2
Note: Connect an independent power source to the load.
