H3CR-F
H3CR-F
23

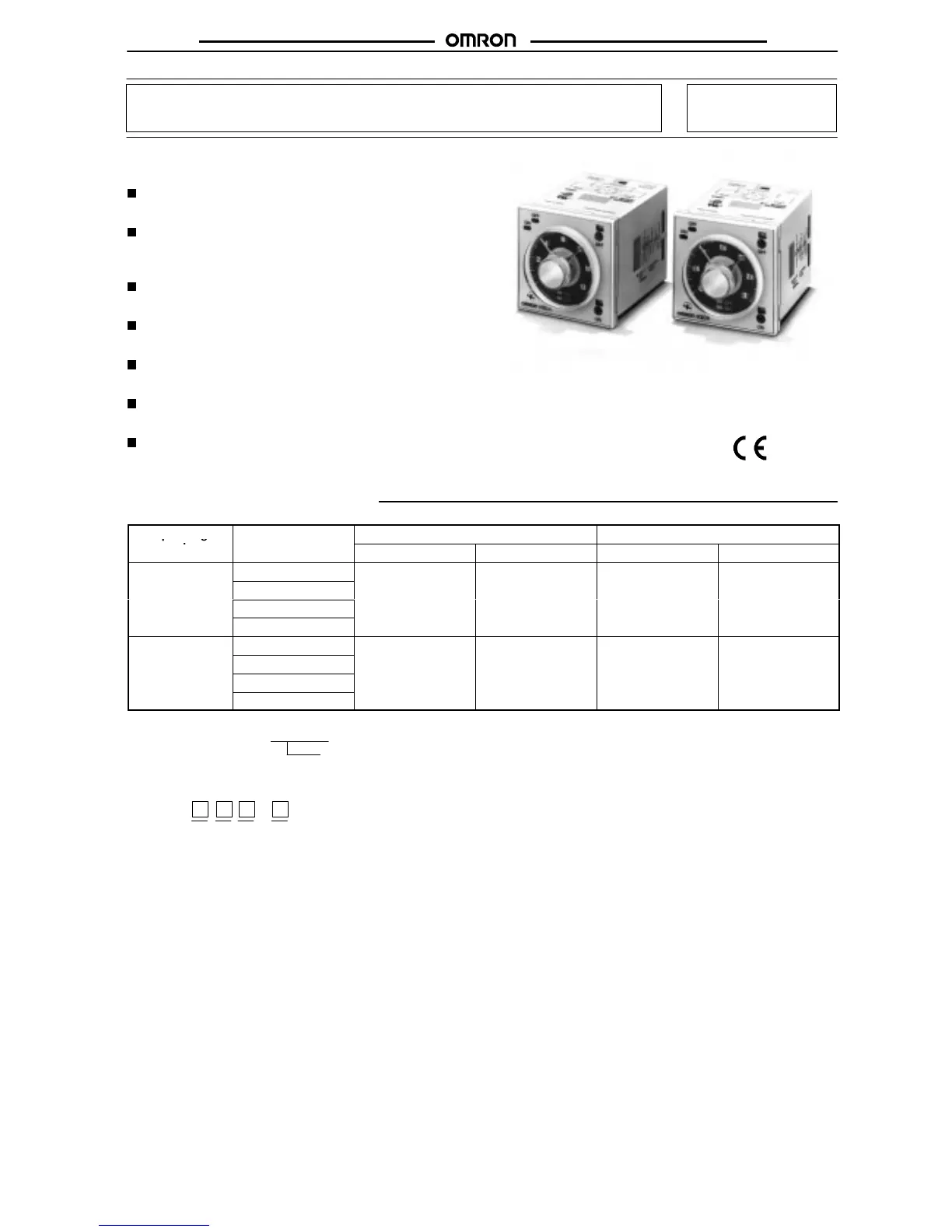

Solid-state Twin Timers H3CR-F
DIN 48 x 48-mm Twin Timers
Wide
power supply ranges of 100 to 240 V
AC
and
48 to 125 VDC respectively.
Independent ON- and OFF-time settings. Further-
more, combinations of long ON- or OFF-time and
short OFF- or ON-time settings are possible.
Fourteen time ranges from 0.05 s to 30 h or from
1.2 s
to 300 h
depending on the model to be used.
Models with a flicker ON start or flicker OFF start
are available.
Easy sequence checks through instantaneous
outputs for a zero set value at any time range.
Length, when panel-mounted with a Socket, of 80
mm or less.
11-pin and 8-pin models are available.
RC
Ordering Information
Operating
modes
1
1-pin models 8-pin models
1
1-pin models 8-pin models
Flicker OFF start
100 to 240 V
AC H3CR-F H3CR-F8 H3CR-F-300 H3CR-F8-300
24 V
AC/DC
12 VDC
48 to 125 VDC
Flicker ON start
100 to 240 V
AC H3CR-FN H3CR-F8N H3CR-FN-300 H3CR-F8N-300
24 V
AC/DC
12 VDC
48 to 125 VDC
Note:
Specify both the model number and supply voltage when ordering.
Example: H3CR-F 24 V
AC/DC
Supply voltage
Model Number Legend:
H3CR - -
1 23 4
1.
Classification
F: T
win timers
2. Configuration
None: 11-pin socket
8: 8-pin socket
3. T
win T
imer Mode
None: Flicker OFF start
N: Flicker ON start
4. T
ime Range
None:
0.05 s to 30 h models
300:
1.2 s to 300 h models
