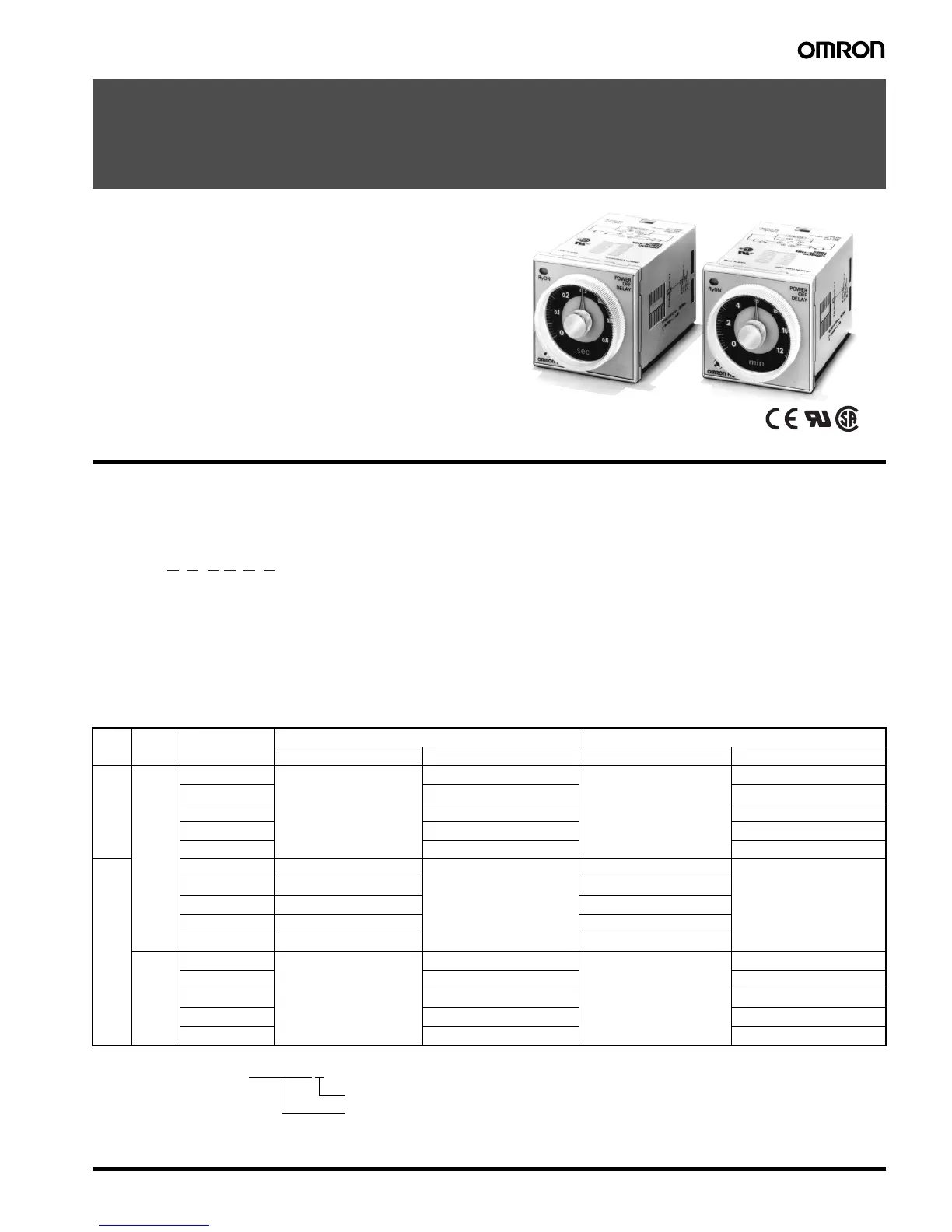

Solid-state Power OFF-delay Timer H3CR-H 37
Solid-state Power OFF-delay Timer
H3CR-H
DIN 48 × 48-mm Power OFF-delay Timer
• Long power OFF-delay times;
S-series: up to 12 seconds,
M-series: up to 12 minutes.
• Models with forced-reset input are available.
• 11-pin and 8-pin models are available.
Model Number Structure
■ Model Number Legend
Note: This model number legend includes combinations that are not available. Before ordering, please check the List of Models on page 37 for
availability.
■ List of Models
Input Output Supply voltage S-series M-series
11-pin models 8-pin models 11-pin models 8-pin models
With-
out
reset
input
DPDT 100 to 120 VAC --- H3CR-H8L 100-120AC S --- H3CR-H8L 100-120AC M
200 to 240 VAC H3CR-H8L 200-240AC S H3CR-H8L 200-240AC M
24 VAC/DC H3CR-H8L 24AC/DC S H3CR-H8L 24AC/DC M
48 VDC H3CR-H8L 48DC S H3CR-H8L 48DC M
100 to 125 VDC H3CR-H8L 100-125DC S H3CR-H8L 100-125DC M
With
reset
input
100 to 120 VAC H3CR-HRL 100-120AC S --- H3CR-HRL 100-120AC M ---
200 to 240 VAC H3CR-HRL 200-240AC S H3CR-HRL 200-240AC M
24 VAC/DC H3CR-HRL 24AC/DC S H3CR-HRL 24AC/DC M
48 VDC H3CR-HRL 48DC S H3CR-HRL 48DC M
100 to 125 VDC H3CR-HRL 100-125DC S H3CR-HRL 100-125DC M
SPDT 100 to 120 VAC --- H3CR-H8RL 100-120AC S ---
H3CR-H8RL 100-120AC M
200 to 240 VAC H3CR-H8RL 200-240AC S
H3CR-H8RL 200-240AC M
24 VAC/DC H3CR-H8RL 24AC/DC S H3CR-H8RL 24AC/DC M
48 VDC H3CR-H8RL 48DC S H3CR-H8RL 48DC M
100 to 125 VDC H3CR-H8RL 100-125DC S
H3CR-H8RL 100-125DC M
H3CR - H @ @ L @ @
1 2 3 4 5 6
1. Classification
H: Power OFF-delay timer
2. Configuration
3. Input
4. Dimensions
L: Long-body model
None: 11-pin socket
8: 8-pin socket
None: Without reset input
R: With reset input
5. Supply Voltage
6. Time Range
S: 0.05 to 12 s
M: 0.05 to 12 min
100-120AC: 100 to 120 VAC
200-240AC: 200 to 240 VAC
48DC: 48 VDC
100-125DC: 100 to 125 VDC
Note: Specify the model number, supply voltage, and time range (S or M) when ordering.
Example: H3CR-H8L 100-120AC
S
Supply voltage
Time range
