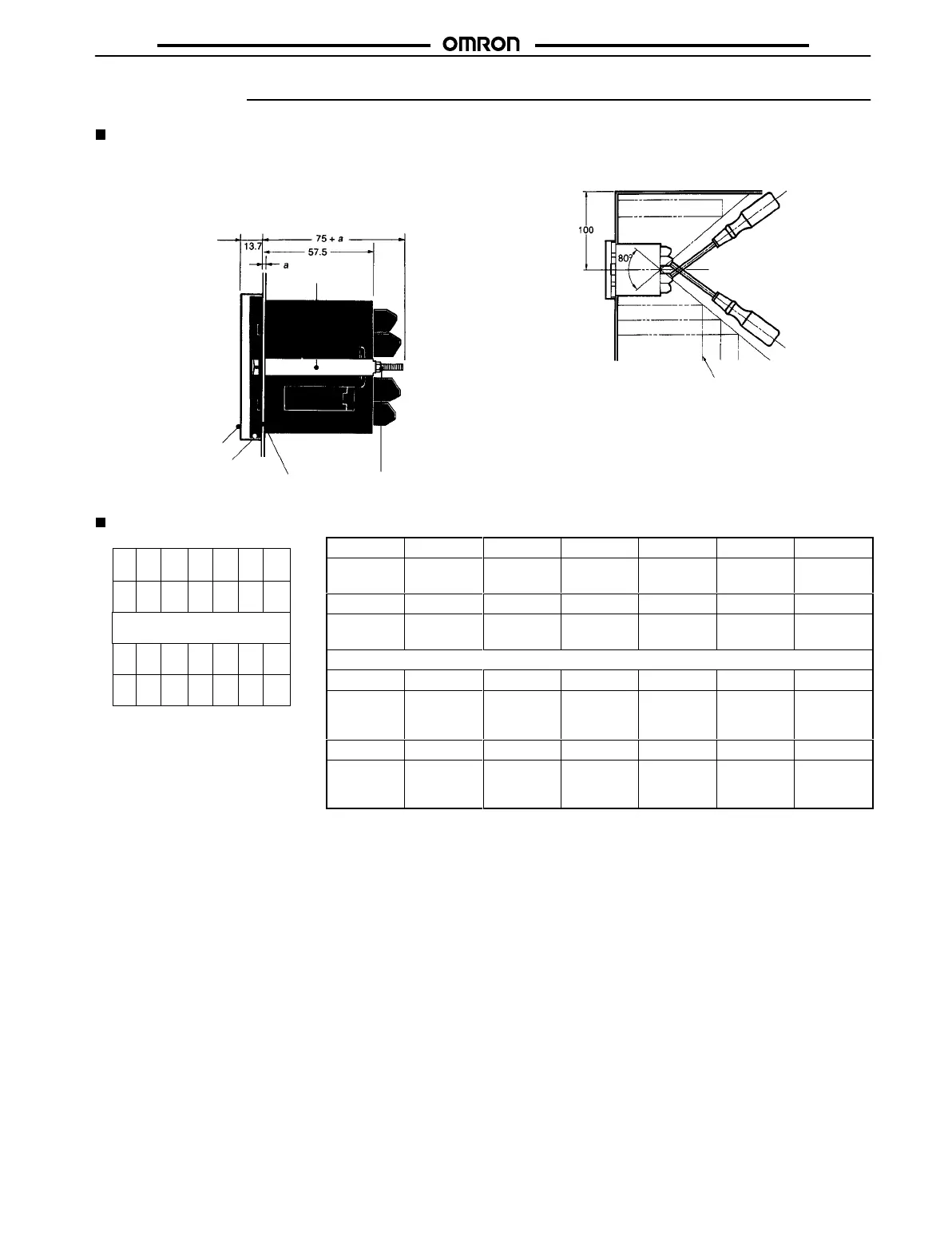

Installation
Mounting
To mount the Counter , attach the two fixtures supplied as accesso -
ries
to the left and right sides of the Counter , and securely tighten the
knurled screws on the brackets. If any other screws are used to at -
tach
the brackets, or if the knurled screws are excessively tightened
with a tool, damage may result.
Mounting bracket
(2 sets)
Hard Protective
Cover (transparent)
Rubber packing
Mounting
panel
Knurled screw
Provide enough space around the Counter when mounting it to en -
sure
a proper working space.
Other components
Terminal Arrangement
22 23 24 25 26 27 28
Reset input Count No.
selection
Count
input 1
Count
input 2
Count
input 3
Count
input 4
Count
input 5
15 16 17 18 19 20 21
Re-monitor
input
I/O inhibit
input
Count
input 6
Count
input 7
Count
input 8
Count
input 9
Input COM
8 9 10 11 12 13 14
RUN
output
Machine
stoppage
output
Forecast
output 1
Forecast
output 2
Forecast
output 3
Forecast
output 4
Forecast
output 5
1 2 3 4 5 6 7
Power
supply: 0 V
Power
supply:
24 V
Forecast
output 6
Forecast
output 7
Forecast
output 8
Forecast
output 9
Output
COM
22 23 24 25 26 27 28
15 16 17 18 19 20 21
8 9 10 11 12 13 14
12 3 4 5 6 7
