3
H8CA-S
H8CA-S
■

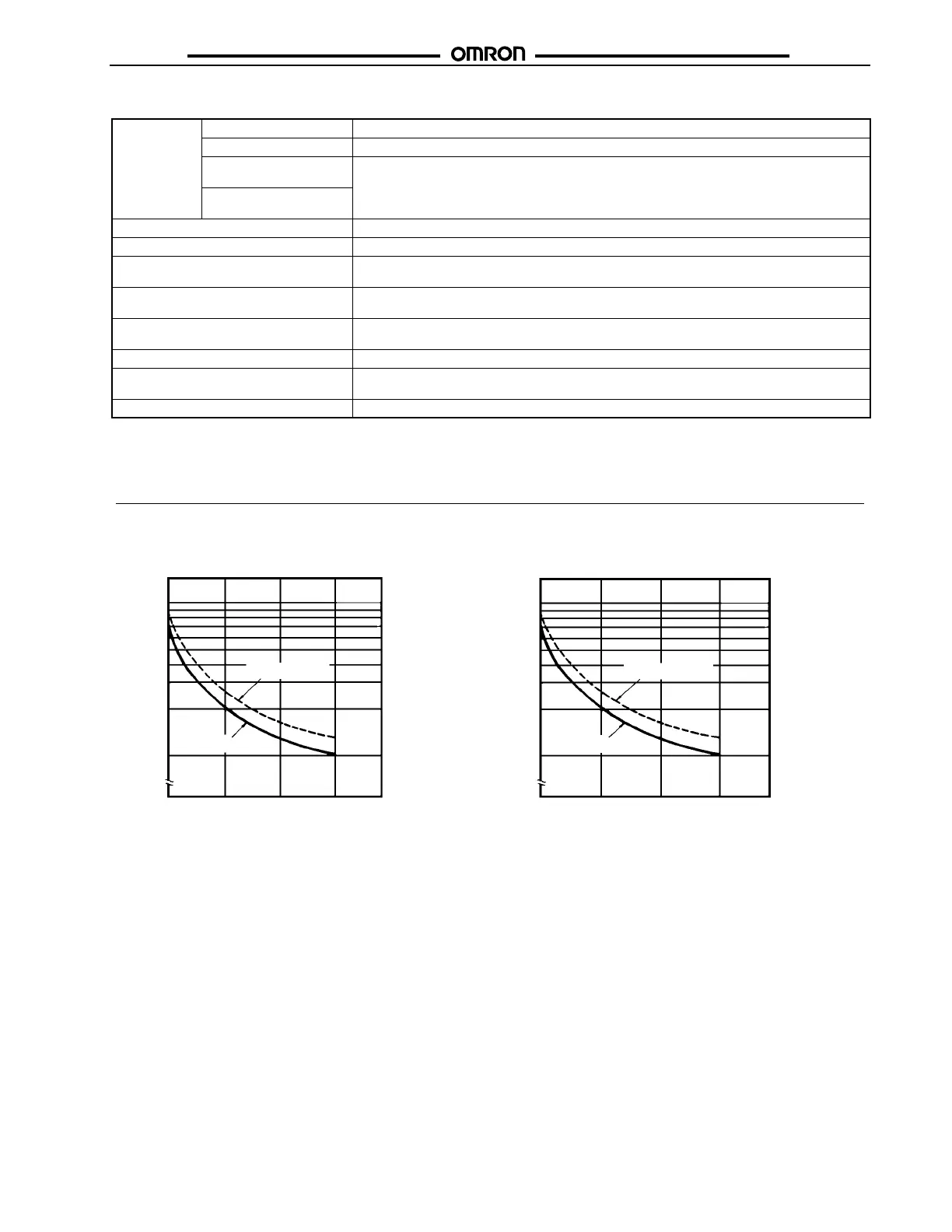

Characteristics
Note:
Operate time of output circuit is included in overall error.
Engineering Data
■
Electrical Service Life
Resistive Load Inductive Load
In timer
function mode
Repeat accuracy ±0.05% ±0.05 s
Setting error ±0.1% ±0.005 s
Variation due to
voltage change
±0.05% ±0.05 s max.
Variation due to
temperature change
Insulation resistance 100 m
Ω
min at 500 VDC
Dielectric Strength 1,500 VAC 50/60 Hz for 1 minute
Vibration Mechanical durability: 10 to 55 Hz, 0.75 mm (0.030 in) double amplitude
Malfunction durability: 10 to 55 Hz, 0.3 mm (0.012 in) double amplitude
Shock Mechanical durability: approx. 30 G
Malfunction durability: approx. 10 G
Ambient temperature Operating: -10° to 55° C (14° to 131° F)
Storage: -25° to 65° C (-13° to 149° F)
Humidity 35 to 85% RH
Service life Mechanically: 10,000,000 operations min.
Electrically: See “Engineering Data”
Weight Approx. 130 g (4.59 oz)
30 VDC (p.f. = 1)
250 VAC (p.f. = 1)
Load current (A)
0 1 2 3
Switching operations (x10
3
)
100
500
1000
0
30 VDC (L/R = 7 ms)
250 VAC (p.f. = 0.4)
Load current (A)
0 1 2 3
Switching operations (x10
3
)
100
500
1000
0
