4 Installation and Wiring

4-16

NJ-series CPU Unit Hardware User’s Manual (W500)

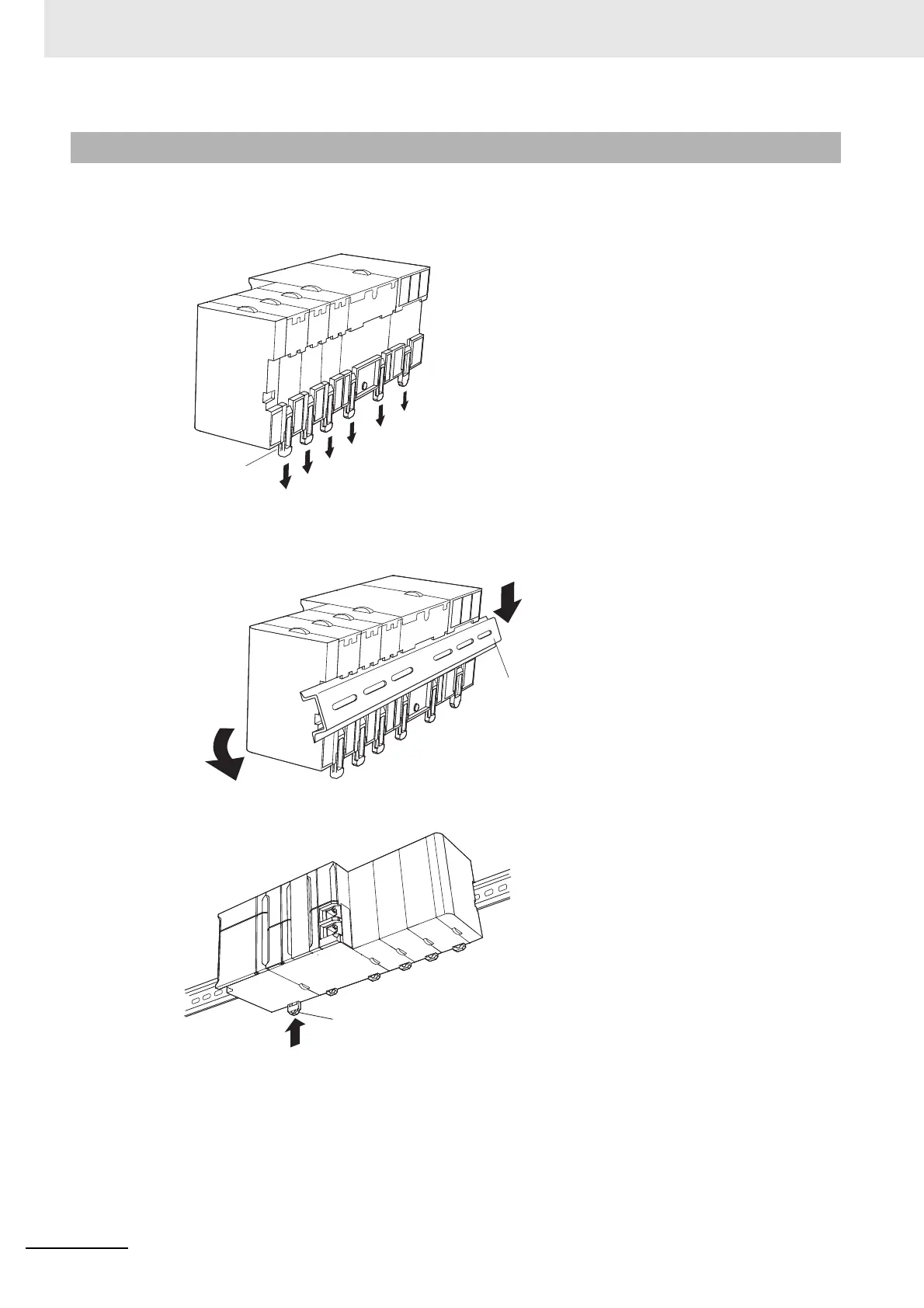

Use the following procedure to install an NJ-series Controller on DIN Track.

1 Release the pins on the backs of the NJ-series Units.

2 Fit the back of the Controller onto the DIN Track by inserting the top of the track and then press-

ing in at the bottom of the Controller, as shown below.

3 Lock the pins.

4-3-3 DIN Track Installation

Release

DIN Track

mounting pins

DIN Track

(2)

(1)

DIN Track

mounting pins

Introduction3
