Remote ON/OFF Signal
Remote ON/OFF signals can be used to start and stop the
UPS, by using either an externally connected contact or the
ON/OFF status of the open collector circuit. To use this func-
tion, turn on the Power Switch of the UPS. (Note: When there
is no AC power supply, it is not possible to start up UPS by the
remote ON/OFF signals even though cold start is set ON.)
Connection terminals are at contact signal connector pins 6 ,7
and the remote ON/OFF connector.
3. Items that can be set using the contact signal card
Please make a cable to connect to the system by yourself.
"8. Example of the use of the Contact Signal circuit"
➛
Page 75
■

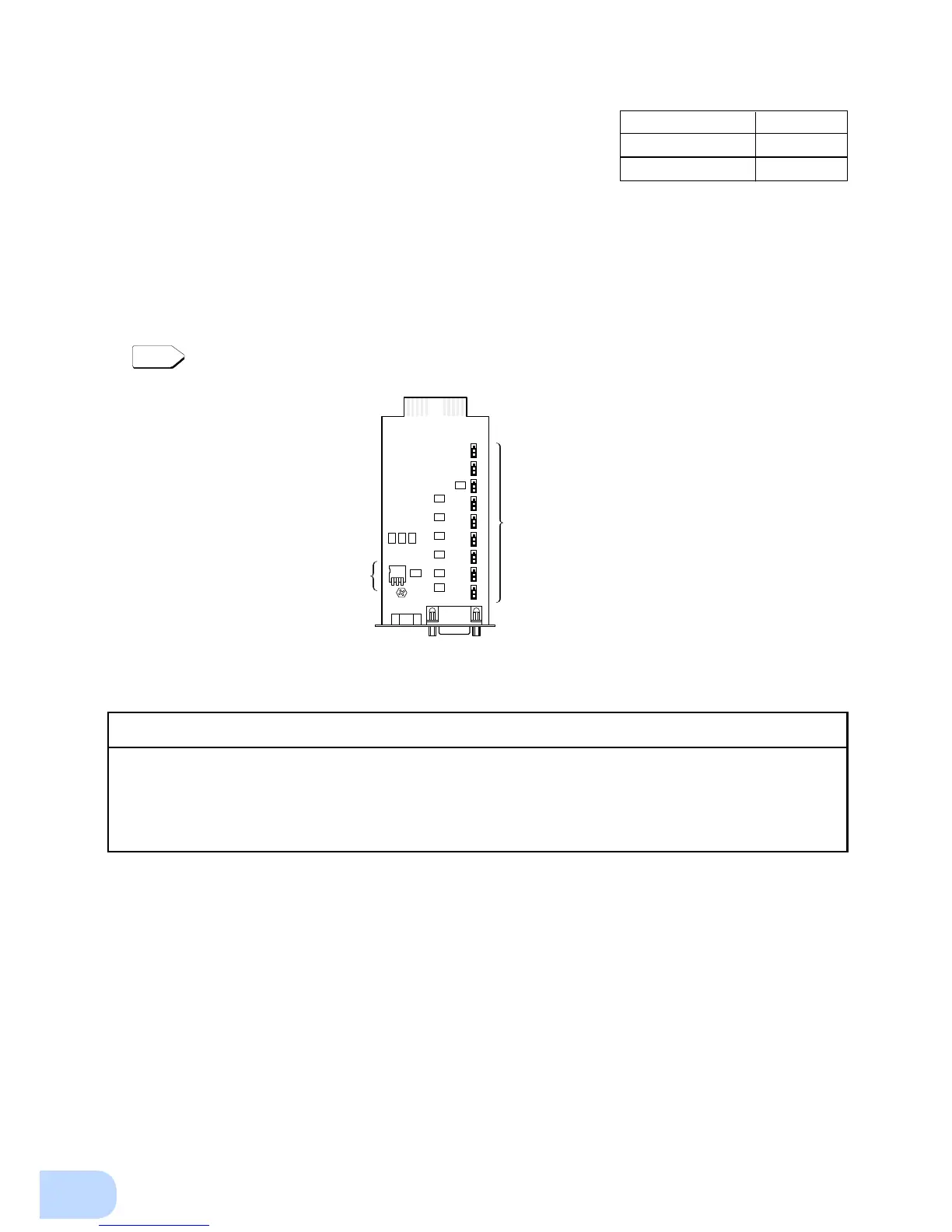

Setting the switches
Jumper setting:
（9 digits）
DIP switches
（3 digits）
External contact Operate
Open Start
Close Stop
After changing the setting switch, turn OFF the UPS power siwtch, disconnect
the AC input plug, wait until the status indicator is completely OFF, and then
reinsert the AC input plug.
●
The setting switch changes do not become valid until the AC input plug is reinserted.
By using the switches of contact signal card, set the item below.
After changing the setting switch, follow the procedure described below.
To Next Page
