Medium & Heavy Payload Series-Hardware Installation Manual TM12/14 Series Hardware Version: 3.2 63

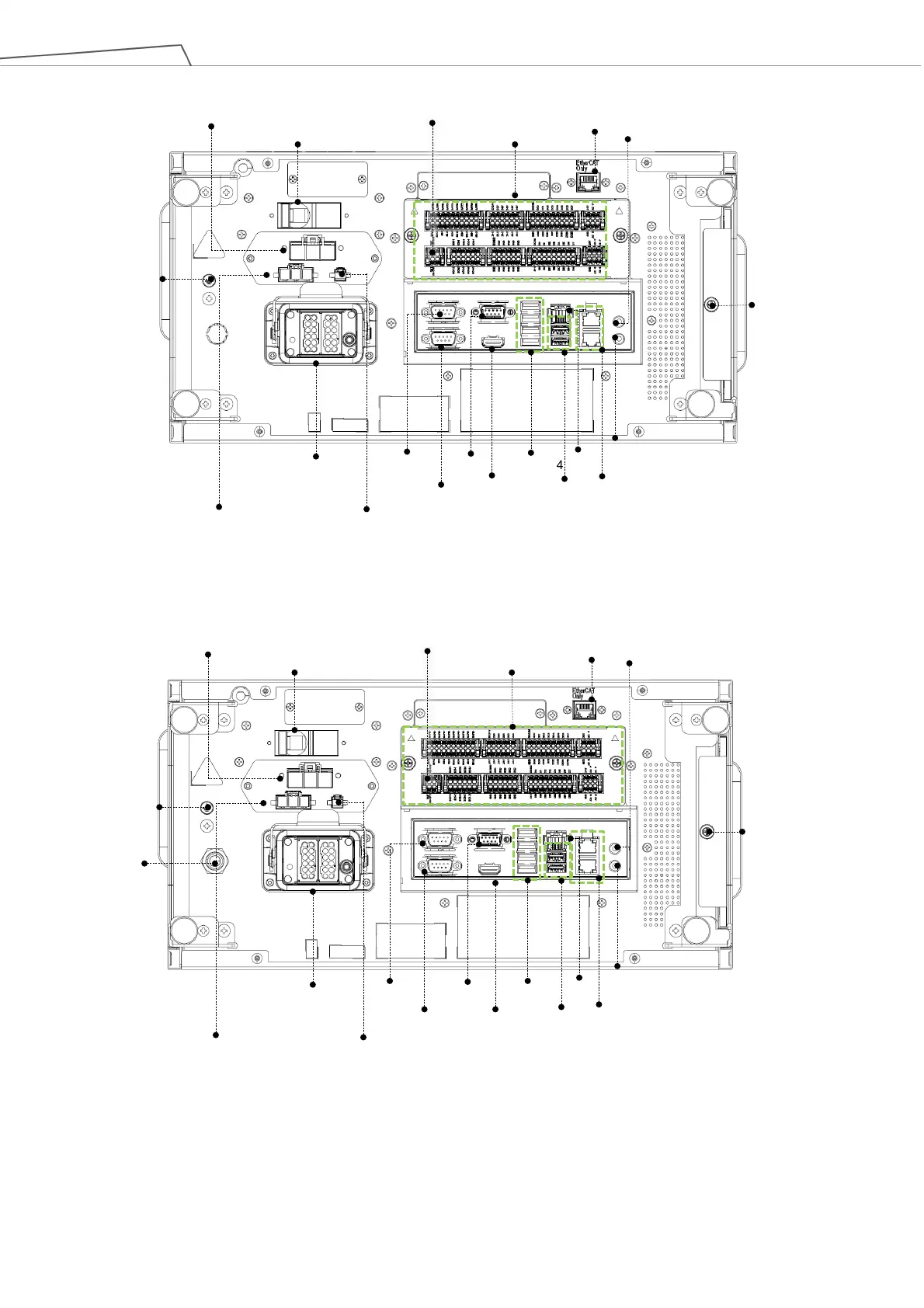

Figure 60: Interfaces of the TM12M / TM14M Series
Figure 61: Interfaces of the TM12M SEMI / TM14M SEMI Series
External Power Supply Remote Control
DC IN Power
DC Power Switch
DC IN for External Power Supply
USB
3.0*2
COM1
Robot Cable Adapter
USB 2.0 *4
HDMI
LAN for GigE Camera*2
EtherCAT
Line-out
Air Filter Screw
Power Remote ON/OFF
COM2
COM3
LAN
Mic-in
I/O Interface
PE
PE
External Power Supply Remote Control
DC IN Power
DC Power Switch
DC IN for External Power Supply
USB
3.0*2
COM1
Robot Cable Adapter
USB 2.0 *4
HDMI
LAN for GigE Camera*2
EtherCAT
Line-out
Air Filter Screw
Power Remote ON/OFF
COM2
COM3
LAN
Mic-in
I/O Interface
