Omron W4S1-0 Series User Manual

Rev. 1.0
11

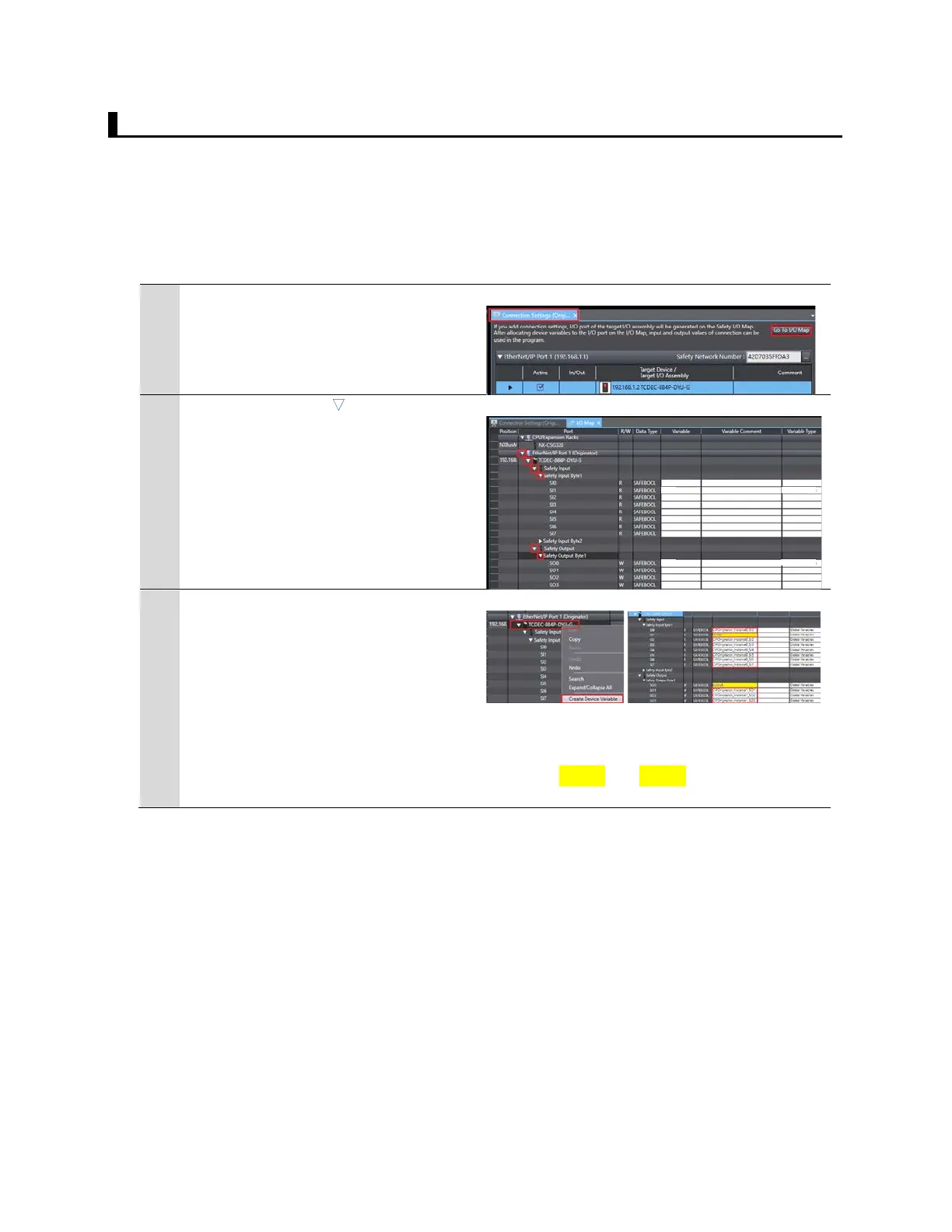

2.3. Transferring Program with Sysmac Studio
Transfer the Safety Network Controller and the Safety CPU program.
2.3.1. Setting Global Variables
Set global variables for the Safety Controller
1
Click Go To I/O Map in the Connection
Settings (Originator) Tab page.
2
In the I/O Map click to expand.
Expand EtherNet/IP Port 1 (Originator)
3
To auto generate the variable names
right click on GI-SMD1624 and select
Create Device Variable.
*the auto generate variable name is the
instance name + the port description
(CIPOriginator_Instance_SI0)
To use user define variable names just enter the
variable name in the Variable column.
(Example: sensor and output are user define
variable names)
