Installation Section 1-5
11
1-5 Installation
1-5-1 Reflective Sensor Heads

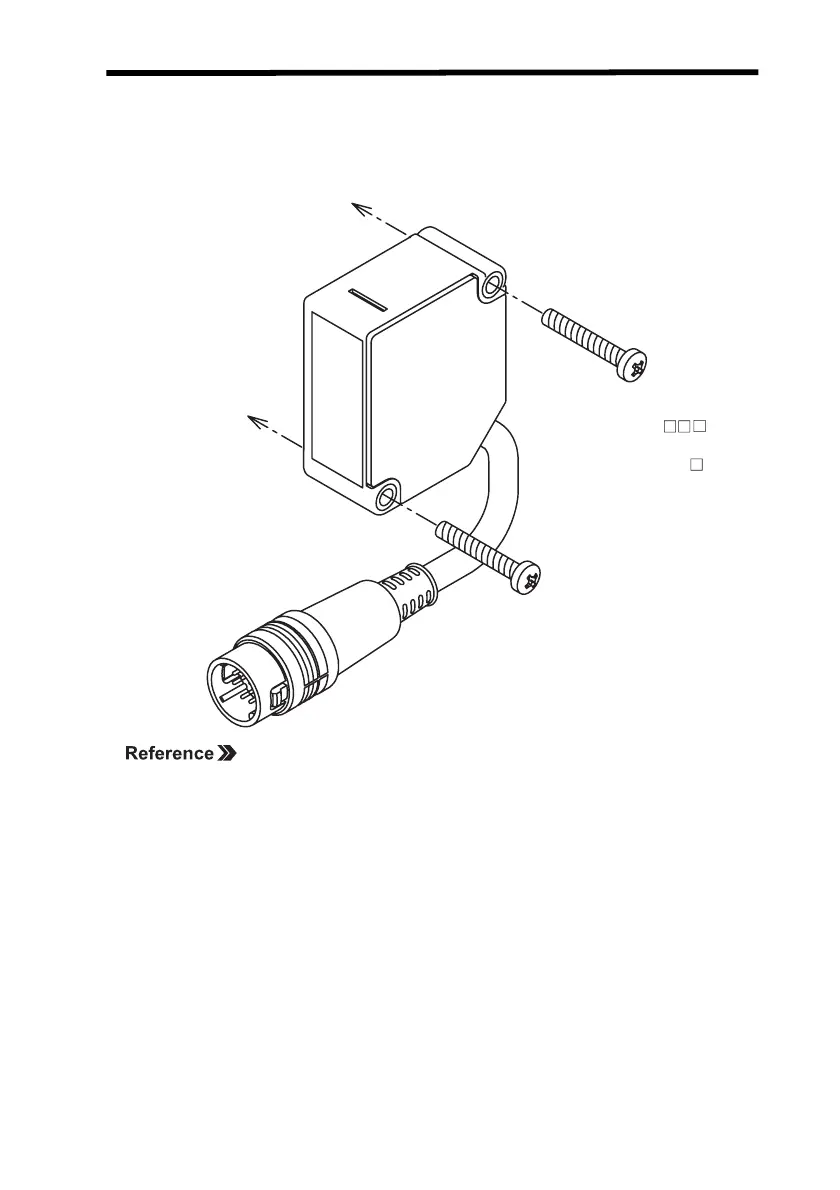

Install the Sensor Head using the screws provided with it.
Mounting Hole Size
Refer to 6-2-1 Reflective Sensor Heads.
Note 1. Secure the connector so that it is not subjected to vibration or shock.
2. Do not touch the optical filter on the Sensor Head. Fingerprints or
other contamination on the filter will interfere with correct Sensor oper-
ation. If the filter is touched by mistake, clean it by wiping it gently with
a soft clean cloth.
For the ZX-LD ,
use M3 screws.
For the ZX-LD30V ,
use M4 screws.
Z157-E1-01C.book Page 11 Thursday, August 31, 2006 5:13 PM
