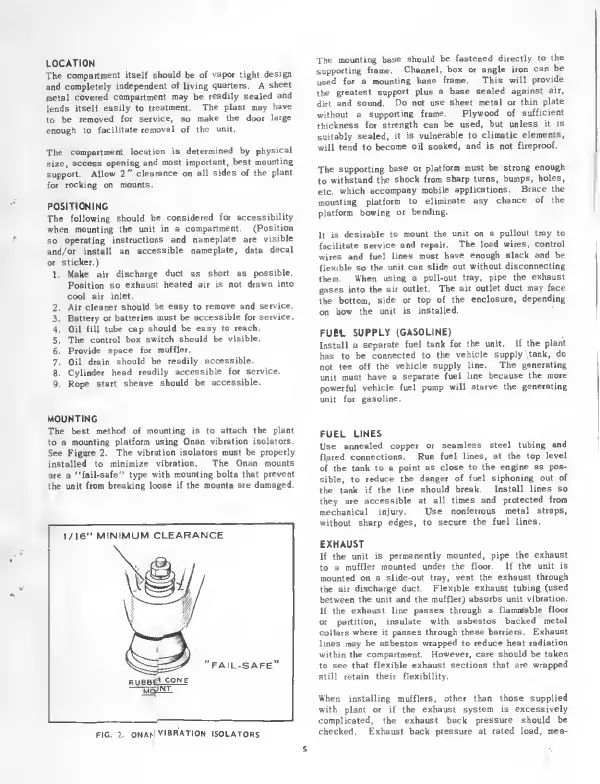

LOCATION
The
compartment
itself
should
be
of
vapor
tight
design
and
completely
independent
of
living
quarters.
A
sheet
metal
covered
compartment
may
be
readily
sealed
and
lends
itself
easily
to
treatment.
The
plant
may
have
to
be
removed
for
service,
so
make
the
door
large
enough
to
facilitate
removal
of
the
unit.
The
compartment
location
is
determined
by
physical
size,
access
opening
and
most
important,
best
mounting
support.
Allow
2"
clearance
on
all
sides
of
the
plant
for
rocking
on
mounts.
POSITIONING
The
following
should
be
considered
for
accessibility
when
mounting
the
unit
in
a
compartment.
(Position
so
operating
instructions
and
nameplate
are
visible
and/or
install
an
accessible
nameplate,
data
decal
or
sticker.)
1.
Make
air
discharge
duct
as
short
as
possible.
Position
so
exhaust
heated
ait
is
not
drawn
into
cool
air
inlet.
2.
Ait
cleaner
should
be
easy
to
remove
and
service.
3.
Battery
or
batteries
roust
be
accessible
for
service.
4.
Oil
fill
tube
cap
should
be
easy
to
reach.
5.
The
control
box
switch
should
be
visible.
6.
Provide
space
for
muffler.
7.
Oil
drain
should
be
readily
accessible.
8.
Cylinder
head
readily
accessible
for
service.
9.
Rope
start
sheave
should
be
accessible.
MOUNTING
The
best
method
of
mounting
is
to
attach
the
plant
to
a
mounting
platform
using
Onan
vibration
isolators.
See
Figure
2.
The
vibration
isolators
must
be
properly
installed
to
minimize
vibration.
The
Onan
mounts
are
a
ā€œfail-safe"
type
with
mounting
bolts
that
prevent
the
unit
from
breaking
loose
if
the
mounts
are
damaged.
The
mounting
base
should
be
fastened
directly
to
the
supporting
frame.
Channel,
box
or
angle
iron
can
be
used
for
a
mounting
base
frame.
This
will
provide
the
greatest
support
plus
a
base
sealed
against
ait,
dirt
and
sound.
Do
not
use
sheet
metal
or
thin
plate
without
a
supporting
frame.
Plywood
of
sufficient
thickness
for
strength
can
be
used,
but
unless
it
is
suitably
sealed,
it
is
vulnerable
to
climatic
elements,
will
tend
to
become
oil
soaked,
and
is
not
fireproof.
The
supporting
base
or
platform
must
be
strong
enough
to
withstand
the
shock
from
sharp
turns,
bumps,
holes,
etc.
which
accompany
mobile
applications.
Brace
the
mounting
platform
to
eliminate
any
chance
of
the
platform
bowing
or
bending.
It
is
desirable
to
mount
the
unit
on
a
pullout
tray
to
facilitate
service
and
repair.
The
load
wires,
control
wires
and
fuel
lines
must
have
enough
slack
and
be
flexible
so
the
unit
can
slide
out
without
disconnecting
them.
When
using
a
pull-out
tray,
pipe
the
exhaust
gases
into
the
air
outlet.
The
air
outlet
duct
may
face
the
botttxn,
side
or
top
of
the
enclosure,
depending
on
bow
the
unit
is
installed.
FUfil.
SUPPLY
(GASOLINE)
Install
a
separate
fuel
tank
for
the
unit.
If
the
plant
has
to
be
connected
to
the
vehicle
supply
tank,
do
not
tee
off
the
vehicle
supply
line.
The
generating
unit
must
have
a
separate
fuel
line
because
the
more
powerful
vehicle
fuel
pump
will
starve
the
generating
unit
for
gasoline.
FUEL
LINES
Use
annealed
copper
or
seamless
steel
tubing
and
flared
connections.
Run
fuel
lines,
at
the
top
level
of
the
tank
to
a
point
as
close
to
the
engine
as
pos¬
sible,
to
reduce
the
danger
of
fuel
siphoning
out
of
the
tank
if
the
line
should
break.
Install
lines
so
they
are
accessible
at
all
times
and
protected
from
mechanical
injury.
Use
nonferrous
metal
straps,
without
sharp
edges,
to
secure
the
fuel
lines.
EXHAUST
If
the
unit
is
permanently
mounted,
pipe
the
exhaust
to
a
muffler
mounted
under
the
floor.
If
the
unit
is
mounted
on
a
slide-out
tray,
vent
the
exhaust
through
the
air
discharge
duct.
Flexible
exhaust
tubing
(used
between
the
unit
and
the
muffler)
absorbs
unit
vibration.
If
the
exhaust
line
passes
through
a
flamiSable
floor
or
partition,
insulate
with
asbestos
backed
metal
collars
where
it
passes
through
these
barriers.
Exhaust
lines
may
be
asbestos
wrapped
to
reduce
heat
radiation
within
the
compartment.
However,
care
should
be
taken
to
see
that
flexible
exhaust
sections
that
are
wrapped
still
retain
their
flexibility.
When
installing
mufflers,
other
than
those
supplied
with
plant
or
if
the
exhaust
system
is
excessively
complicated,
the
exhaust
back
pressure
should
be
checked.
Exhaust
back
pressure
at
rated
load,
mea-
