Onan MDJF Series User Manual

IMPELLER
Tighten Screws
IS to 17 in. lbs.
COVER
COVER GASKET
WATER PUMP
RESONATOR
GASKET
AIR
INLET PORT
MANIFOLD
HEATERS
INTAKE
MANIFOLD
RESONATOR
CAP AND OIL
LEVEL INDICATOR
KEEP OIL
AT THIS LEVEL
NEVER OPERATE
ENGINE WITH OIL
BELOW THIS LEVEL.
A874
ALWAYS REPLACE
CAP TIGHTLY, OR
OIL LEAKAGE MAY
OCCU R.
OIL LEVEL INDICATOR
CLEAN
BALL
JOINT
BALL JOINT
BREATHER TUBE
CAP
TUBE FROM
AIR
CLEANER
BREATHER
TUBE BAFFLE
Remove breather cap. Remove baffle and wash
in suitable solvent. Dry and reinstall.
CRANKCASE BREATHER
SPECIFICAtlON A AND B

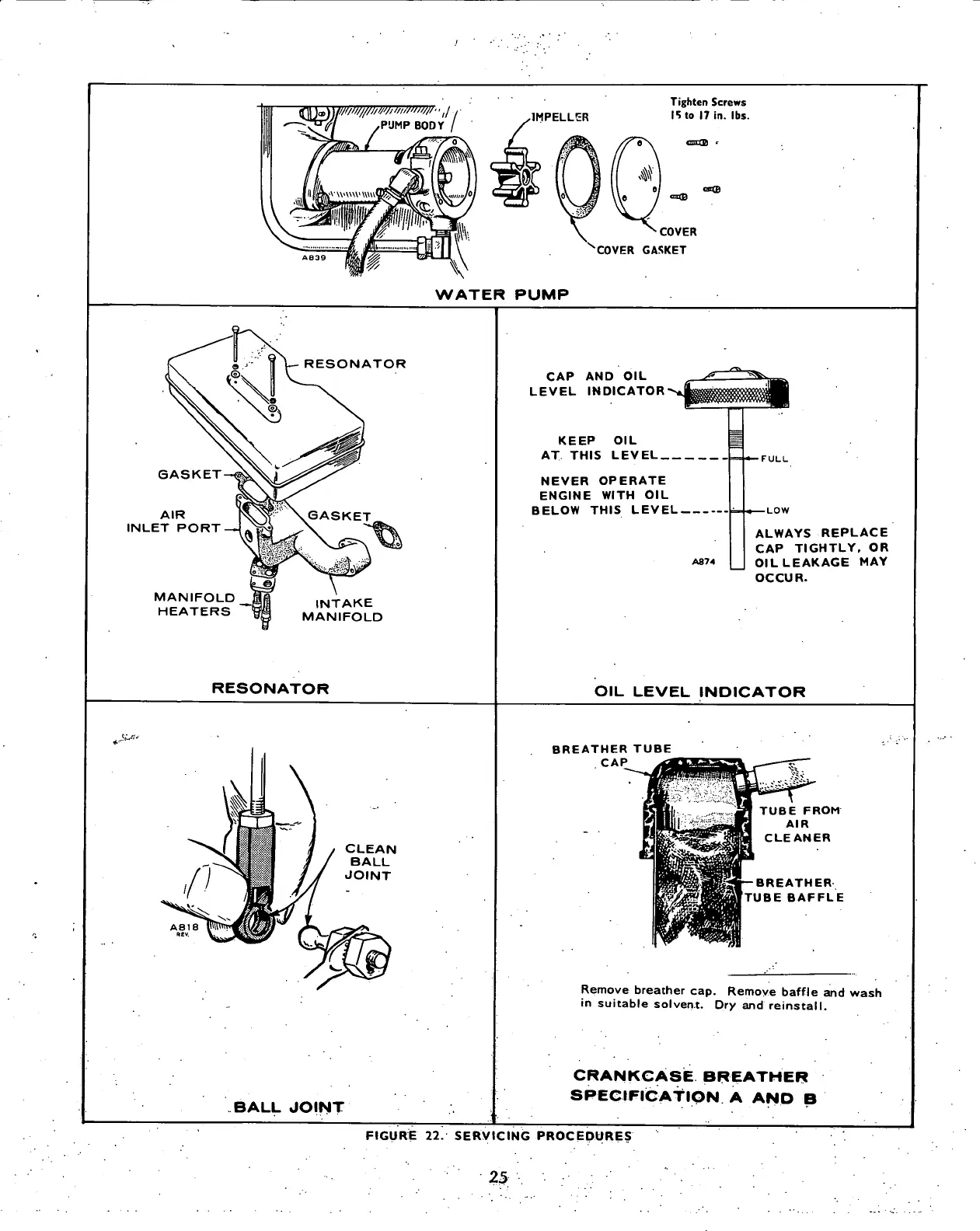

FIGURE 22. SERVICING PROCEDURES
