Genset Status
Genset status is displayed on 3 screen pages (Fig-
ure 2-3). GEN STATUS PG1 appears when the Dis-
play is turned on. Press the double arrows [
] to
toggle between the 3 screen pages.
The Status line on PG1 will display the word Prim-
ing, Starting, Running, Stopped, or Volt Adj. The
rest of the lines on the 3 status screen pages display
AC output voltage, AC frequency, engine coolant
temperature, engine oil pressure, starting battery
voltage and total genset running time.
Note:The total time on the master hour meter (p. 5-5)
prevails if the total time on the e-Series Digital Dis-
play is different. See Configuring Replacement Gen-
set Controller (p. 2-8) to reset the Digital Display to
match the master hour meter.
To
Fig. 2-7
To
Fig. 2-5
To
Fig. 2-8

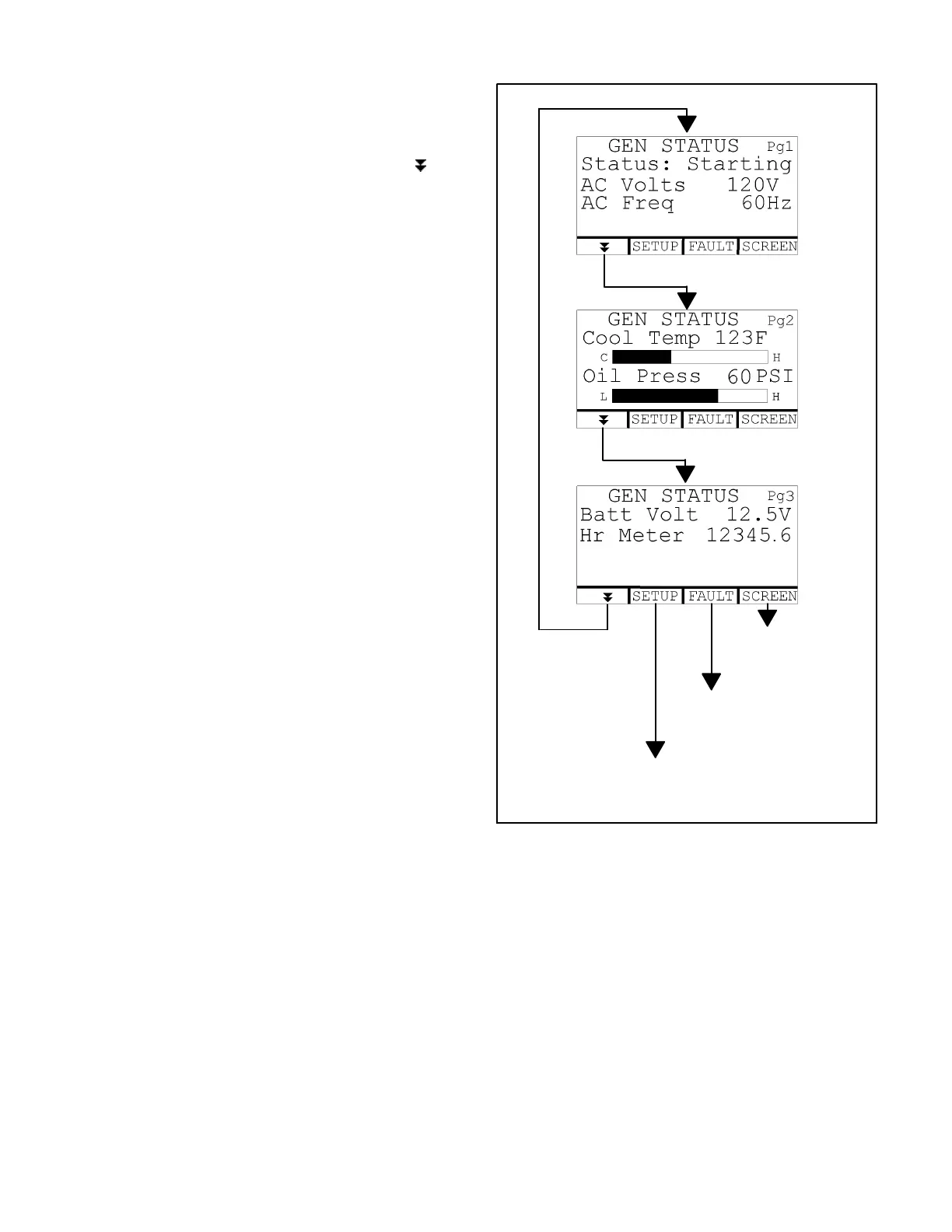

FIGURE 2-3. TYPICAL GENSET STATUS SCREENS
