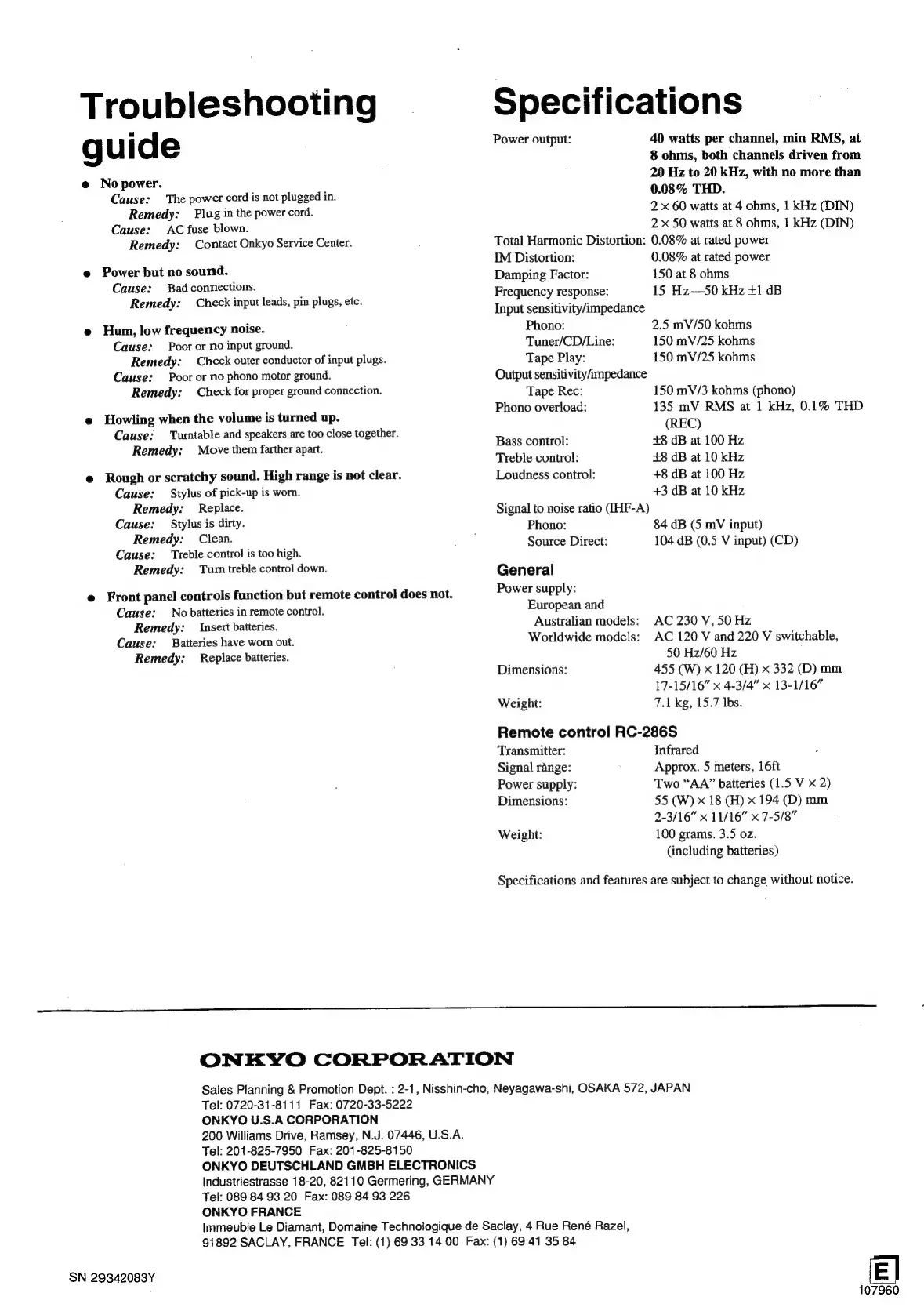

Onkyo A-9210 User Manual

Troubleshooting
guide
e No power.
Cause:
The
power
cord
is
not
plugged
in.
Remedy:
Plug
in
the
power
cord.
Cause: AC fuse blown.
Remedy:
Contact
Onkyo
Service
Center.
e Power but no sound.
Cause: Bad connections.
Remedy:
Check
input
leads,
pin
plugs,
etc.
e Hum, low frequency noise.
Cause: Poor or no input ground.
Remedy:
Check
outer
conductor
of
input
plugs.
Cause:
Poor
or
no
phono
motor
ground.
Remedy:
Check
for
proper
ground
connection.
e
Howling
when
the
volume
is
turned
up.
Cause:
Turntable
and
speakers
are
too
close
together.
Remedy:
Move
them
farther
apart.
e
Rough
or
scratchy
sound.
High
range
is
not
clear.
Cause:
Stylus
of
pick-up
is
worn.
Remedy:
Replace.
Cause:
Stylus
is
dirty.
Remedy:
Clean.
Cause:
Treble
control
is
too
high.
Remedy:
Turn
treble
control
down.
e
Front
panel
controls
function
but
remote
control
does
not.
Cause: No batteries in remote control.
Remedy: Insert batteries.
Cause: Batteries have worn out.
Remedy: Replace batteries.
Specifications
Power output: 40 watts per channel, min RMS, at
8 ohms, both channels driven from
20 Hz to 20 kHz, with no more than
0.08% THD.
2 x 60 watts at 4 ohms, 1 kHz (DIN)
2 x 50 watts at 8 ohms, 1 kHz (DIN)
Total Harmonic Distortion: 0.08% at rated power
IM Distortion: 0.08% at rated power
Damping Factor: 150 at 8 ohms
Frequency response: 15 Hz—S50 kHz +1 dB
Input sensitivityimpedance
Phono: 2.5 mV/S50 kohms
Tuner/CD/Line: 150 mV/25 kohms
Tape Play: 150 mV/25 kohms
Output sensitivityimpedance
Tape Rec: 150 mV/3 kohms (phono)
Phono overload: 135 mV RMS at 1 kHz, 0.1% THD
(REC)
Bass control: +8 dB at 100 Hz
Treble control: +8 dB at 10 kHz
Loudness control: +8 dB at 100 Hz
+3 dB at 10 kHz
Signal to noise ratio THF-A)
Phono: 84 dB (5 mV input)
Source Direct: 104 dB (0.5 V input) (CD)
General
Power supply:
European and
Australian models: AC 230 V, 50 Hz
Worldwide models: AC 120 V and 220 V switchable,
50 Hz/60 Hz
Dimensions: 455 (W) x 120 (H) x 332 (D) mm
17-15/16” x 4-3/4” x 13-1/16”
Weight: 7.1 kg, 15.7 Ibs.
Remote control RC-286S
Transmitter: Infrared
Signal range: Approx. 5 meters, 16ft
Power supply: Two “AA” batteries (1.5 V x 2)
Dimensions: 55 (W) x 18 (H) x 194 (D) mm
2-3/16” x 11/16” x 7-5/8”
Weight: 100 grams. 3.5 oz.
(including batteries)
Specifications and features are subject to change without notice.
ONKYO CORPORATION
Sales Planning & Promotion Dept. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572, JAPAN
Tel: 0720-31-8111 Fax: 0720-33-5222
ONKYO U.S.A CORPORATION
200 Williams Drive, Ramsey, N.J. 07446, U.S.A.
Tel: 201-825-7950 Fax: 201-825-8150
ONKYO DEUTSCHLAND GMBH ELECTRONICS
industriestrasse 18-20, 82110 Germering, GERMANY
Tel: 089 84 93 20 Fax: 089 84 93 226
ONKYO FRANCE
Immeuble Le Diamant, Domaine Technologique de Saclay, 4 Rue René Razel,
91892 SACLAY, FRANCE Tel: (1) 69 33 14 00 Fax: (1) 69 41 35 84
SN 29342083Y
107960

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
