Onkyo A-9210 User Manual

For more information about buttons or
knobs, turn to page number listed in the [ ].

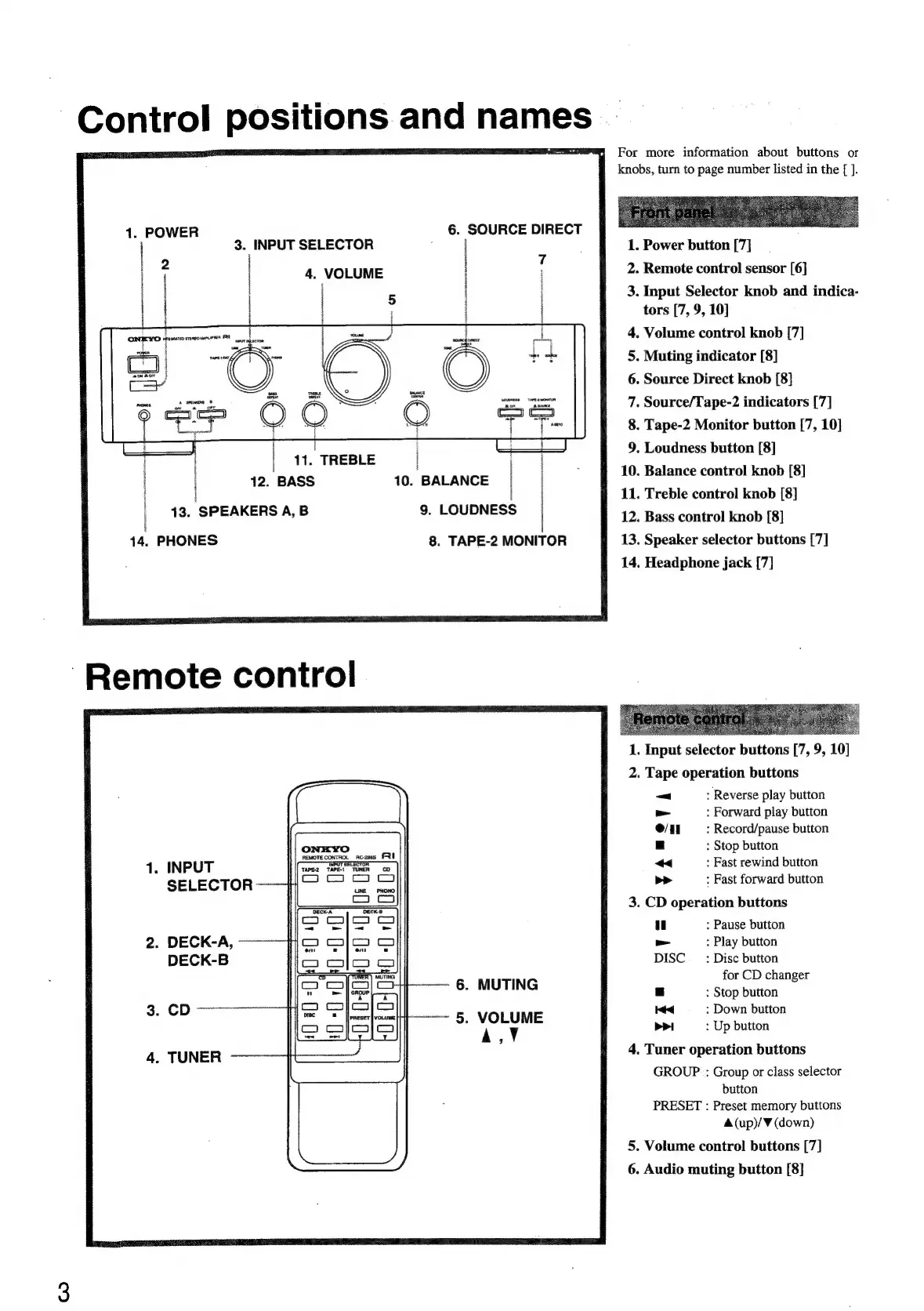

Control
positions
and
names
1.
POWER
6.
SOURCE
DIRECT
3.
INPUT
SELECTOR
1. Power
button
[7]
4. VOLUME : 2. Remote control sensor [6]
3. Input Selector knob and indica-
tors [7, 9, 10]
4. Volume control knob [7]
5, Muting indicator [8]
6. Source Direct knob [8]
7. Source/Tape-2 indicators [7]
8. Tape-2 Monitor button [7, 10]
9, Loudness button [8]
10. Balance control knob [8]
i 11. Treble control knob [8]
13.
SPEAKERS
A,
B
9.
LOUDNESS
12.
Bass
control
knob
[8]
14. PHONES 8. TAPE-2 MONITOR 13. Speaker selector buttons [7]
14, Headphone jack [7]
11. TREBLE
12. BASS 10. BALANCE
—
. Input selector buttons [7, 9, 10]
2. Tape operation buttons
—a : Reverse play button
= : Forward play button
O/1 : Record/pause button
NEYO = a : Stop button
.
INPUT
wren
«<
:
Fast
rewind
button
SELECTOR
~~}
co
b>
:
Fast
forward
button
3. CD operation buttons
ul : Pause button
.
DECK-A,
;
a
:
Play
button
DECK-B
DISC
_
:
Disc
button
% ORE for CD changer
6. MUTING = : Stop button
. CD- ited : Down button
> ae ME PPI : Up button
3
4. Tuner operation buttons
GROUP : Group or class selector
button
PRESET : Preset memory buttons
A(up)/¥ (down)
. Volume control buttons [7]
NM . Audio muting button [8]

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
