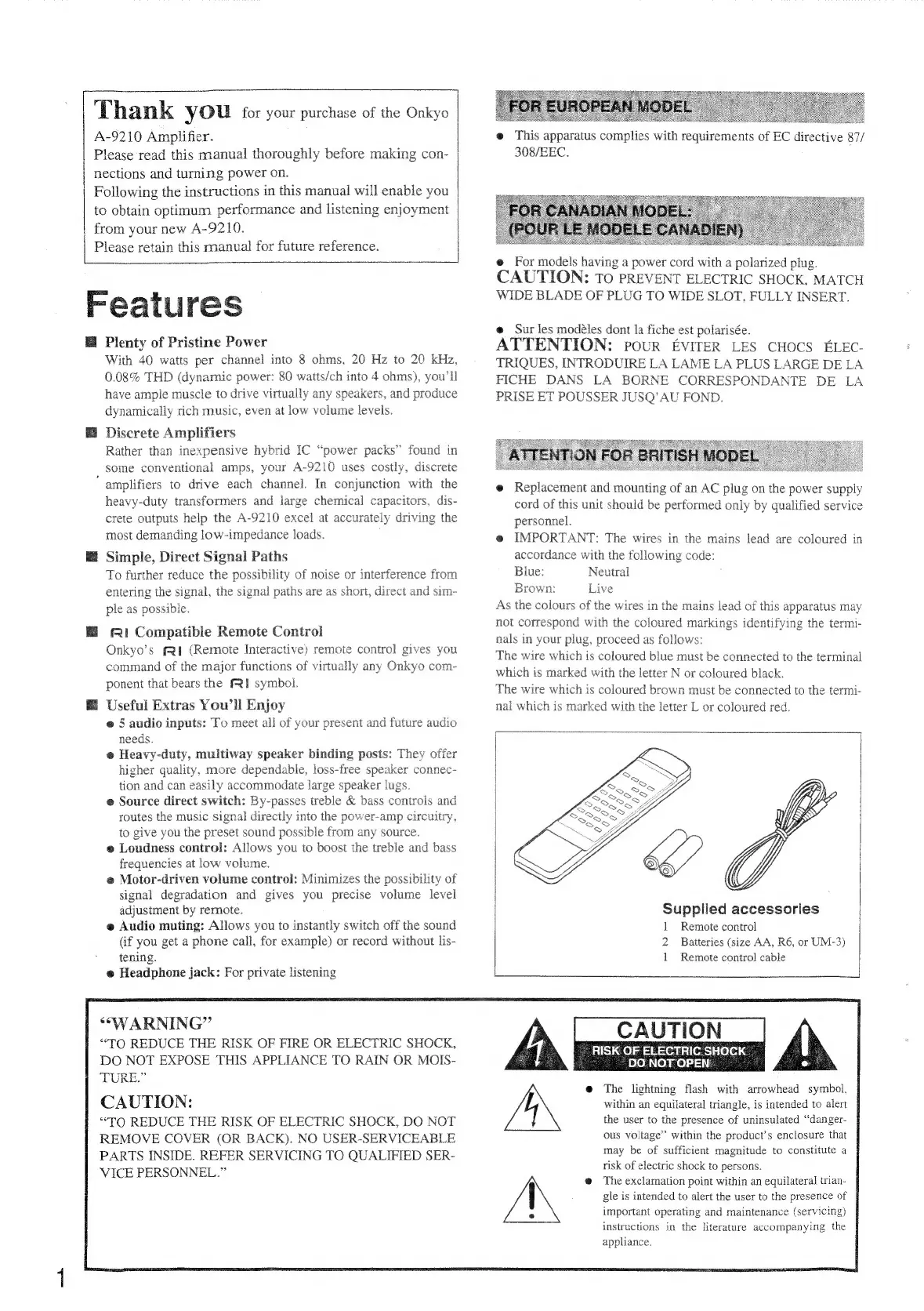

Onkyo A-9210 User Manual

Thank YOU for your purchase of the Onkyo
A-9210 Amplifier.
Please read this manual thoroughly before making con-
nections and turning power on.
Following the instructions in this manual will enable you
to obtain optimum performance and listening enjoyment
| from your new A-9210.
Please retain this manual for future reference. i
Features
Plenty of Pristine Power
With 40 watts per channel into 8 ohms, 20 Hz to 20 kHz,
0.08% THD (dynamic power: 80 watts/ch into 4 ohms), you'll
have ample muscle to drive virtually any speakers, and produce
dynamically rich music, even at low volume levels.
fi Discrete Amplifiers
Rather than inexpensive hybrid IC “power packs” found in
some conventional amps, your A-9210 uses costly, discrete
; amplifiers to drive each channel. In conjunction with the
heavy-duty transformers and large chemical capacitors, dis-
crete outputs help the A-9210 excel at accurately driving the
most demanding low-impedance loads.
& Simple, Direct Signal Paths
To further reduce the possibility of noise or interference from
entering the signal, the signal paths are as short, direct and sim-
ple as possible.
& ri Compatible Remote Control
Onkyo’s fQ} (Remote Interactive) remote control gives you
command of the major functions of virtually any Onkyo com-
ponent that bears the FRY symbol,
& Useful Extras You'll Enjoy
® § audio inputs: To meet all of your present and future audio
needs.
@ Heavy-duty, multiway speaker binding posts: They offe:
higher quality, more dependable, loss-free speaker connec-
tion and can easily accommodate large speaker lugs.
® Source direct switch: By-passes treble & bass controls and
routes the music signal directly into the power-amp circuitry,
to give you the preset sound possible from any source.
® Loudness control: Allows you to boost the treble and bass
frequencies at low volume,
@ Motor-driven volume control: Minimizes the possibility of
signal degradation and gives you precise volume level
adjustment by rernote.
® Audio muting: Allows you to instantly switch off the sound
(if you get a phone cail, for example) or record without lis-
tening.
® Headphone jack: For private listening
“WARNING”
“TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
TURE.”
CAUTION:
“TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SER-
VICE PERSONNEL.”
® This apparatus complies with requirements of EC directive 87/
308/EEC. .
® For models having a power cord with a polarized plug.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
@ Sur jes modéles dont la fiche est polarisée.
ATTENTION: pour EVITER LES CHOCS ELEC-
TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA
PRISE ET POUSSER JUSQ’ AU FOND.
@ Replacement and mounting of an AC plug on the power supply
cord of this unit should be performed only by qualified service
personnel.
@ IMPORTANT: The wires in the mains lead are coloured in
accordance with the following code:
Biue: Neutral ;
Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the termi-
nals in your plag, proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the termi-
nal which is marked with the letter L or coloured red.
Supplied accessories
1 Remote control
2 Batteries (size AA, R6, or UM-3)
1 Remote control cable
_ RISK OF ELECTRIC.
a | DO NOT OPEN
@ The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated ‘“‘danger-
ous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a |
risk of electric shock to persons.
The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
