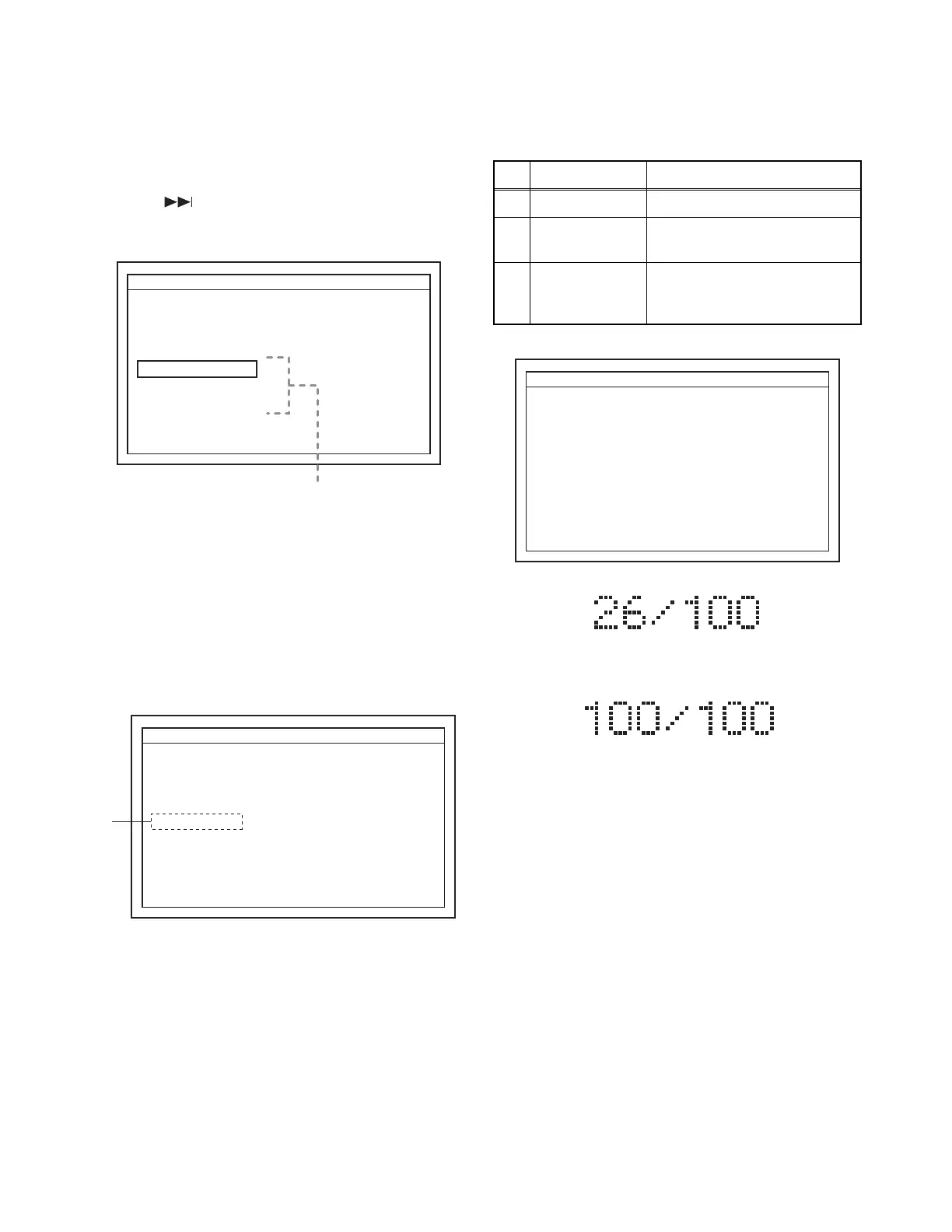

1-7-1 E5WF0FW
FIRMWARE RENEWAL MODE
Note: The file extension of the available firmware is
“b40”.
1. Turn the power on and remove the disc on the tray
and close the tray.
2. Press [ ] (skip up), [6], [5], and [4] buttons on
the remote control unit in that order.
Fig. a appears on the screen.
Fig. a Version Up Mode Screen (Example)
3. Select “Disc” or “USB” and press [ENTER] button
on the remote control unit. The tray will open
automatically, if “Disc” is selected.
4. Insert the disc or USB Flash Drive for version up.
5. The BD player enters the F/W version up mode
automatically. Fig. b will appear on the screen.
Make sure to insert the proper F/W for the state of
this model.
Fig. b Programming Mode Screen (Example)
The appearance shown in (*1) of Fig. b is
described as follows:
Fig. c Version Up Mode
Fig. d VFD in Version Up Mode
6. After the update, Fig. e will appear on the VFD and
the power will turn off automatically.
Fig. e
VFD upon Finishing the Programming Mode (Example)
7. The power turns on automatically. If disc mode
was selected, the tray will open automatically.
Remove the disc or USB Flash Drive from the unit.
Note: All the settings will be put back to factory-
default.
The following USB Flash Drive can be used for
software update. Make sure to use a device that has
enough space.
USB Flash Drive (FAT16/FAT32 file system)
Choose “USB” at Fig. a. when using a SD Card that
is connected to a Card Reader. Otherwise, the unit
will not be updated if “SD Card” is selected.
"
*
" differ depending on the models.
F/W Version Mode
Please select software update mode.
Disc
USB
SD Card
F/W Name : ******* Ver *.**.**
The available software update mode will
differ depending on the model type.
"
*
" differ depending on the models.
F/W Version Mode
Loading Disc...
F/W Name : ******* Ver *.**.**
(*1)
No. Appearance State
1 Loading Disc Loading the disc
2 Reading...
Sending files into the
memory.
3 See FLD.
Writing new version data,
the progress will be displayed
as shown in Fig. d.
"
*
" differ depending on the models.
F/W Version Mode
F/W Name : ******* Ver *.**.**
1. ALL
Version : *.**.**
CHECKSUM : ****
***************.b40
See FLD.
The unit will automatically turn off when update is completed,
and automatically turns back on.
