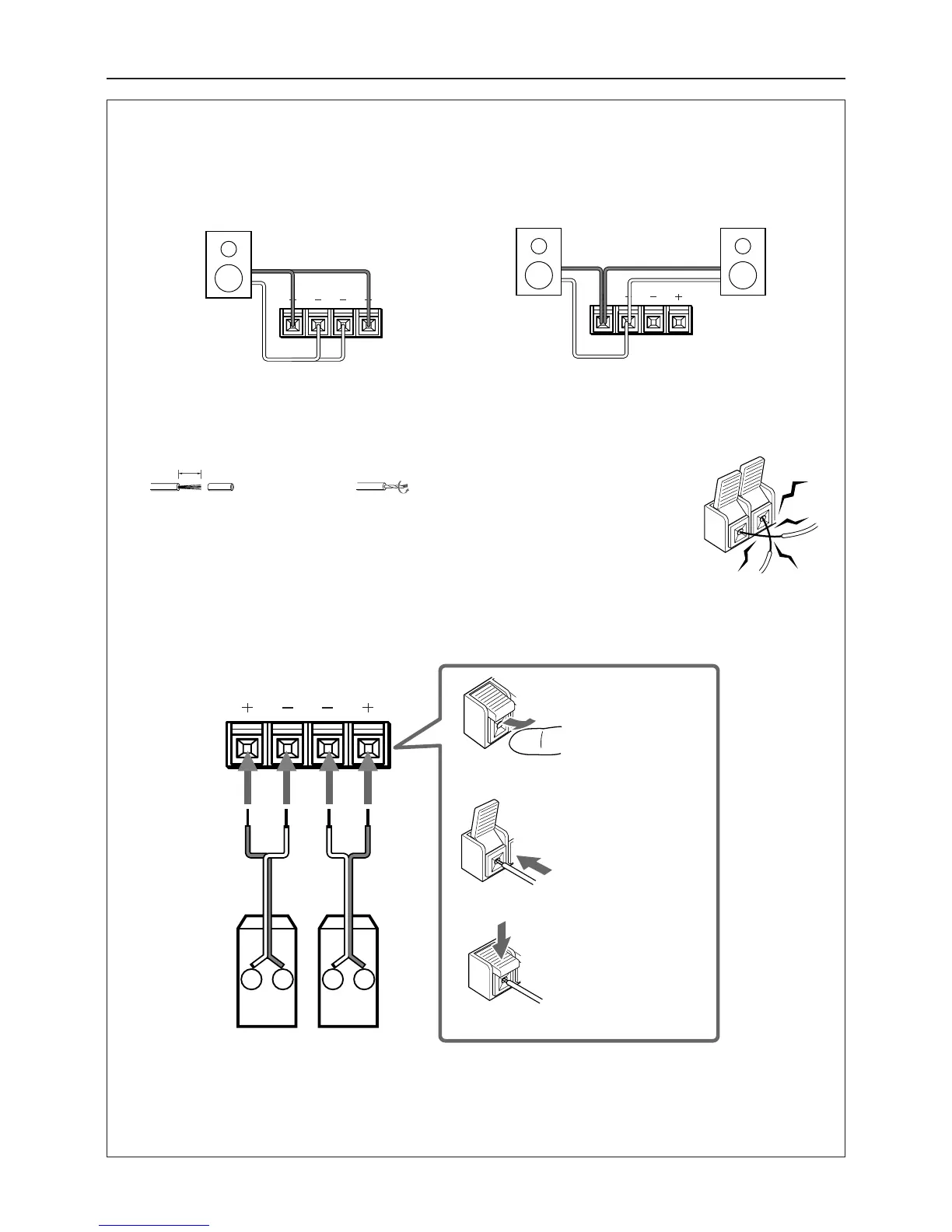

Connecting speaker systems
Connecting left and right speakers
• The load impedance of each speaker must be at least 4 ohms.
• Do not use unnecessarily long or extremely thin speaker cords. Otherwise, the DC resistance of the speaker cords may become too
high, lowering the damping factor and causing the sound quality to deteriorate.
• Do not connect the speaker cord to the L and R connectors at the same time and do not connect two or more speakers to the same
speaker connectors.
Connecting the speaker cords to the speaker connectors
1. Strip 12 mm from the
end of each cord.
2. Twist the stripped end
of the cord.
Note
To prevent damage to circuits never
short-circuit the positive (+) and
negative (-) speaker wires.
3. Press down the lever. The
wire of the stripped end
of the cord should appear
slightly.
NO
NO NO
12mm (1/2”)
RL
SPEAKERS
RL
SPEAKERS
RL
SPEAKERS
–
+
–
+
1. Push the lever up.
2. Insert the stripped end of
the cord.
Preparing the speaker cords for connection
Right ch.
Speaker
Left ch.
Speaker
