19
Connecting Other Components—Continued

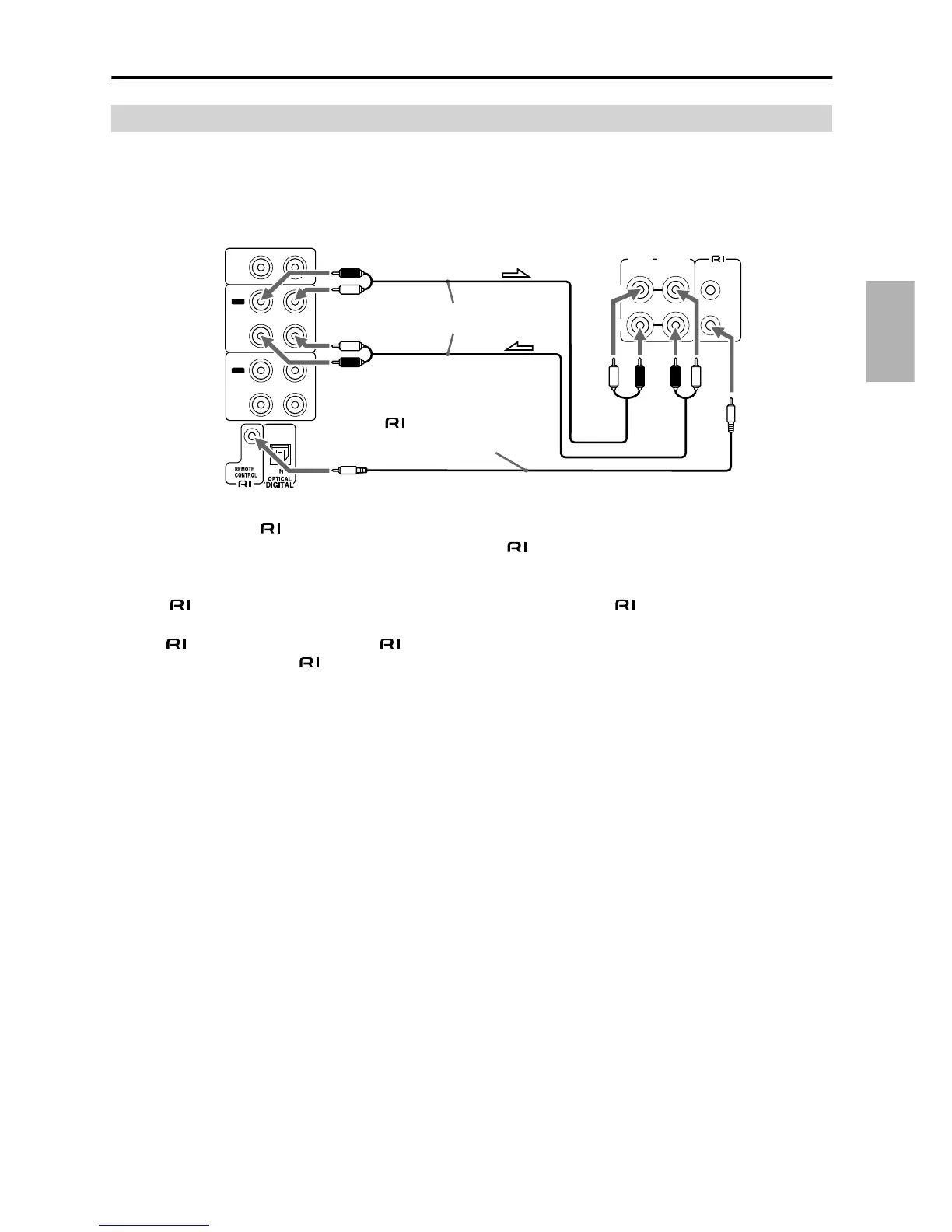

The following diagram shows how to connect an optional Onkyo MD recorder.
Connect the CD receiver’s MD/TAPE OUT jacks to the MD recorder’s INPUT (REC) jacks, and connect the CD
receiver’s MD/TAPE IN jacks to the MD recorder’s OUTPUT (PLAY) jacks.
What can you do with ?
• Connecting an Onkyo MD recorder to the CD receiver with an cable allows you to control the MD recorder with
the CD receiver’s remote controller. In addition, when playback is started on the MD recorder, the CD receiver will
automatically select it as the input source.
•To use , you must connect the Onkyo MD recorder to the CD receiver with an cable and an analog audio cable
(RCA). In addition, the Input Display for the MD/TAPE jacks must be set to “MD” (see page 27).
• Some -capable components have two jacks. They’re both the same, so you can use either one. The extra jack
is for connecting additional -capable components.
Note:
• The MD/TAPE jacks can alternatively be used to connect a VCR or DAT recorder, in which case the Input Display
on the CD receiver would need to be set to “VCR” or “DAT” respectively (see page 27).
Connecting an Onkyo MD recorder
IN
IN
R
LINE 1
MD/
TAPE
L
IN
OUT
OUT
DOCK/
CDR
(REC) (PLAY)
INPUT OUTPUT
REMOTE
CONTROL
L
R
Onkyo MD recorder’s
rear panel
Analog audio cables (RCA)
cable supplied with
the Onkyo MD recorder
White
Red
White
Red Red
Red
White White
CD receiver’s
rear panel
To Next Page
