22
Connecting Other Components—Continued

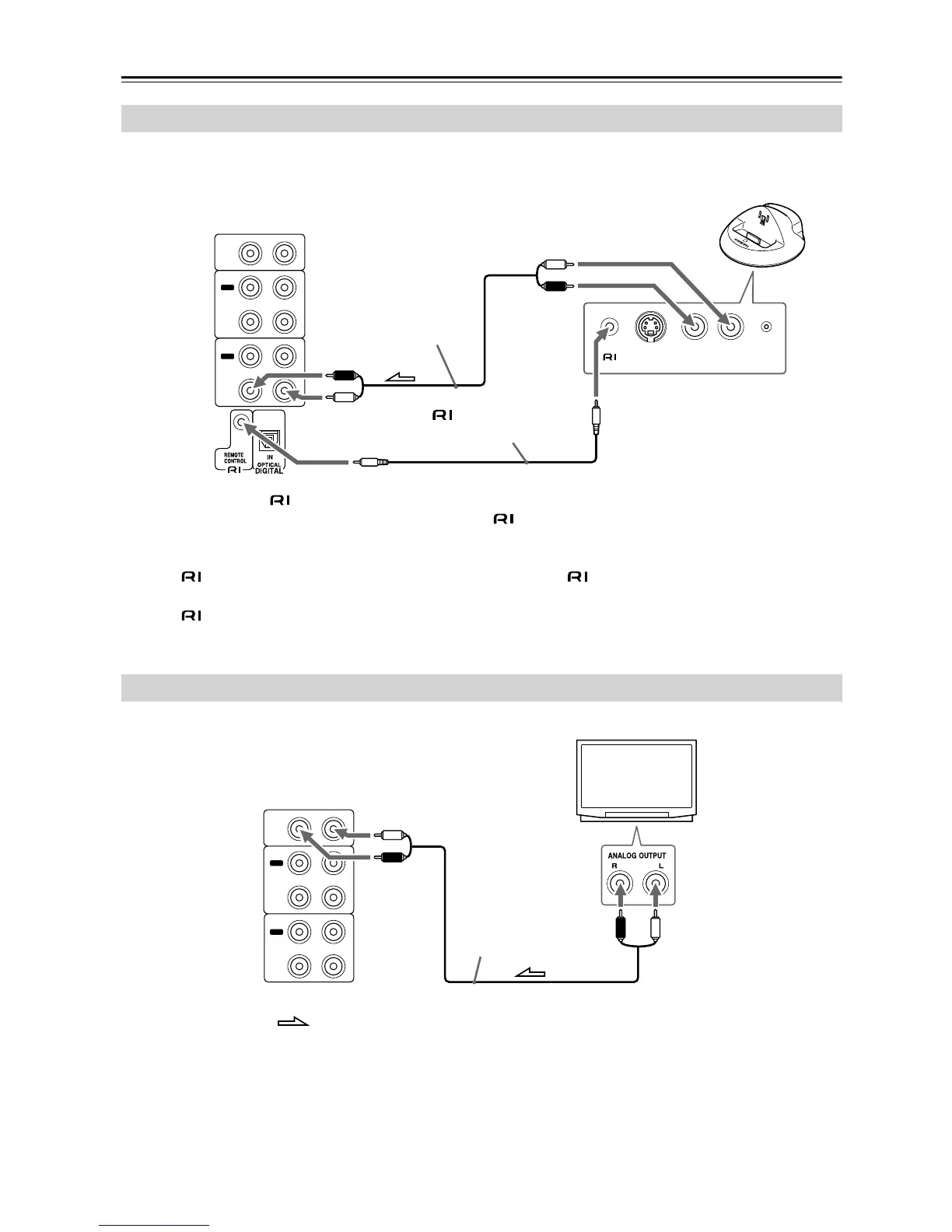

The following diagram shows how to connect an optional Onkyo RI Dock (Remote Interactive Dock).
Connect the CD receiver’s DOCK/CDR IN jacks to the RI Dock’s AUDIO OUT jacks.
What can you do with ?
• Connecting an Onkyo RI Dock to the CD receiver with an cable allows you to control the RI Dock with the CD
receiver’s remote controller. In addition, when playback is started on the RI Dock, the CD receiver will automatically
select it as the input source.
•To use , you must connect the RI Dock to the CD receiver with an cable and an analog audio cable (RCA).
On the RI Dock, set the MODE switch to “HDD.” See the RI Dock’s instruction manual for details.
•To use , the Input Display for the DOCK/CDR jacks must be set to “DOCK.” Since this is the default setting,
unless you’ve changed it, it can be left as it is (see page 27).
Connect the CD receiver’s LINE 1 IN jacks to the TV’s audio output jacks.
Hint:
To listen to the TV, select the LINE 1 input source.
Connecting an Onkyo RI Dock (Remote Interactive Dock)
IN
IN
R
LINE 1
MD/
TAPE
L
IN
OUT
OUT
DOCK/
CDR
R
AUDIO OUT DC INS VIDEO OUT
----
L
CD receiver’s
rear panel
White
Red
Red
White
Analog audio cable (RCA)
cable supplied
with the RI Dock
Onkyo RI Dock’s rear
panel
Connecting a TV
IN
IN
R
LINE 1
MD/
TAPE
L
IN
OUT
OUT
DOCK/
CDR
: Signal flow
CD receiver’s
rear panel
White
Red
Red
White
Analog audio cable (RCA)
TV
To Next Page
