13

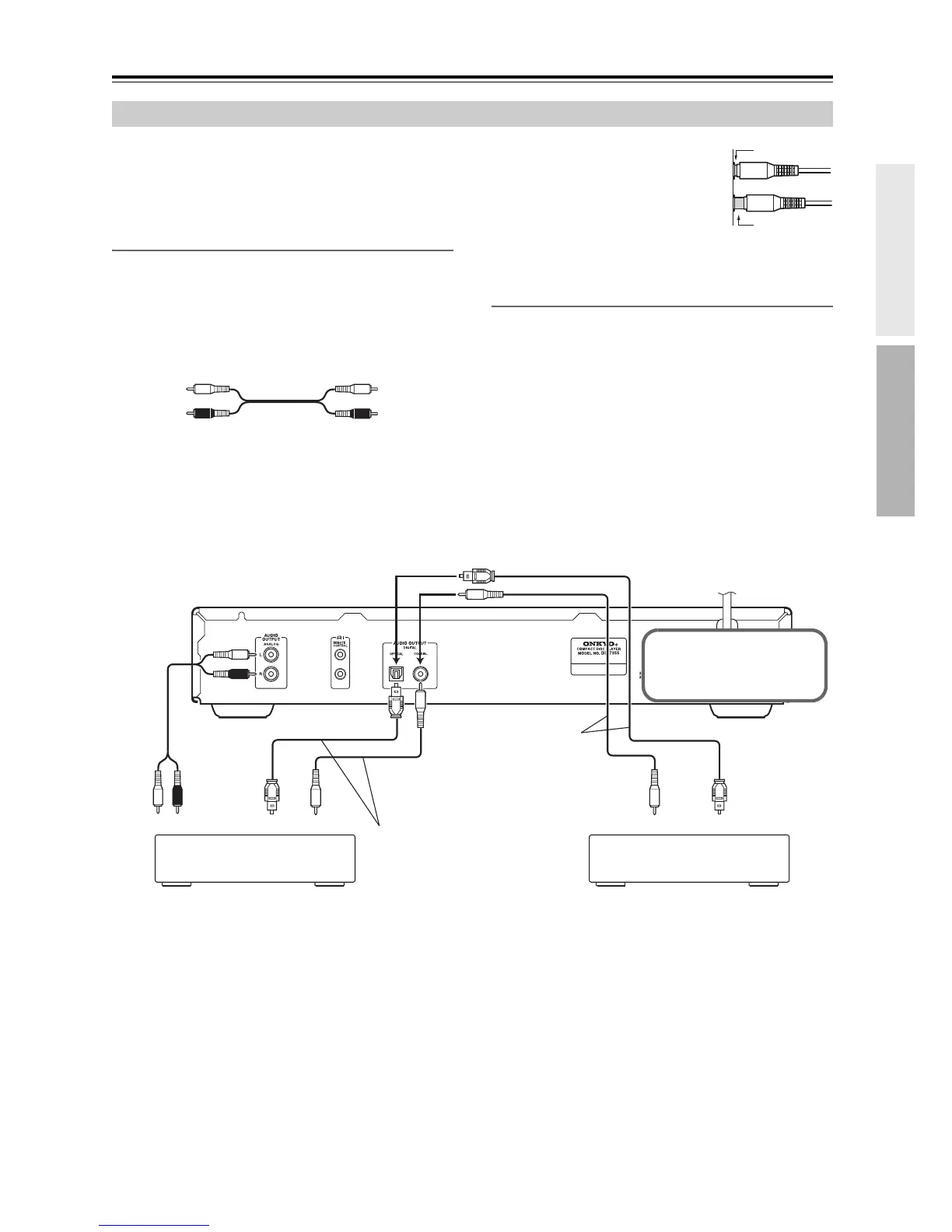

Connecting the DX-7355
• Before making any connections, read the manuals
supplied with your other components.
• Don’t connect the power cord until you’ve completed
and double-checked all connections.
Connection Color Coding
RCA-type audio connections are usually color-coded:
red and white. Use red plugs to connect right-channel
audio inputs and outputs (typically labeled “R”). Use
white plugs to connect left-channel audio inputs and out-
puts (typically labeled “L”).
• Push plugs in all the way to make
good connections (loose connec-
tions can cause noise or malfunc-
tions).
• To prevent interference, keep
audio cables away from power
cords and speaker cables.
Optical Digital Jack
The DX-7355’s optical digital jack has a shutter-type
cover that opens when an optical plug is inserted and
closes when it’s removed. Push the plug in all the way.
Caution: To prevent shutter damage, hold the optical
plug straight when inserting and removing.
Note:
Do not put anything on top of the DX-7355, as it may
interfere with proper ventilation.
Audio Connections
Left (white)
Right (red)
Analog audio
cable
Left (white)
Right (red)
Right!
Wrong!
RCA/phono
audio cable
CD-R, MiniDisc, DAT recorder
Hi-fi amp, AV receiver
CD
R
L
Connect one or
the other
Coaxial cable
(not supplied)
Connect one or
the other
Optical IN Coaxial IN
Coaxial cable
(not supplied)
Disconnect the power
cord before making any
connections!
Optical fiber
cable (not
supplied)
Optical fiber cable
(not supplied)
Optical INCoaxial IN
