En-11
Connections
Connecting the AV
Receiver
Connecting the Speaker Cables

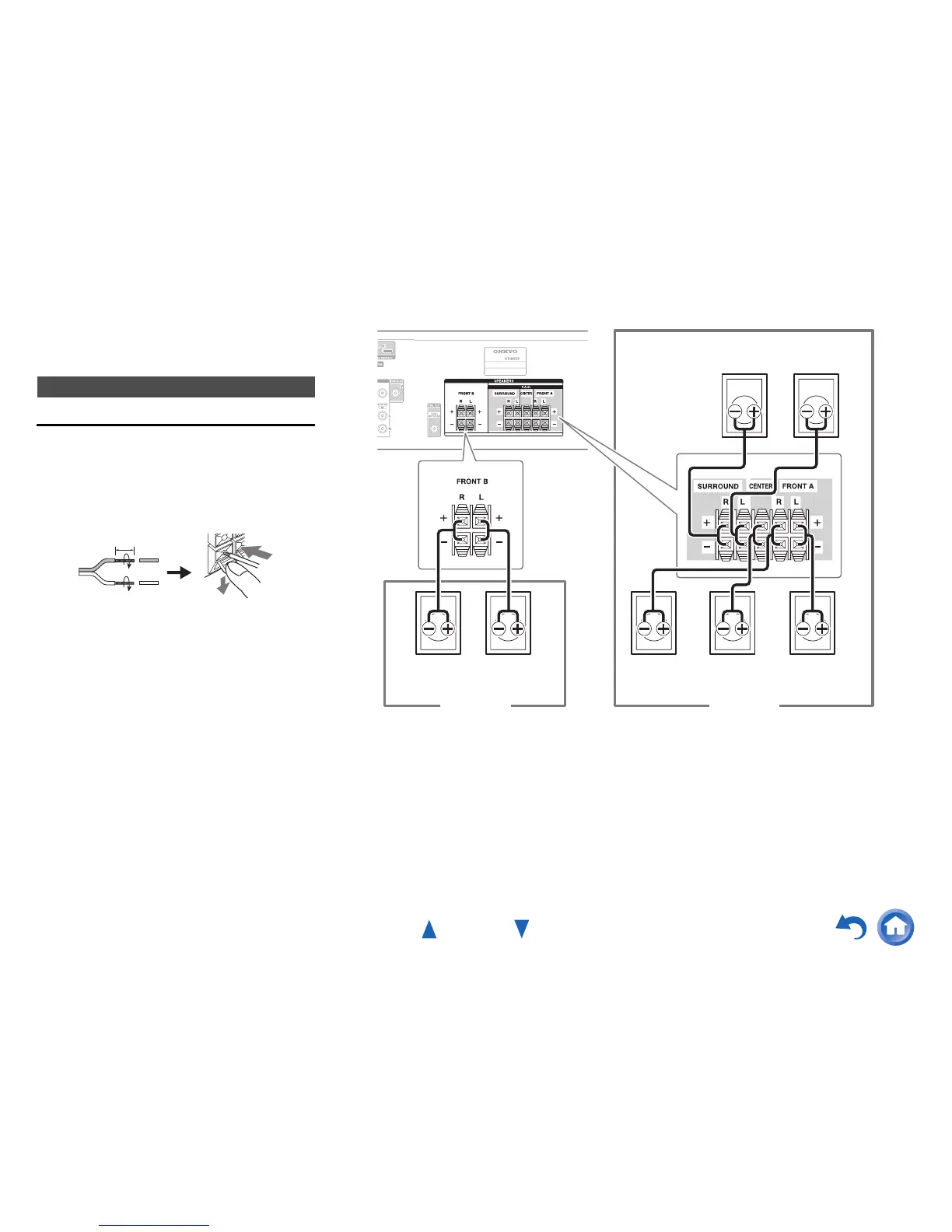

The following illustration shows how to connect the
speakers to each pair of terminals.
■ Push-type speaker terminals
Strip 10 to 12 mm of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown
(Supplied speaker cables are already stripped).
Connecting Your Speakers
10 to 12 mm
Surround
right
Surround
left
Front B right Front B left Front A leftFront A right Center
Speakers ASpeakers B
To Next Page
