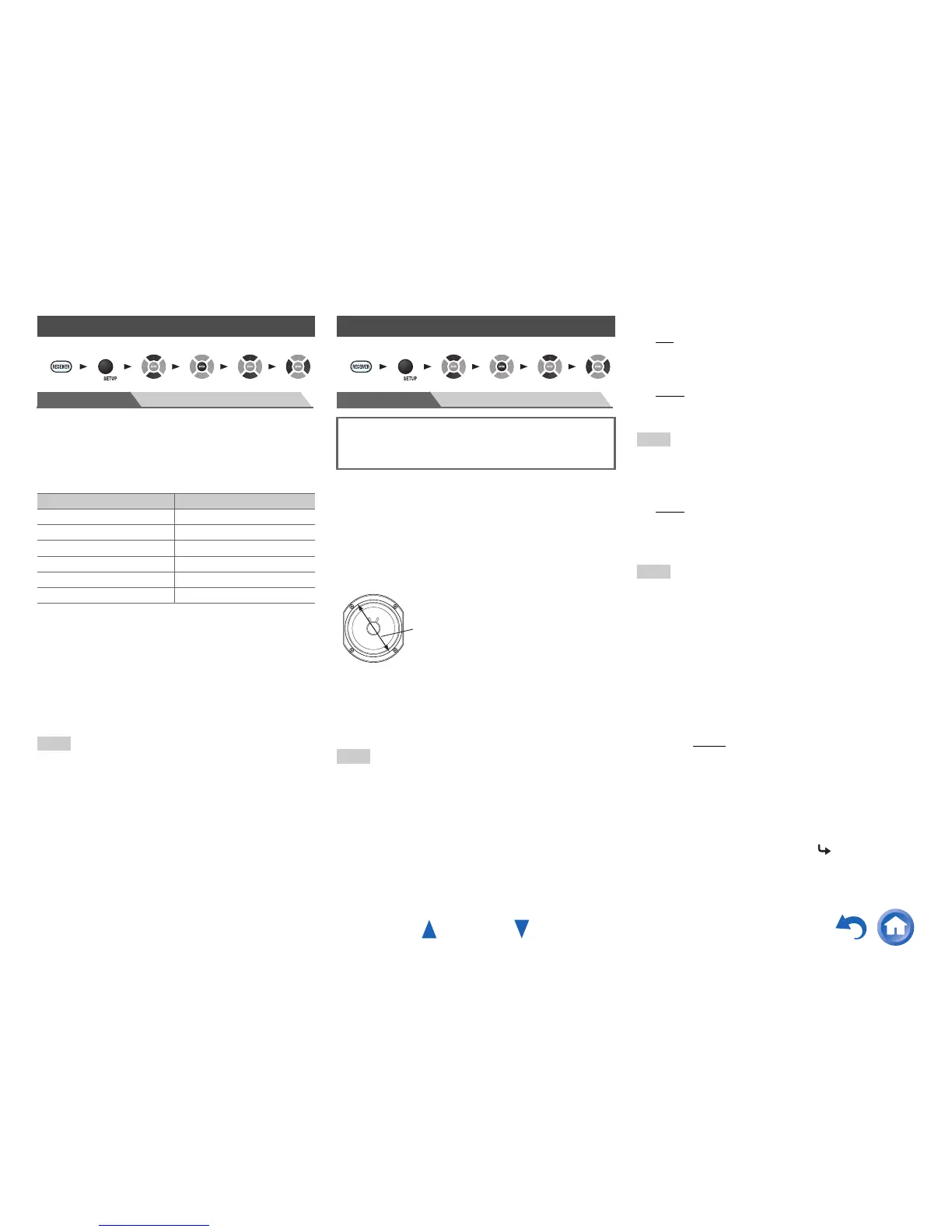

Advanced Operations
En-42
Menu Digital Audio
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example, if
you connect your CD player to the OPTICAL IN 1, you
must assign “OPTICAL1” to the “TV/CD” input selector.
Here are the default assignments.
■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` COAXIAL, OPTICAL1, OPTICAL2:
Select the input to which the component has been
connected.
` -----:
Select if the component is connected to an analog
audio input.
Note
•When an HDMI IN is assigned to an input selector in
“HDMI Input” (➔ page 41), the same HDMI IN will be set as
a priority in this assignment. In this case, if you want to use the
coaxial or optical audio input, make the appropriate selection in
the “Audio Selector” (➔ page 47).
• Available sampling rates for PCM signals (stereo/mono) from a
digital input (optical and coaxial) are 32/44.1/48/88.2/96 kHz/16,
20, 24 bit.
•The “TUNER” selector cannot be assigned and is fixed at the
“-----” option.
Menu Sp Config
Here you can check the settings made by Audyssey 2EQ
Room Correction and Speaker Setup, or set them manually,
which is useful if you change one of the connected
speakers after using Audyssey 2EQ Room Correction and
Speaker Setup.
This section explains how to specify which speakers are
connected and their sizes.
For speakers with a cone diameter larger than 16 cm,
specify Large (full band). For those with a smaller
diameter, specify Small (default crossover 150 Hz).
The crossover frequency can be changed in the “Crossover
(Crossover Frequency)”.
Note
• These settings are not available in either of the following cases:
– A pair of headphones is connected.
–The “Audio TV Out” setting is set to “On” (➔ page 49).
–“HDMI Ctrl (RIHD)” is set to “On” (➔ page 48) and you’re
listening through your TV speakers.
– Speakers B is on.
– Speakers A is off.
■ Subwoofer
` Yes
` No
■ Front
` Small:
` Large:
Select based on the cone diameter.
Note
• If the “Subwoofer” setting is set to “No”, this setting is fixed to
“Large”.
■ Center
*1
, Surround
*1
` Small:
` Large:
Select based on the cone diameter.
` None
Note
*1
If the “Front” setting is set to “Small”, the “Large” option
cannot be selected.
■ Crossover (Crossover Frequency)
This setting is advantageous for the speakers that you
specified as “Small” in the “Sp Config (Speaker
Configuration)”. To get the best bass performance from
your speaker system, you need to set the crossover
frequency according to the size and frequency response
of your speakers.
` 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz,
120Hz, 150Hz, 200Hz
Use the diameter of the smallest speaker in your system
when choosing the crossover frequency.
Digital Audio (Digital Audio Input)
Input selector Default assignment
BD/DVD COAXIAL
VCR/DVR - - - - -
CBL/SAT - - - - -
GAME OPTICAL1
AUX - - - - -
TV/CD OPTICAL2
123456
Sp Config (Speaker Configuration)
Some of the settings in this section are set automatically
by Audyssey 2EQ
®
Room Correction and Speaker Setup
(➔ page 27).
123456
Cone diameter
To be continued
