Connections
En-16
Connect your components to the appropriate jacks. The
default input assignments are shown below.
See “Connection Tips and Video Signal Path” for more
information (➔ page 63).
✔: Assignment can be changed (➔ pages 41, 42).
Note
*1
When USB input is selected, you can input video signals from
the AUX INPUT VIDEO jack. Video signals input from AUX
INPUT VIDEO will be output from the MONITOR OUT jack.
*2
Do not connect the AV receiver’s USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way.
*3
Connect a turntable (MM) that has a phono preamp built-in. If
your turntable (MM) doesn’t have it, you’ll need a
commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable’s
manual for details.
• With connection D, you can enjoy Dolby Digital and
DTS.
• With connection F, if your Blu-ray Disc/DVD player has
both the main stereo and multichannel outputs, be sure to
connect to the main stereo.
■ How to record a video source
With the connections described above, you cannot record
the videos through the AV receiver. See “Recording” about
connections for video recording (➔ page 38).

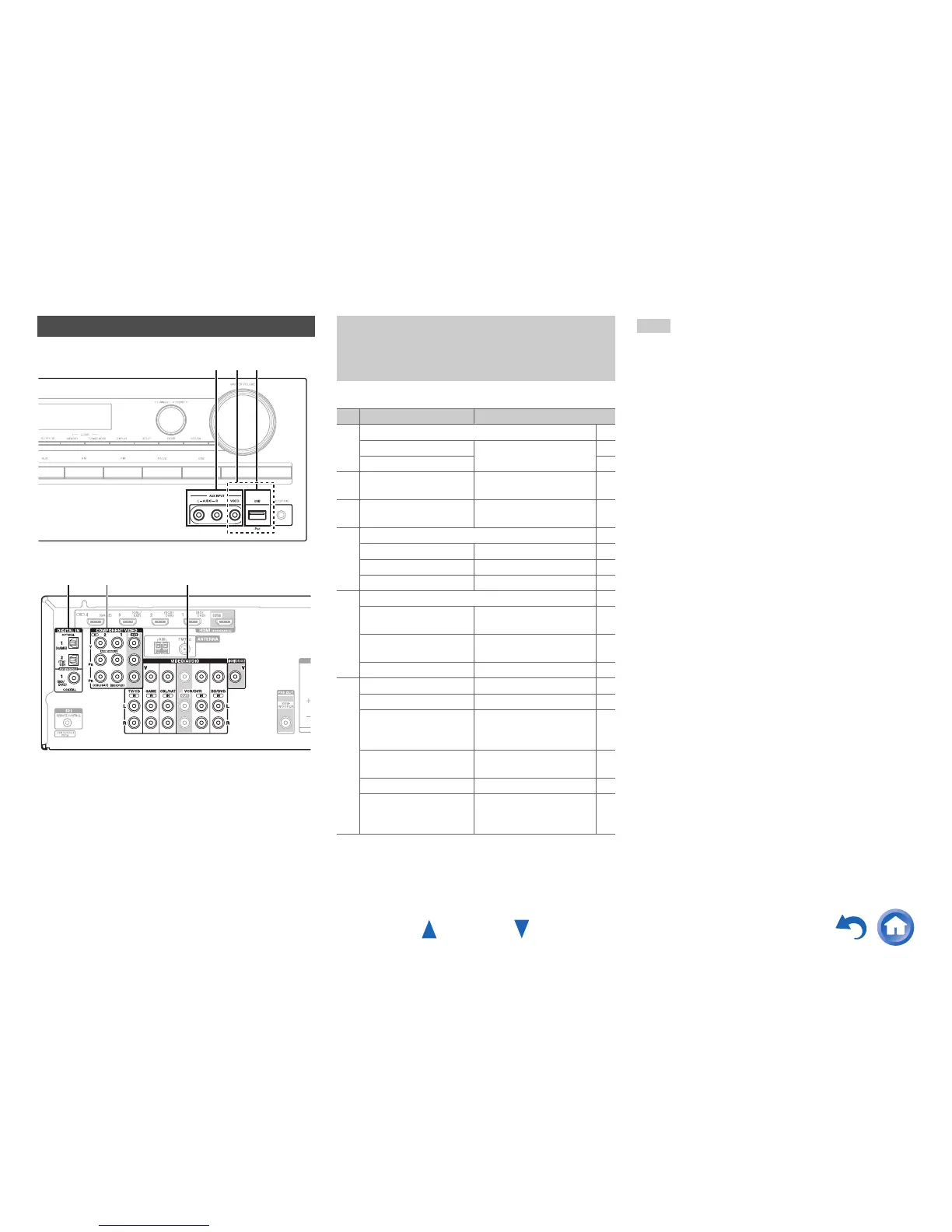

Connecting Your Components
A CB
EDF
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
No. Jack/Port Components
A
AUX INPUT
VIDEO Camcorder, etc.
AUDIO L/R
B
USB, AUX INPUT
VIDEO
*1
iPod/iPhone (video
playback)
C
USB
*2
iPod/iPhone, MP3 player,
USB flash drive
D
DIGITAL IN
OPTICAL 1 (GAME) Game console ✔
OPTICAL 2 (TV/CD) TV, CD player ✔
COAXIAL (BD/DVD) Blu-ray Disc/DVD player ✔
E
COMPONENT VIDEO
IN 1 (BD/DVD) Blu-ray Disc/DVD player,
RI dock
✔
IN 2 (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
OUT TV, projector, etc.
F
MONITOR OUT TV, projector, etc.
BD/DVD IN Blu-ray Disc/DVD player
VCR/DVR IN VCR, DVD recorder/
digital video recorder, RI
dock
CBL/SAT IN Satellite/cable set-top box,
etc.
GAME IN Game console, RI dock
TV/CD IN TV, CD player, cassette
tape deck, MD, CD-R,
Turntable
*3
, RI dock
