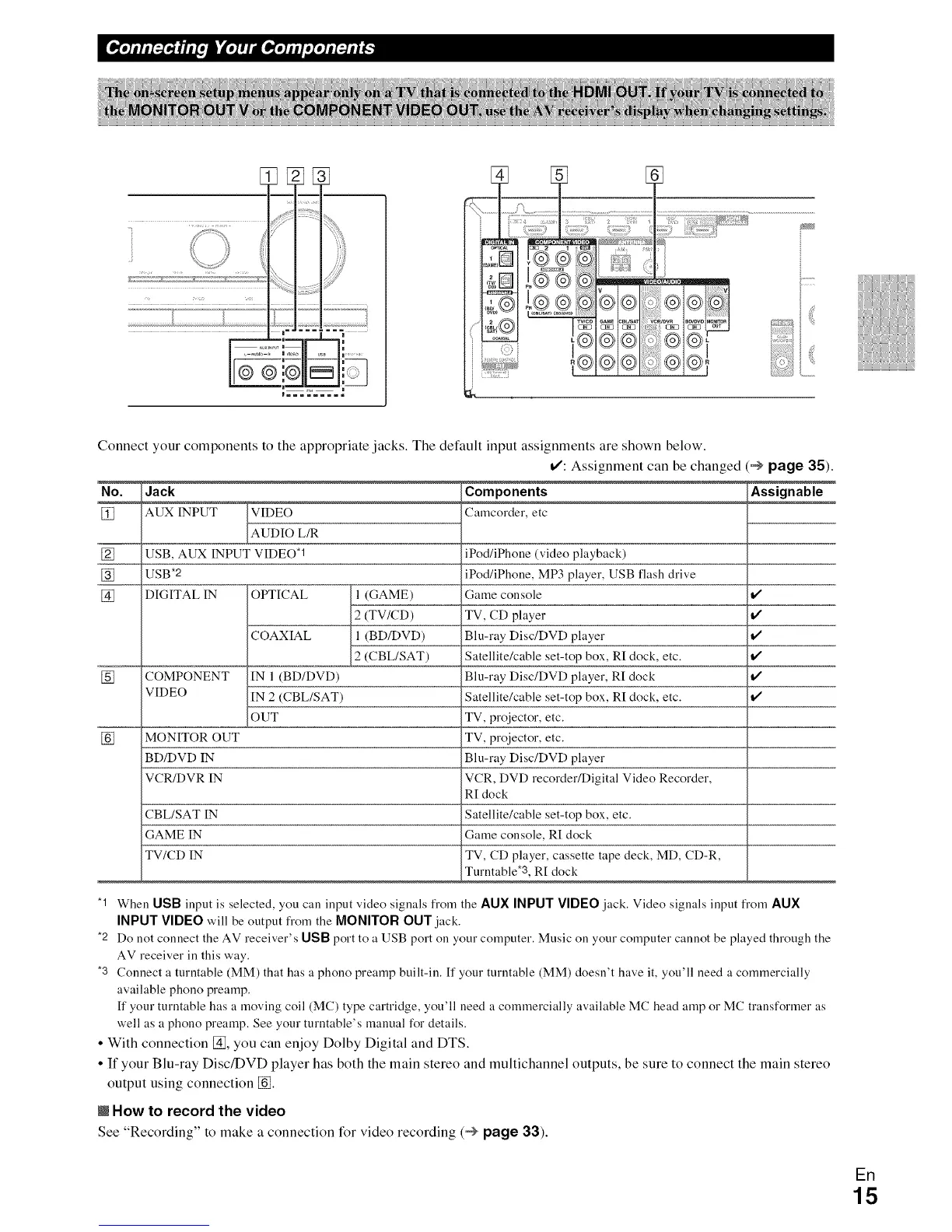

Connect your components to the appropriate jacks. The default input assignments are shown below.
_,/: Assignment can be changed (@ page 35).
No. Jack Components Assignable
[] AUX INPUT ]_ Camcorder, etc
] AUDIO L/R
[] USB, AUX INPUT VIDEO*I iPod/iPhone (video playback)
[] USB _2 iPod/iPhone, MP3 player, USB flash drive
[] DIGITAL IN OPTICAL 1 (GAME) Game console
2 (TV/CD) TV, CD player _/
COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player
2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc.
[] COMPONENT IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock
VIDEO IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc.
OUT TV, projector, etc.
[] MONITOR OUT TV, projector, etc.
BD/DVD IN Blu-ray Disc/DVD player
VCR/DVR IN VCR, DVD recorder/Digital Video Recorder,
RI dock
CBL/SAT IN Satellite/cable set-top box, etc.
GAME IN Game console, RI dock
TV/CD IN TV, CD player, cassette tape deck, MD, CD-R,
Turntable*3, RI dock
"1 When USB input is selected, you can input video signals from the AUX INPUT VIDEO jack. Video signals input from AUX
INPUT VIDEO will be output from the MONITOR OUTjack.
*2 Do not connect the AV receiver' s USB port to a USB port on your computer. Music on your computer cannot be played through the
AV receiver in this way.
*3 Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn't have it, you'll need a commercially
available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you'll need a commercially available MC head amp or MC transformer as
well as a phono preamp. See your turntable's manual for details.
• With connection [], you can enjoy Dolby Digital and DTS.
• If your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo
output using connection _.
N How to record the video
See "Recording" to make a connection for video recording (@ page 33).
En
15
