Onkyo HT-R590 Instruction Manual

Front & Rear Panels
[i_';ltIi _
(North American and Brazilian models)
i u
m© ,_,
(Asian models)
O:NKYO
i T i Y i f T i 7 i

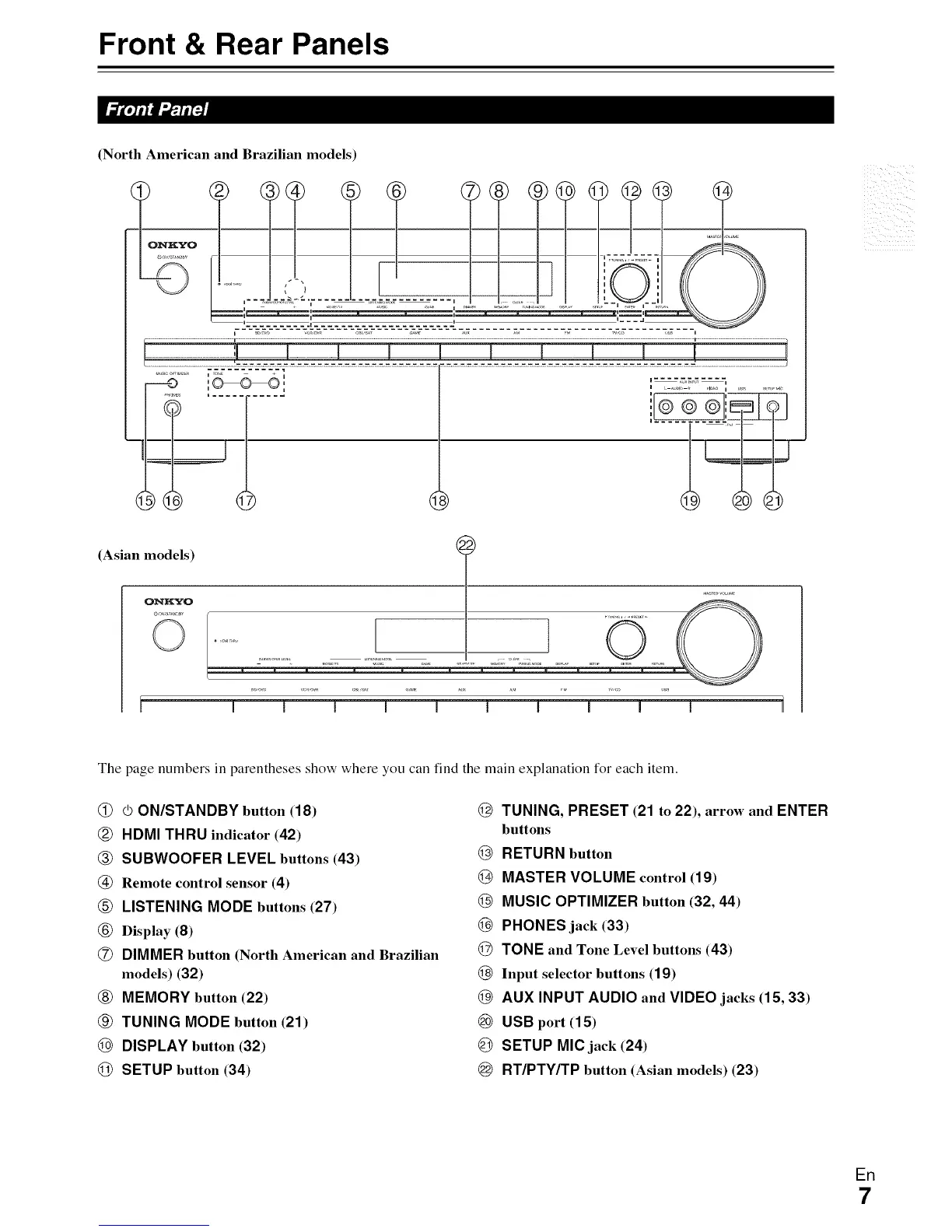

The page numbers in parentheses show where you can find the main explanation for each item.
(_) _ ON/STANDBY button (18)
(_) HDMI THRU indicator (42)
(_) SUBWOOFER LEVEL buttons (43)
@ Remote control sensor (4)
(_) LISTENING MODE buttons (27)
(_) Display (8)
(Z) DIMMER button (North American and Brazilian
models) (32)
(_) MEMORY button (22)
(_) TUNING MODE button (21)
DISPLAY button (32)
(_) SETUP button (34)
TUNING, PRESET (21 to 22), arrow and ENTER
buttons
RETURN button
O MASTER VOLUME control (19)
Q MUSIC OPTIMIZER button (32, 44)
PHONES jack (33)
Q TONE and Tone Level buttons (43)
(_ Input selector buttons (19)
(_ AUX INPUT AUDIO and VIDEO jacks (15, 33)
@ USB port (15)
SETUP MICjack (24)
RT/PTY/TP button (Asian models) (23)
Erl
7
