Rear Panel

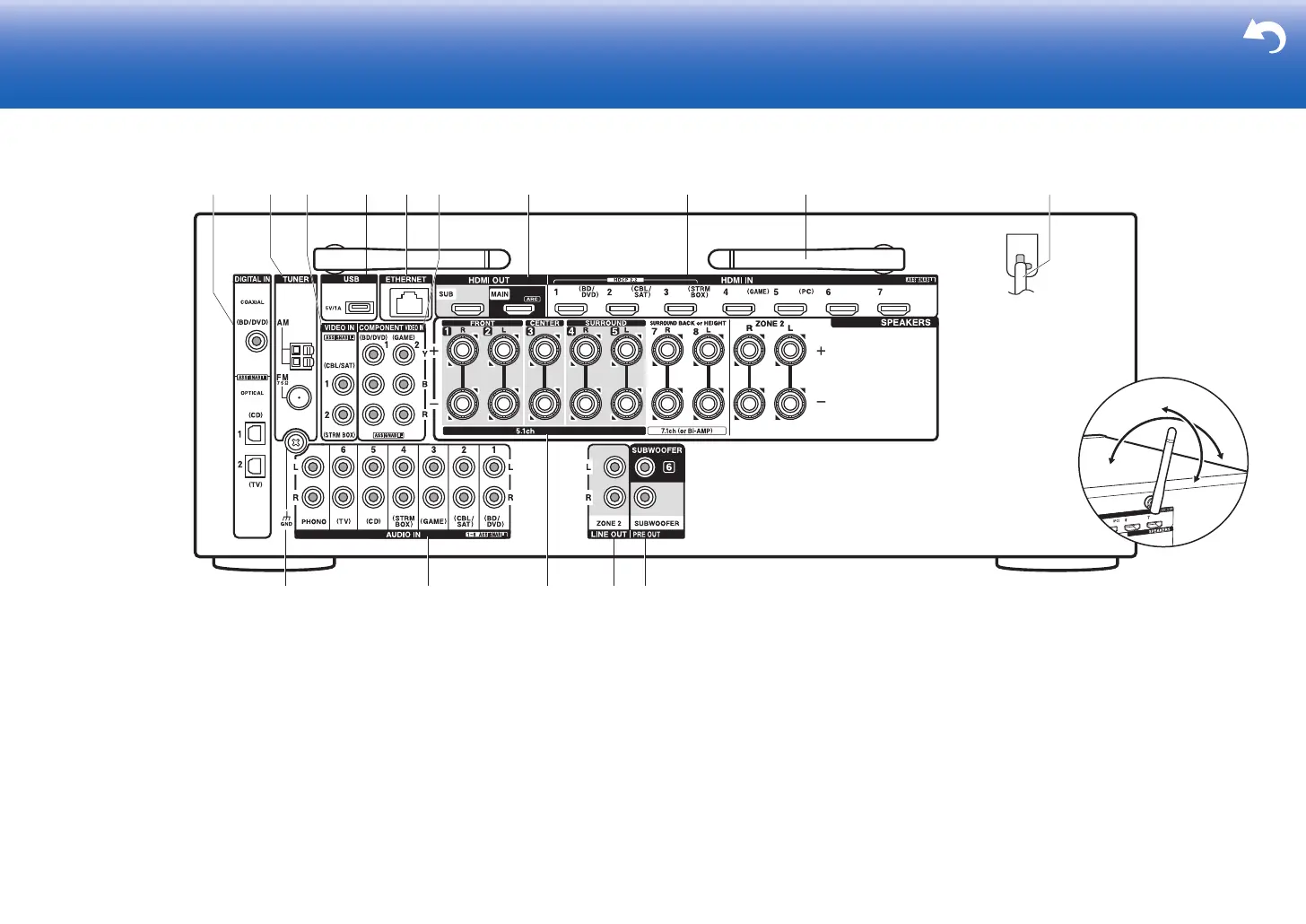

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV
component digital audio signals with a digital optical
cable or digital coaxial cable.
2. TUNER AM/FM 75Ω terminal: The supplied antennas
are connected.
3. VIDEO IN jacks: Input the video signals from AV
component with an analog video cable.
4. USB port: A USB storage device is connected so that
music files stored in it can be played. You can also
supply power (maximum 5V/1A) to USB devices with a
USB cable.
5. ETHERNET port: Connect to the network with an
Ethernet cable.
6. COMPONENT VIDEO IN jacks: Input the video signals
from AV component with a component video cable.
7. HDMI OUT jacks: Transmit video signals and audio
signals with a HDMI cable connected to a monitor such
as a TV or projector.
8. HDMI IN jacks: Transmit video signals and audio signals
with a HDMI cable connected to an AV component.
9. Wireless antenna: Used for Wi-Fi connection or when
using a BLUETOOTH enabled device. Adjust their
angles according to the connection status.
10.
Power cord
11.
GND terminal: The ground wire of the turntable is
connected.
12.
AUDIO IN jacks: Input TV or AV component audio
signals with an analog audio cable.
13.
SPEAKERS terminals: Connect speakers with speaker
cables. You can connect the multichannel speakers for
the main room and the speakers for a separate room
(ZONE 2). (North American models are compatible with
banana plugs.)
14.
ZONE 2 LINE OUT jack: Output audio signals with an
analog audio cable to a pre-main amplifier in a separate
room (ZONE 2). (
P10)
15.
SUBWOOFER PRE OUT jack: Connect a powered
subwoofer with a subwoofer cable. Up to two powered
subwoofers can be connected. The same signal is output
from each of the SUBWOOFER PRE OUT jacks.
1211 1413
109
9
8
1
23 5 764
15
