Advanced Speaker Connections
The Basic Manual explains how to connect a 5.1.2
channel system using the included speakers. Different
connection methods are introduced here.
Audio output is set to match the included speaker
configuration by default. Change the speaker configuration
to suit the number of speakers connected and the method
of connection.
•
Connect speakers with 6 Ω to 16 Ω impedance. Using
a speaker with less impedance than the supported
value may result in failure.
Connections for Different Height Speakers Types
■ Front High

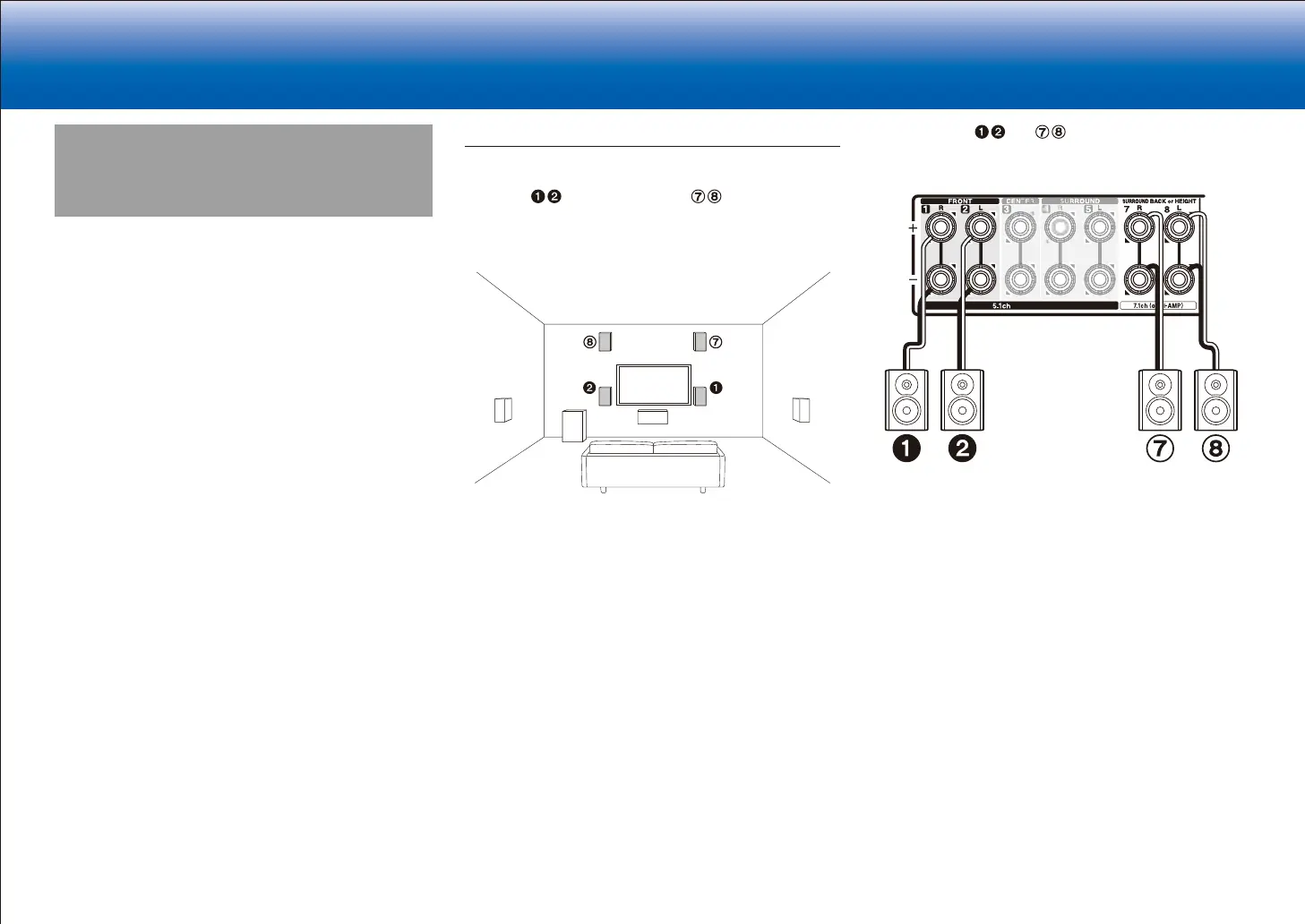

Install the Front speakers and Front High
speakers as shown in the figure to enjoy the Dolby Atmos
listening mode. Install the Front High speakers on the
upper part of the front wall.
1. Connect the and speakers as shown below
using the FRONT terminals and SURROUND BACK or
HEIGHT terminals.
2. Change the setting on the screen of "2. Speaker" -
"Configuration" in the Setup menu.
