Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (18)
b ZONE 2, OFF buttons (50)
c Remote control sensor (4)
d Display (8)
e LISTENING MODE buttons (28)
f DIMMER button (34)
g MEMORY button (27)
h TUNING MODE button (26)
i DISPLAY button (34)
j SETUP button (39)
k TUNING q/w, PRESET e/r (26), cursor and
ENTER buttons
l RETURN button
m MASTER VOLUME control (19)
n MUSIC OPTIMIZER button and indicator (35, 38)
o PHONES jack (36)
p TONE and Tone Level buttons (38)
q Input selector buttons (19)
r AUX INPUT AUDIO/VIDEO jacks (15)
s USB port (15)
t HYBRID STANDBY indicator (40)

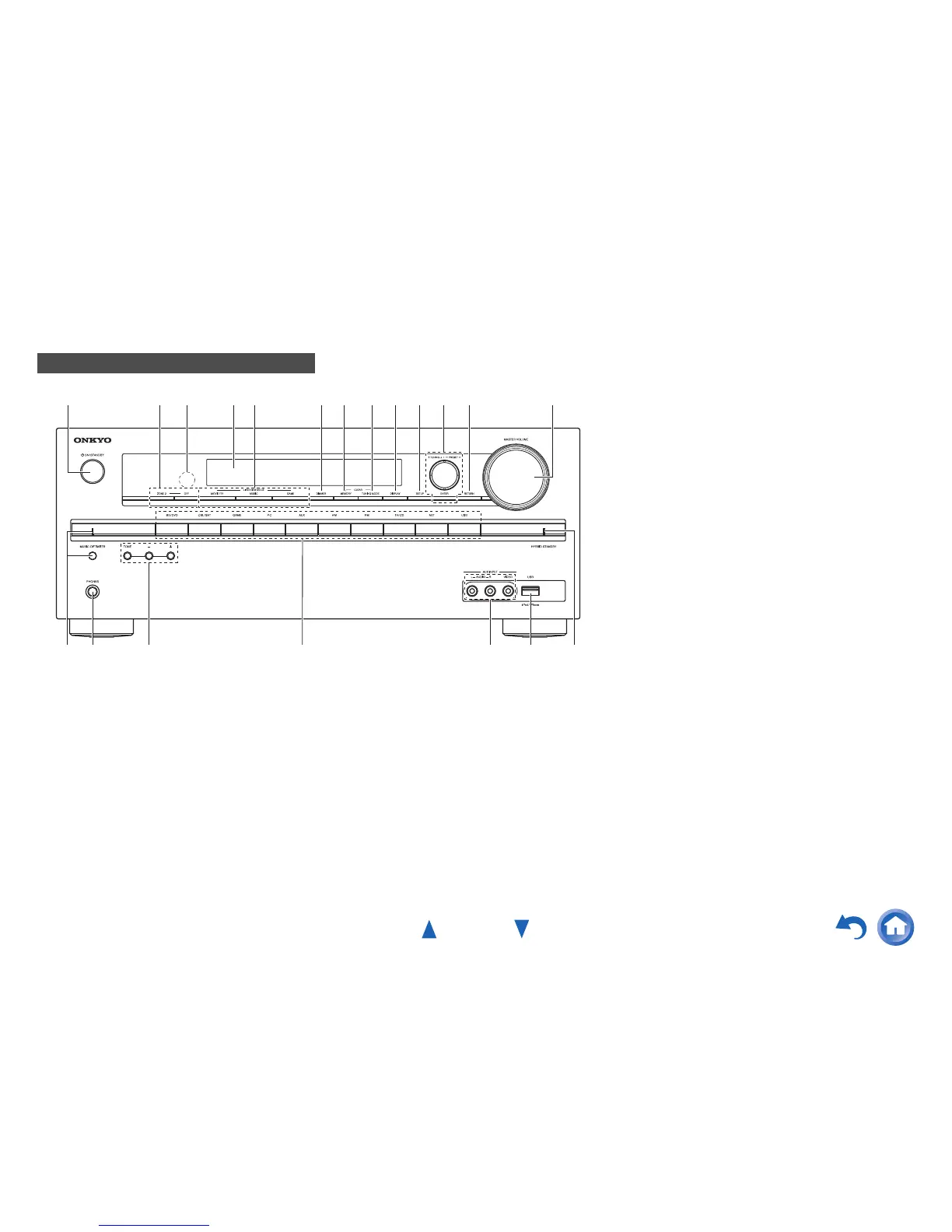

Front Panel
a
q
s
c e
d fg hijk l m
o p
b
t
r
n
To Next Page
