Connecting Your Components
• Refer to the instructions that came with the component you are connecting.
• Do not plug in the power cord until all other connections are complete.
• Do not bind audio cables with power cords and speaker cables.
Doing so may adversely affect the sound quality.
• To prevent interference, keep power cords and speaker cables as far away as
possible from the antennas.
• Push each plug in all the way to make a good connection
(loose connections can cause noise or malfunctions).

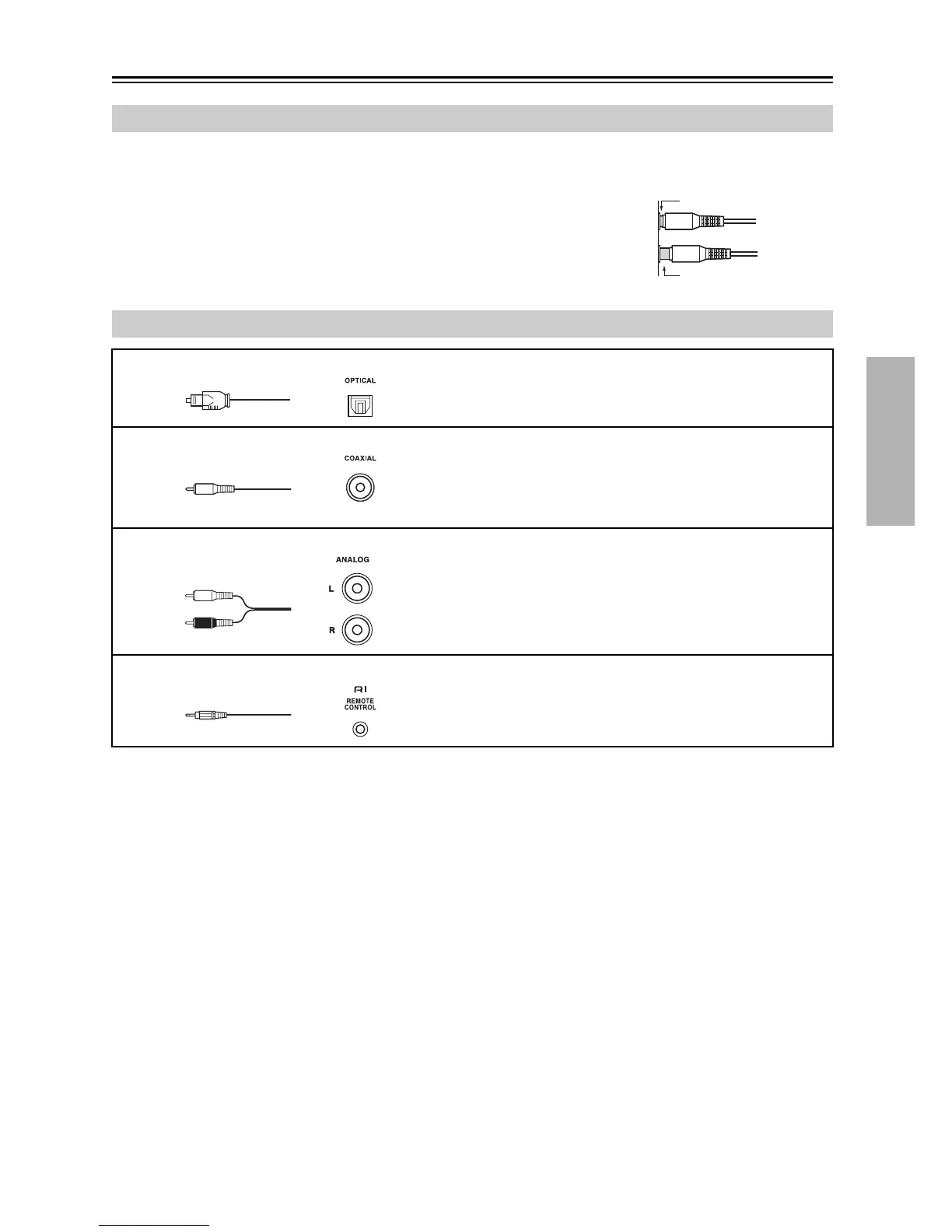

Before Making Any Connections
Cable and Jacks
Optical digital audio
Optical digital connections allow you to enjoy digital
sound such as PCM. The maximum sampling rate for
PCM output is 48kHz/16bit, 2ch.
Coaxial digital audio
Coaxial digital connections allow you to enjoy digital
sound such as PCM. The maximum sampling rate for
PCM output is 48kHz/16bit, 2ch.
Analog audio (RCA)
Analog audio connections (RCA) carry analog audio.
R
To use R (Remote Interactive), you need to connect
your Onkyo AV components with an
R cable.
Right!
Wrong!
Orange
Red
White
To Next Page
