Onkyo TX-930 User Manual

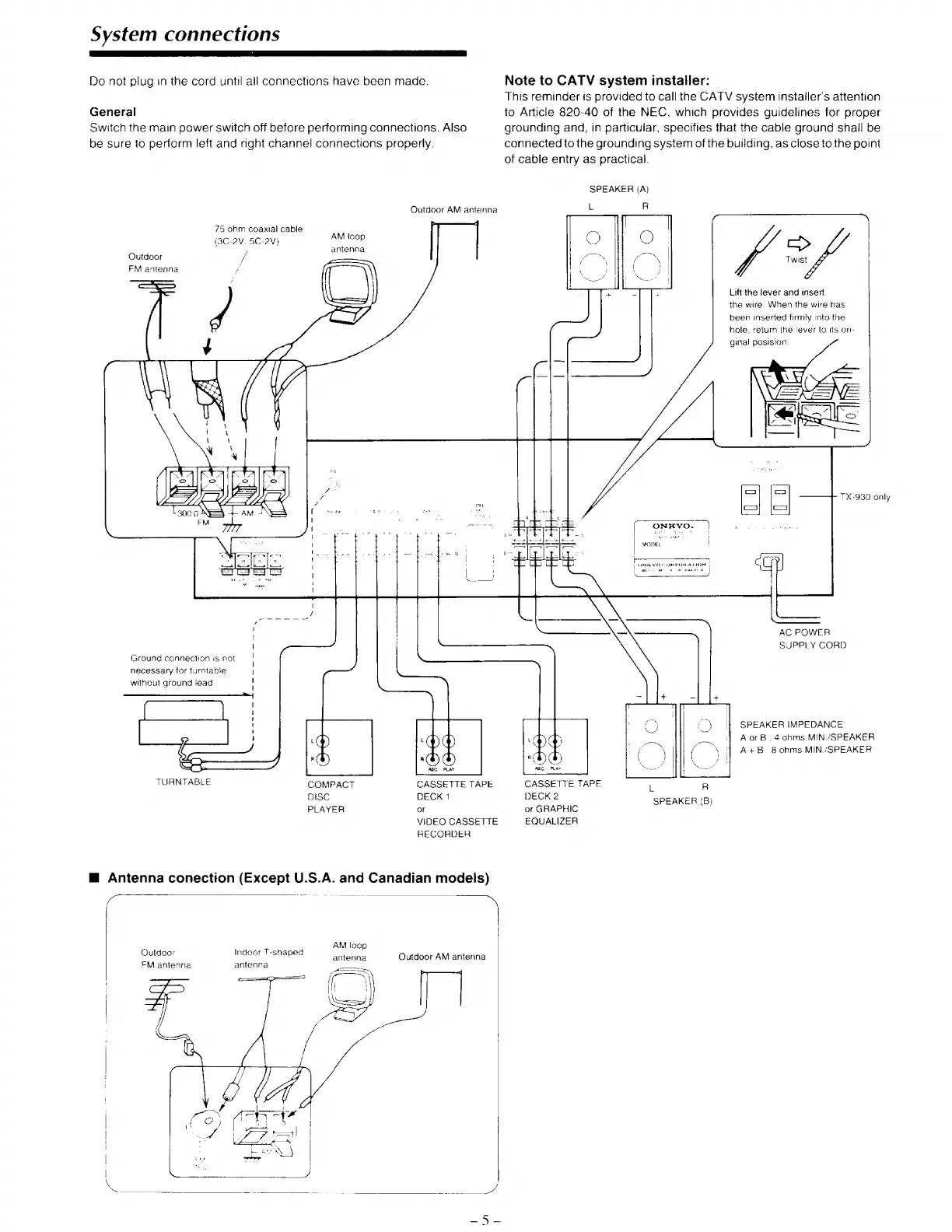

System connections
eae aa
Do not plug in the cord until all connections have been made. Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention
General to Article 820-40 of the NEC, which provides guidelines for proper
Switch the main power switch off before performing connections. Also grounding and, in particular, specifies that the cable ground shall be
be sure to perform left and right channel connections properly. connected to the grounding system of the building, as close to the point
of cable entry as practical.
SPEAKER (A)
Outdoor AM antenna
75 ohm coaxial cabie
(30-2V. 5C-2V) AM loop
P antenna
Outdoor /
FM antenna a
arr ‘ {
>>
Twist
Lift the lever and insert
the wire. When the wire has
been inserted firmly into the
hole, return the lever to its on-
ginal posision.
TX-930 only
[ ONKYO. |
| MODEL : |
|
a
ON KW OOH POR AT MOM |
MAS Oe ek Oe kd
—_———_—
AC POWER
SUPPLY CORD
Ground connection is not
necessary for turntable
without ground lead
SPEAKER IMPEDANCE:
AorB: 4 ahms MIN./SPEAKER
L
C
($)
HP®
A+B
8ohms
MIN/SPEAKER
eS °O O10
TURNTABLE COMPACT CASSETTE TAPE CASSETTE TAPE
DISC
DECK
1
DECK
2
SPEAKER
(B}
PLAYER or or GRAPHIC
VIDEO CASSETTE EQUALIZER
RECORDER
M@ Antenna conection (Except U.S.A. and Canadian models)
‘ — _
1
AM loop
Qutdoor
Indoor
T-shaped
antenna
Outdoor
AM
antenna
FM antenna antenna
