Onkyo TX-RZ800 User Manual

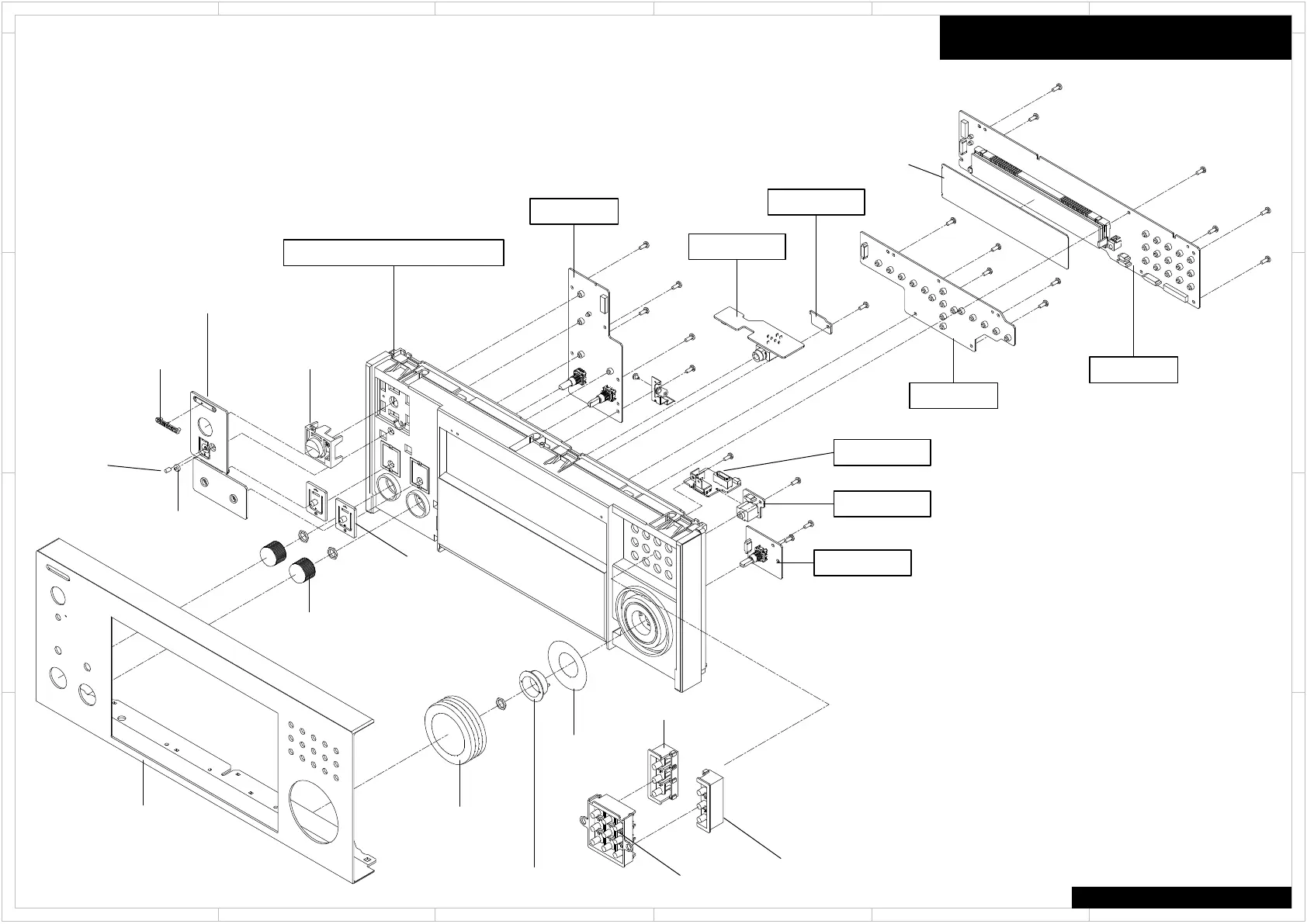

Exploded View
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6
TX-RZ800
Front Section 1
A412
BASW-1812
BASW-1811
BAETC-1828
BAETC-1830
BAETC-1814
BAETC-1813
BAHDM-1823
BADIS-1810
A442
A445
A441
A480(A481)
x 2pcs.
A443
x 2pcs.
Refer to Front Section 2
A455
A482
A440
A444
A426
A427
A446
A448
A447

Onkyo TX-RZ800 Specifications

General

Receiver type	Surround
Input sensitivity	300 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Dynamic power per channel (3 Ohm)	300 W
Dynamic power per channel (4 Ohm)	250 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	185 W
Display	-
Product color	Silver
Damping factor	40
Apple docking compatibility	Not supported
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Card reader integrated	No
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	90 W
Package depth	521 mm
Package width	582 mm
Package weight	20500 g
THX-certified	THX Select2 Plus
Audio formats supported	AAC, Vorbis, WAV, WMA, OGG, FLAC, MP3
HDMI in	8
Audio (L/R) in	9
USB ports quantity	1
Digital audio coaxial in	2
Digital audio optical in	3

Weight and Dimensions

Depth	433.5 mm
Width	435 mm
Height	201.5 mm
Weight	17000 g
