36
En
Note
• When an HDMI IN is assigned to an input selector in “HDMI
Input” (➔ 35), this input assignment is automatically set to the
same HDMI IN. And in addition to the usual inputs (e.g.,
COAX1, COAX2, etc.), you can also select HDMI inputs.
• Available sampling rate for PCM signals from a digital input
(optical and coaxial) is 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.
• If you connect a component (such as UP-A1 Dock that seated
iPod) to the UNIVERSAL PORT jack, you cannot assign any
input to PORT selector.

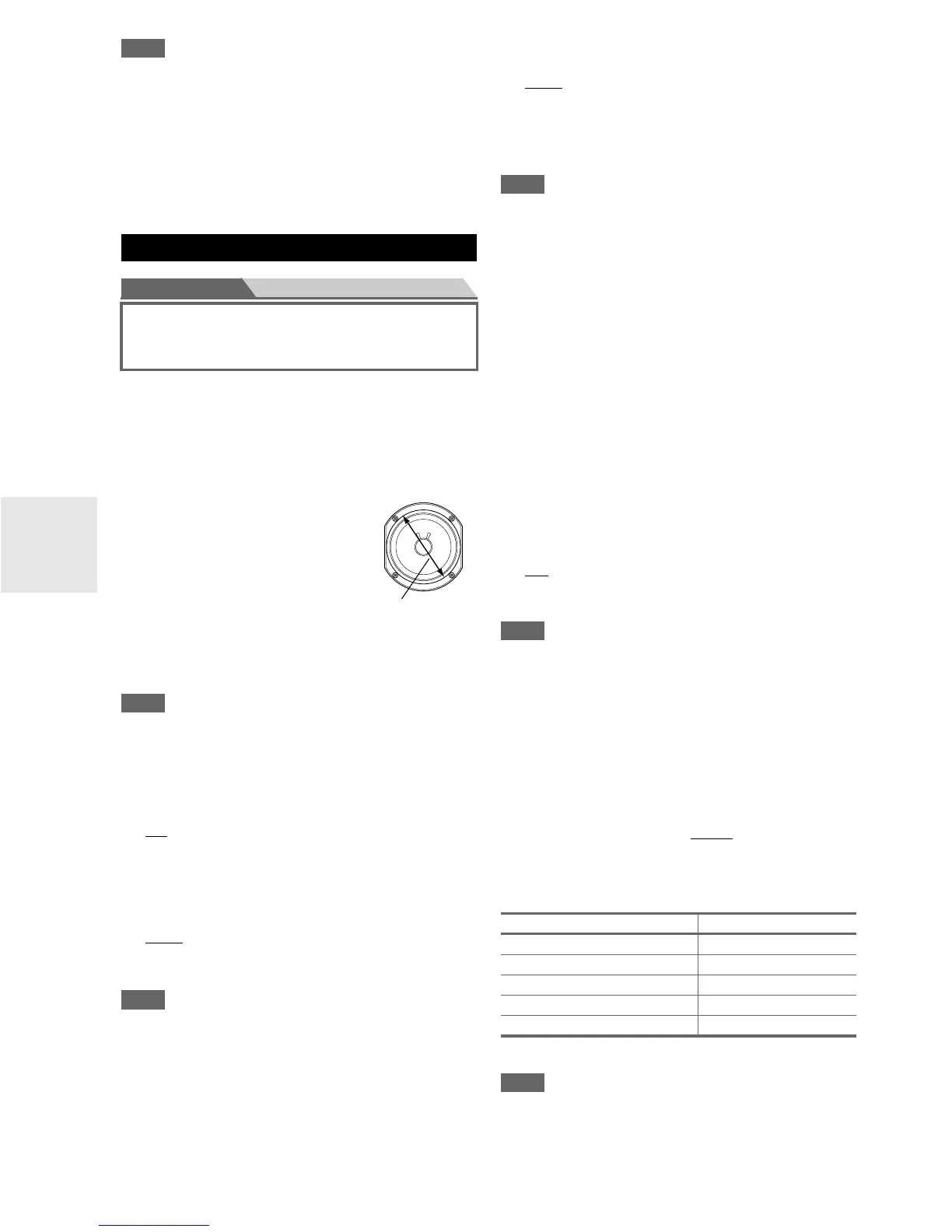

Menu Sp Config
Here you can check the settings made by Audyssey 2EQ
Room Correction and Speaker Setup function, or set them
manually, which is useful if you change one of the con-
nected speakers after using Audyssey 2EQ Room Correc-
tion and Speaker Setup function.
This section explains how to specify
which speakers are connected and their
sizes.
For speakers with a cone diameter
larger than 6-1/2 inches (16 cm), spec-
ify Large (full band). For those with a
smaller diameter, specify Small
(default crossover 100Hz).
The crossover frequency can be changed in the “Crossover
(Crossover Frequency)” (➔ 36).
Note
These settings are disabled when:
• a pair of headphones is connected, or
•the “Audio TV OUT” setting is set to “On” (➔ 41) and an input
selector other than HDMI is selected.
■ Subwoofer
` Yes
:
Select if a subwoofer is connected.
` No:
Select if no subwoofer is connected.
■ Front
` Small:
` Large:
Select based on the cone diameter.
Note
•If the “Subwoofer” setting is set to “No”, this setting is fixed at
“Large” and does not appear.
■ Center
*1
, Surround
*1
, Front High
*1*2*4*5*7*8
,
SurrBack
*1*2*3*4*6*8
` Small:
` Large:
Select based on the cone diameter.
` None
*7
:
Select if no speaker is connected.
Note
*1
If the “Front” setting is set to “Small”, the “Large” option
cannot be selected.
*2
If the “Surround” setting is set to “None”, this setting cannot
be selected.
*3
If the “SurrBk/FrontHigh” setting is set to “Front High”
(➔ 40), this setting cannot be selected.
*4
If the “Speakers Type” setting is set to “Bi-AMP” (➔ 40),
this setting cannot be selected.
*5
If the “Front High/Zone2” setting is set to “Zone2” and
“SurrBk/FrontHigh” setting is set to “SurrBack” (➔ 40),
this setting cannot be selected.
*6
If the “Surround” setting is set to “Small”, the “Large”
option cannot be selected.
*7
For “Front High”, the default is “None”.
*8
If the “Front High/Zone2” setting is set to “Zone2”, this set-
ting cannot be selected.
■ SurrBack Ch
` 1ch:
Select if only one surround back speaker is con-
nected.
` 2ch
:
Select if two (left and right) surround back speakers
are connected.
Note
•If the “SurrBack” setting is set to “None”, this setting cannot be
selected.
■ Crossover (Crossover Frequency)
This setting is advantageous for the speakers that you
specified as “Small” in the “Sp Config (Speaker Configura-
tion)”
(➔ 36). To get the best bass performance from
your speaker system, you need to set the crossover fre-
quency according to the size and frequency response of
your speakers.
` 40Hz, 50Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz,
200Hz:
Use the diameter of the smallest speaker in your system
when choosing the crossover frequency.
*
Choose the setting suitable for the speaker.
Note
• For a more accurate setting, look up the frequency response in
the manuals supplied with your speakers and set accordingly.
• Choose a higher crossover frequency if you want more sound
from your subwoofer.
Sp Config (Speaker Configuration)
Some of the settings in this section are set automatically
by Audyssey 2EQ
®
Room Correction and Speaker
Setup function (➔ 23).
Cone diameter
Speaker cone diameter Crossover frequency
Over 8 in. (20 cm)
40/50/60 Hz
*
6-1/2 to 8 in. (16 to 20 cm) 80 Hz
5-1/4 to 6-1/2 in. (13 to 16 cm) 100 Hz
3-1/2 to 5-1/4 in. (9 to 13 cm) 120 Hz
Under 3-1/2 in. (9 cm)
150/200 Hz
*
