Front & Rear Panels
North American models
European and Asian models
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a ON/STANDBY button (➔ 20)
b STANDBY indicator (➔ 20)
c HDMI THRU indicator (➔ 42)
d ZONE 2 indicator (➔ 47)
e Remote control sensor (➔ 4)
f ZONE 2, OFF, ZONE 2 LEVEL/TONE LEVEL
and TONE buttons (➔ 45, 47 to 48)
g Display (➔ 8)
h LISTENING MODE buttons (➔ 29)
i DIMMER button (North American models) (➔ 21)
j MEMORY button (➔ 26)
k TUNING MODE button (➔ 25)
l DISPLAY button (➔ 21)
m SETUP button (➔ 34)
n TUNING, PRESET (➔ 25 to 26), arrow and
ENTER buttons
o RETURN button
p MASTER VOLUME control (➔ 21)
q MUSIC OPTIMIZER button (North American
models) (➔ 21, 43)
r PHONES jack (➔ 22)
s Input selector buttons (➔ 21)
t AUX INPUT LINE IN jack (➔ 17)
u AUX INPUT VIDEO jack (➔ 17)
v AUX INPUT AUDIO jacks (➔ 17)
w SETUP MIC jack (➔ 23)
x PURE AUDIO button and indicator (European and
Asian models) (➔ 29)
y RT/PTY/TP button (European and Asian models)
(➔ 26)

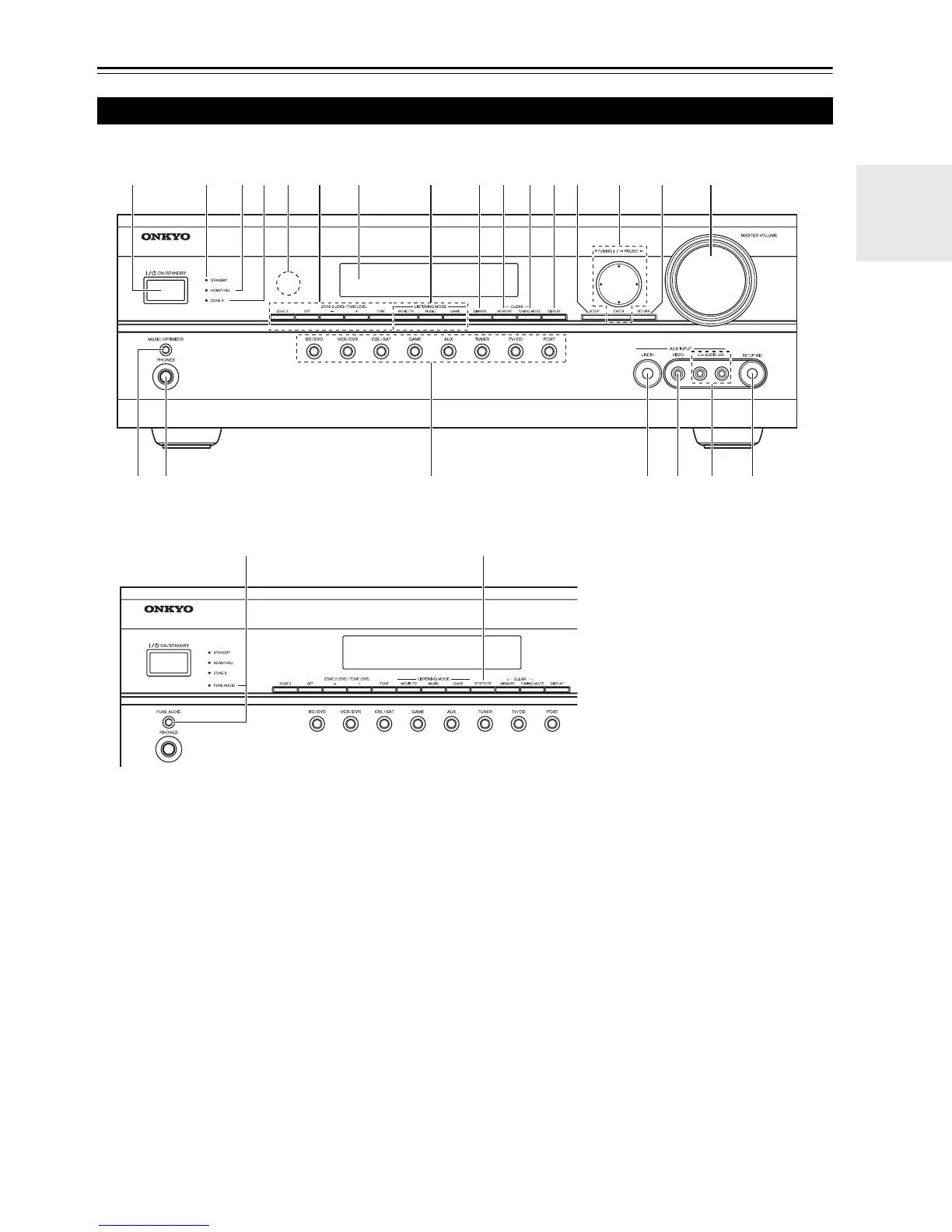

Front Panel
a
stuwv
bcde fhg ijklmno p
r
q
x y

Onkyo TX-SR508 Specifications

General

Impedance	4 Ω
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Package depth	537 mm
Package width	416 mm
Package height	268 mm
Dimensions (WxDxH)	435 x 151 mm
Power requirements	AC 230 V, 50 Hz
Product color	Black
Power consumption (typical)	450 W
Package weight	12000 g

Weight and Dimensions

Weight	9400 g
