✔: Available buttons
Models sold are different depending on the region.
Note
• With some iPod models, generations and RI Docks, certain buttons may not work as expected.
• For detailed operation of the iPod, please refer to the instruction manual of RI Dock.
*1
This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Your iPod may not respond the first time you press this
button, in which case you should press it again.
This is because the remote controller transmits the On and Standby commands alternately, so if your iPod is already on, it will
remain on when the remote controller transmits an On command.
Similarly, if your iPod is already off, it will remain off when the remote controller transmits an Off command.
*2
Press DISPLAY to change the following modes:
Standard mode
Nothing is displayed on your TV and you navigate and select your contents by using your iPod models display.
Only this mode can playback the video.
Extended mode
Playlists (artists, albums, songs, and so on) are displayed on your TV, and you can navigate and select your music while looking at
your TV.
*3
In Extended mode (see
*2
), PLAYLIST is used as the page jump button.
With the page modes, you can quickly locate your favorite songs even when your song lists, artist lists, and so on are very long.
*4
Resume mode
With the Resume function, you can resume playback of the song that was playing when you removed your iPod from the RI Dock or
changed the OSD mode to Off.
*5
Operation can be performed if you connect ND-S1 via u inputting the RI cable.
*6
TOP MENU works as a Mode button when used with a DS-A2 RI Dock.
*7
DISPLAY turns on backlight for 30 seconds.
Note
• In Extended mode (see
*2
), the playback will be continued even if the AV receiver is turned off.
• In Extended mode (see
*2
), you cannot operate your iPod directly.
• In Extended mode (see
*2
), it may take some time to acquire the contents.
• In Extended mode (see
*2
), video contents can not display on your TV.
b
c
a
f
d
e
g
i
h
k
j
Press the appropriate REMOTE
MODE first.
UP-A1 Dock ND-S1 u Dock
a ON/STANDBY 9
✔
✔
*1
b
TOP MENU ✔
*5
✔
*6
c q/w/e/r ENTER
✔
✔
*5
✔
PLAYLIST e/r
✔
*3
✔✔
d 1, 3, 2, 5, 4,
7, 6
✔✔✔
e
REPEAT ✔✔✔
RANDOM ✔✔✔
PLAY MODE
✔
*4
✔
*5
✔
*4
f
DISPLAY
*7
✔
*2
✔
*5
✔
g
MUTING ✔
✔
*5
✔
h
ALBUM +/– ✔✔✔
i VOL q/w
✔
✔
*5
✔
j
MENU
✔
*5
✔
k
RETURN ✔

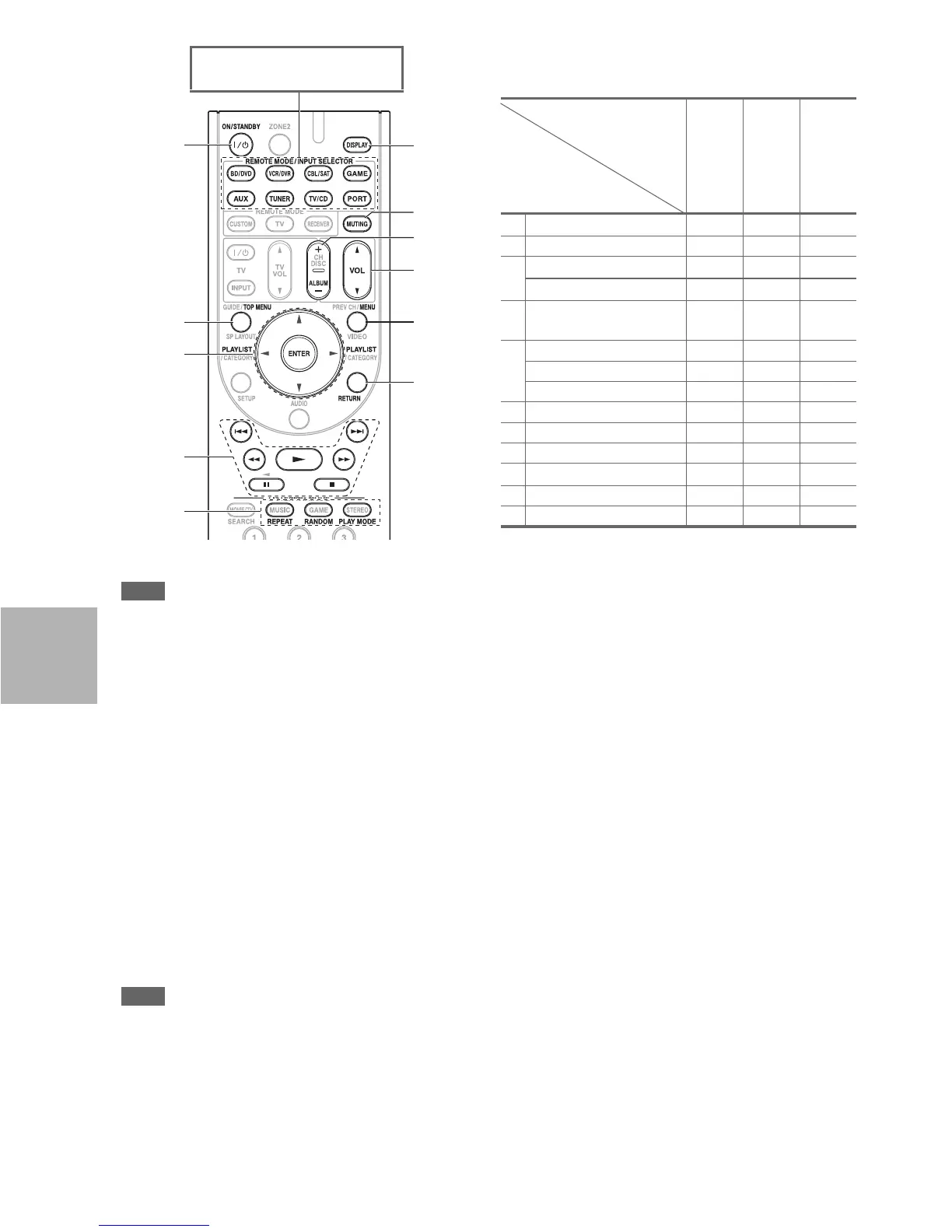

Onkyo Dock
Buttons

Onkyo TX-SR508 Specifications

General

Impedance	4 Ω
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Package depth	537 mm
Package width	416 mm
Package height	268 mm
Dimensions (WxDxH)	435 x 151 mm
Power requirements	AC 230 V, 50 Hz
Product color	Black
Power consumption (typical)	450 W
Package weight	12000 g

Weight and Dimensions

Weight	9400 g
